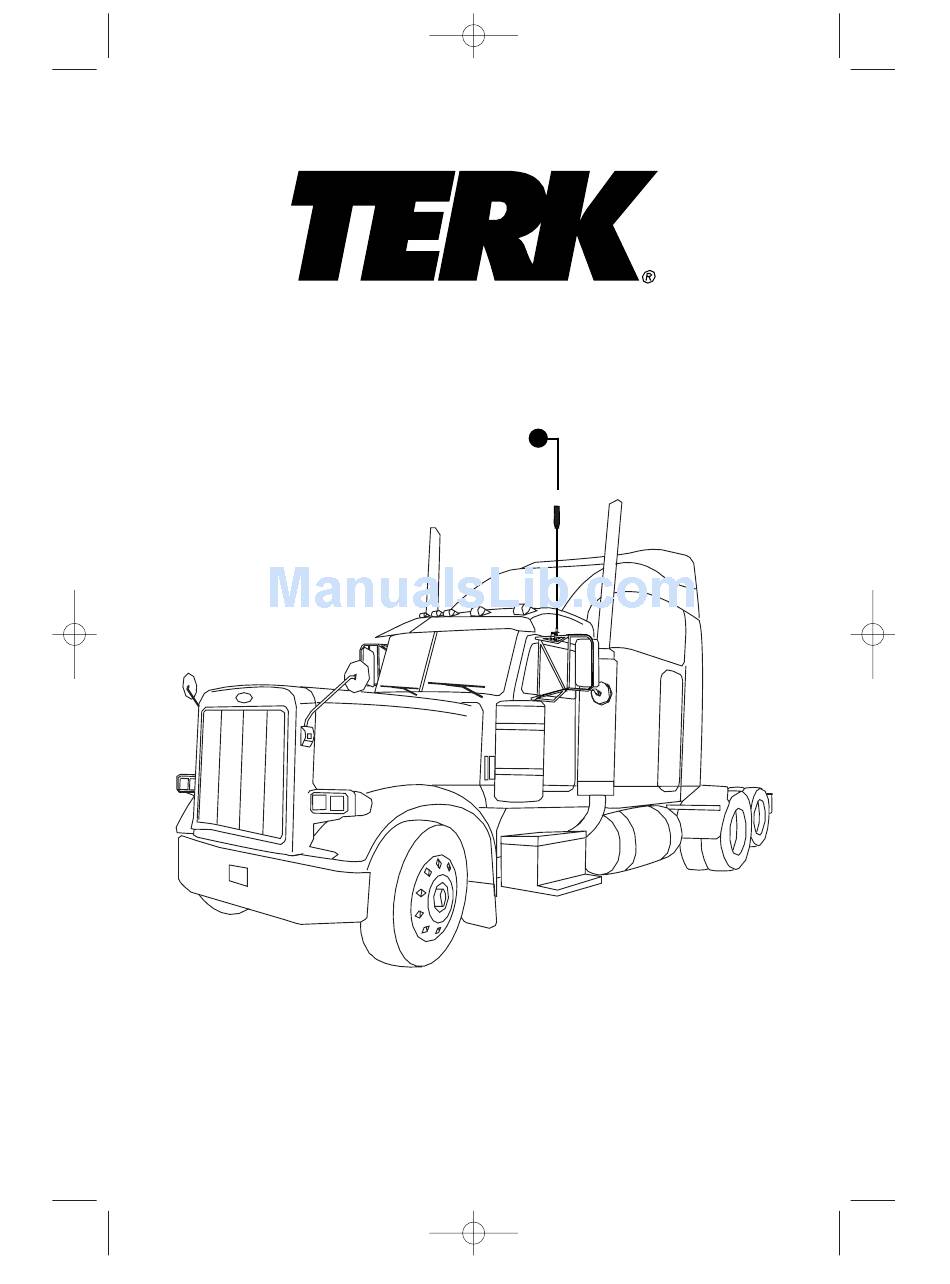

  • Page 1 SR4X-MM OM 5/14/02 11:38 AM Page 1 O W N E R ’ S M A N U A L READ THIS FIRST! SR4X-MM LONG-HAUL TRUCK AND RV MIRROR-MOUNT SATELLITE RADIO ANTENNA...
  • Page 2: Table Of Contents

    SR4X-MM OM 5/14/02 11:38 AM Table Of Contents About Installation ............2 Introduction .
  • Page 3: Introduction

    SR4X-MM OM 5/14/02 11:38 AM Page 3 SR4X-MM Mirror-Mount Owner’s Manual Introduction The TERK SR4X-MM Mirror-Mount Satellite Radio Antenna is a high-performance antenna designed specifically for XM Satellite Radio reception on long-haul trucks and RVs (recreational vehicles). It has dual-mode functionality, receiving simultaneous signals from satellites and terrestrial repeaters, to ensure continuous reception.
  • Page 4: Applications

    SR4X-MM OM 5/14/02 11:38 AM Page 4 Applications The TERK SR4X-MM Mirror-Mount Satellite Radio Antenna is designed to be installed on either the driver- or passenger-side mirror (or a rear grab bar) of a long-haul truck or RV. Moreover, it can be mounted on a vertical or horizontal bar, as shown in Figure 1.
  • Page 5: Installation

    SR4X-MM OM 5/14/02 11:38 AM Installation Parts for TERK SR4X-MM Mirror-Mount Antenna (4) 1⁄4"-20 x 2" Hex-Head Bolts (4) 1⁄4"-20 Ext. Tooth Lock Washers (4) 1⁄4" Flat Washers (4) 1⁄4"-20 Hex Nuts (1) Right-Angle Bracket (1) Connecting Bracket Figure 2. Verify that your TERK SR4X-MM Mirror-Mount package includes the above items. NOTE: All metal mounting hardware is stainless steel.
  • Page 6: Installing The Terk Sr4X-Mm Mirror-Mount Antenna

    SR4X-MM OM 5/14/02 11:38 AM Installation Installation Precautions and Tips (continued) • As you plan the cable route, avoid running cables through components that may cause excessive chafing. Doing so may erode the jacket and break signal continuity. Also, avoid kinking, pinching, excessive bending, or twisting a cable during a run.
  • Page 7 SR4X-MM OM 5/14/02 11:38 AM Cable Through Existing Access Hole Assembled TERK SR4X-MM Mirror-Mount Satellite Radio Antenna Existing Access Hole (grommet not supplied) Figure 4. Examples of an installed TERK SR4X-MM Mirror-Mount Antenna. Green Case (Terrestrial) ❶ ❷ Clip ❸ Assembled FAKRA TER Cable Figure 5.
  • Page 8: Use And Care

    SR4X-MM OM 5/14/02 11:38 AM Installation Installing The TERK SR4X-MM Mirror-Mount Antenna (continued) XM Receiver (Tuner) Figure 6. Wiring diagram shows antenna connections to an XM receiver. 6. Turn on the XM system and tune the radio to channel one (i.e., the preview channel) to verify that the antenna is properly installed.
  • Page 9: Specifications

    SR4X-MM OM 5/14/02 11:38 AM Specifications Electrical Specifications Passive Satellite and Terrestrial Antenna Element – Frequency: Gain – Terrestrial: Satellite: Bandwidth: Impedance: Vertical Plane Field of View – Terrestrial: Satellite: Horizontal Plane Field of View: Polarization – Terrestrial: Satellite: LNA for Both Satellite and Terrestrial Signals – Gain: Noise Figure: Dc Bias:...
  • Page 10: Other Specifications

    TERK Approved: TERK QA: TERK Technologies strives to maintain and exceed the highest consumer standards. Due to these ongoing efforts, modifications may be made from time to time to existing products without any prior notice. Specifications and appearance may differ from those listed or shown in this manual.
  • Page 11: Limited Warranty

    SR4X-MM Mirror-Mount Owner’s Manual Limited Warranty TERK Technologies Corp. (Terk) warrants this product against defects in materials or workmanship for 1 year from the date of purchase. During this warranty period this product will be replaced with- out charge. This warranty does not cover any damage due to act of God, commercial use, accident, misuse, abuse or negligence.
  • Page 12 11:38 AM Page 12 TERK For Technical Support: 1.800.942.TERK (8375) Visit our web site for information about our full product line TERK is a registered trademark. The TERK logo is a trademark of TERK Technologies Corp. ©2002 Terk Technologies Corp. 63P002...
