SunSetter EasyShade Vertical Roll up Manual

Tools Needed:

Electric Drill
1/8" Drill Bit
Pencil
Phillips Screwdriver
Tape Measure
Level

Parts Supplied:

Shade Assembly
Mounting Brackets - (2) for 4', 6' and 8' Models and (3) for the 10' Model
Crank Wand
(2) Bungee Cords
(4) Bungee Brackets
Crank Loop and Screw (4mm x 20mm Machine Screw)
(4) #8 x 1-1/2" Flat-Head Phillips Screws
(4 or 6) #8 x 1-1/2" Round-Head Phillips Screws - (4) for 4', 6' and 8'
Models and (6) for the 10' Models,
1/8" Allen Wrench - for securing mounting bracket set screws.
WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN PERSONAL
INJURY! PLEASE READ THESE INSTRUCTIONS IN ITS ENTIRETY BEFORE ATTEMPTING TO
COMPLETE THIS PROCESS.
PLEASE NOTE THAT LEFT AND RIGHT REFERENCES ARE AS YOU FACE YOUR MOUNTING
LOCATION.

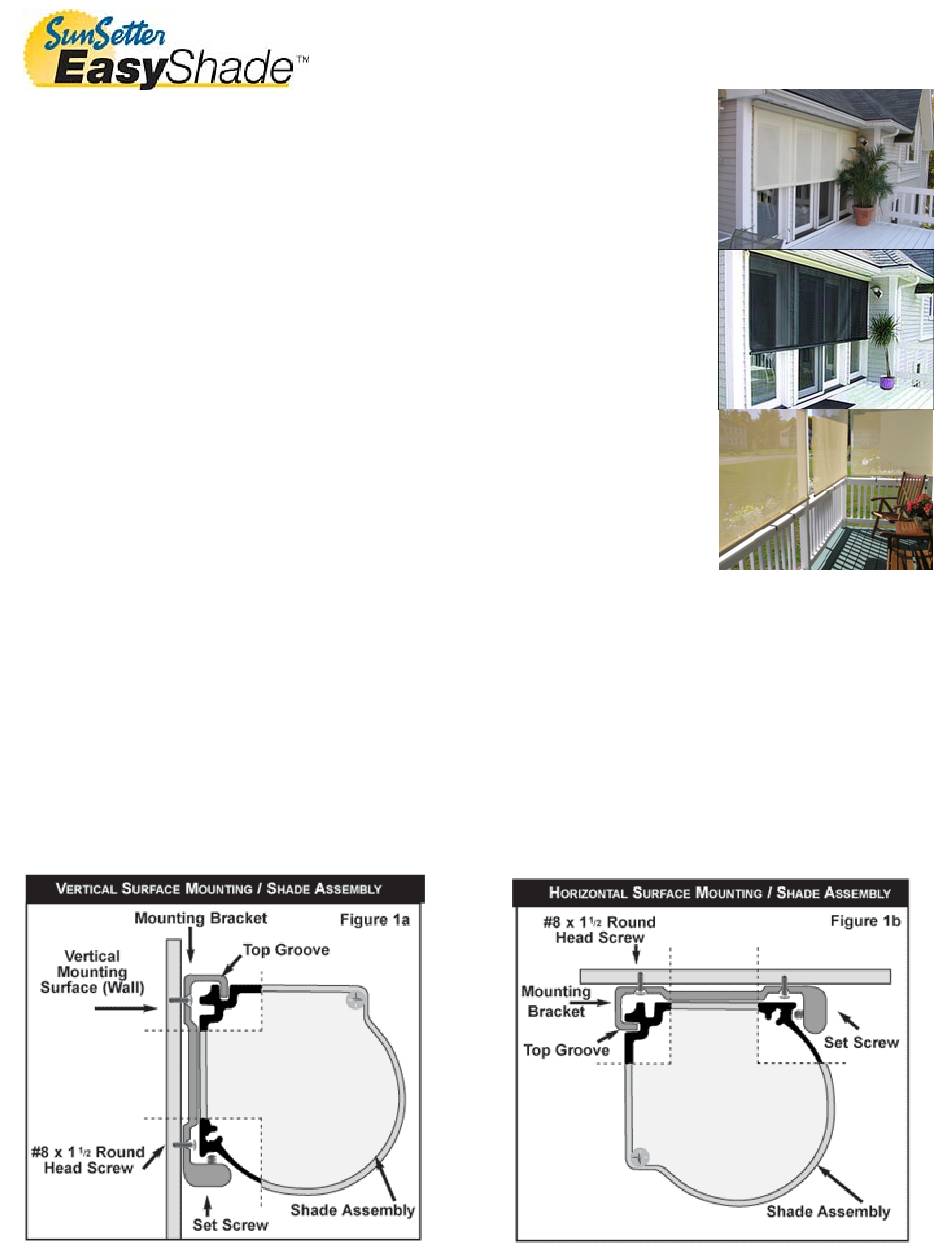

The SunSetter EasyShade can be installed with the mounting brackets on a wall (vertical surface) see
Figure 1a or on the underside of a structure (horizontal surface) see Figure 1b. For the 4', 6' and 8'
models, each of the brackets should be installed so that it is no more than 10" from the end of the
shade assembly. When mounting a 10' Model, a mounting bracket should be installed at each end of
the shade assembly so that it is no more than 10" from the end of the shade. The third mounting
bracket should be installed at the mid point between the two end brackets.
EasyShade™ Vertical Roll up
Manual Solar Shade Screen Kits
