Overview
Please note that this manual may be updated without prior notice. If you
are reading this manual in PDF format, please note that you can access
it online at
EcoFlow Support
updates.

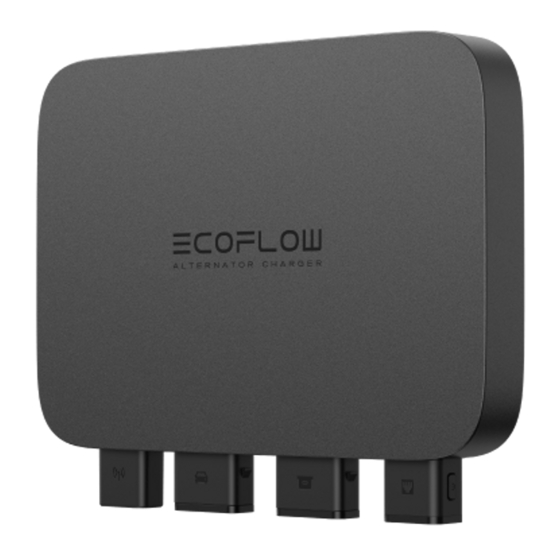

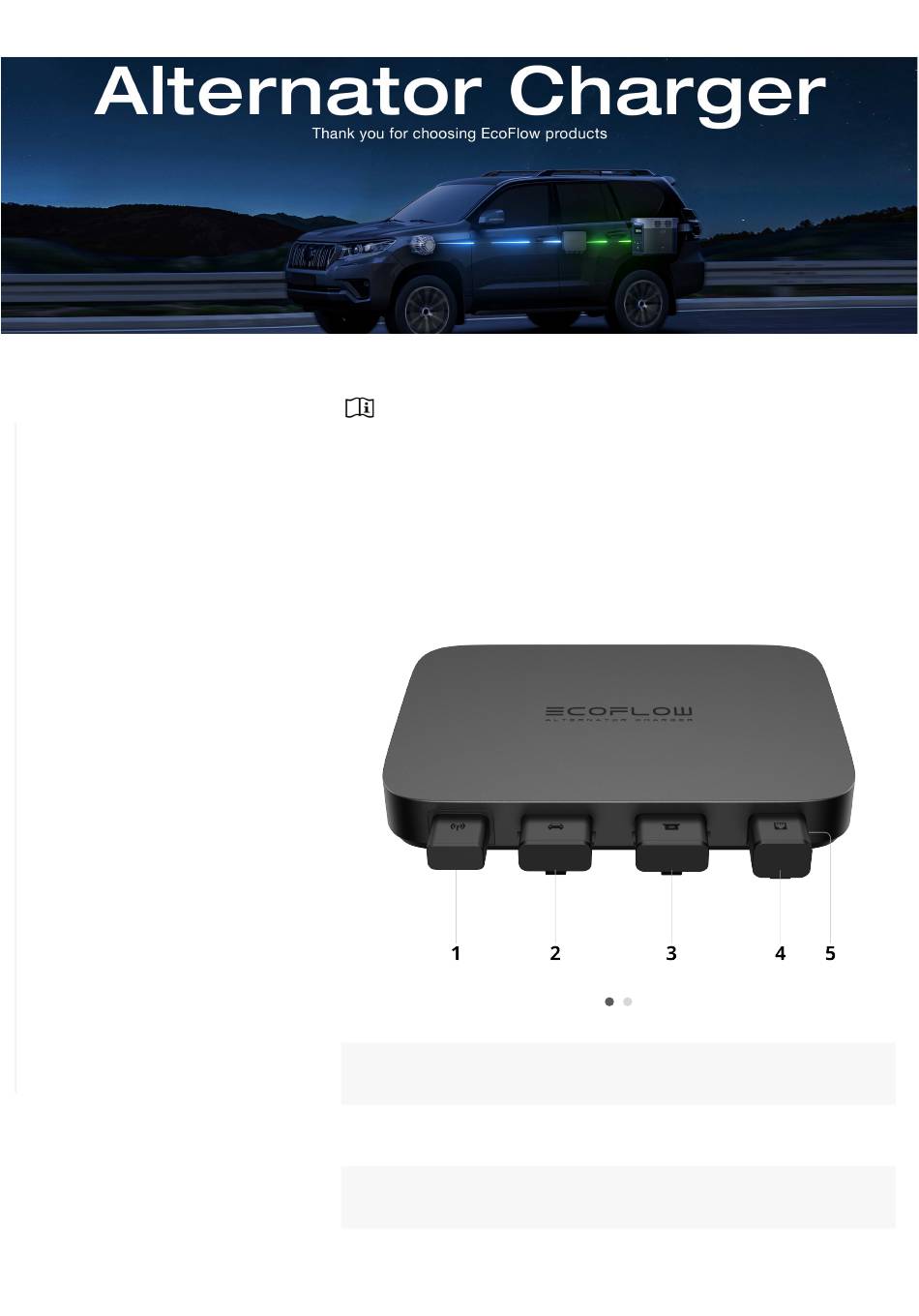

Overview
1 Antenna
2 Vehicle Battery Port
Portable Power
3
Station Port
COM
Communication Port
4
for a better experience and the latest
Communicates with EcoFlow app via Bluetooth or Wi-
Fi.
Connected to the vehicle starter battery or RV house
battery via the Input Cable.
Connected to the portable power station or extra
battery via the XT150 Output Cable.
Preset port. Stay tuned.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EcoFlow EF-FC-301-1
Summary of Contents for EcoFlow EF-FC-301-1
-
Page 1: Table Of Contents
How to Unplug Cables Troubleshooting Maintenance Cable Replacement What's in the Box Specifications Communicates with EcoFlow app via Bluetooth or Wi- 1 Antenna Safety Instructions Connected to the vehicle starter battery or RV house 2 Vehicle Battery Port battery via the Input Cable. -
Page 2: Led Indication
Reverse Charge Mode in standby. Solid Error alarm. Check app interfaces for details. Yellow Solid Unbinding from EcoFlow account. Breathing Binding to EcoFlow account. Wire Up Your Charger It's recommended that the wiring is performed by a professional. Wear personal protective equipment (including protective goggles and gloves) during wiring and installation. -
Page 3: Compatibility
Vehicle Starter Battery or RV House Portable Power Station or Extra Battery Battery 1. Connect the ring terminal of the Fuse Cable to the positive (+) terminal on the vehicle starter battery or RV house battery. 2. As shown in the illustration, connect the other end of the Fuse Cable and the positive (red) terminal of the Input Cable to a torque of 3 to 4 N*m. -
Page 4: Environmental Requirements
The 800W Alternator Charger is connected to the extra battery port (XT150) of the EcoFlow portable power station or extra battery via the XT150 Output Cable. Please make sure your EcoFlow portable power station or extra battery has a port of this kind. - Page 5 Do not flush mount the product to ensure proper ventilation. Method 1 You can use the included self-tapping screws to install the charger on the body or frame of your vehicle. Steps 1. Use the installation board to locate the drilling positions and mark them with a marker.
-
Page 6: Getting Started
Method 2 You can use the included M6 bolts and nuts to install the charger on a board. Steps 1. Use the installation board to locate the drilling positions and mark them with a marker. 2. Drill 2 holes of 6 mm diameter. 3. -
Page 7: Bind Your Charger
1. Download the EcoFlow App at: https://download.ecoflow.com/app 2. Visit the EcoFlow app and log into your EcoFlow account. If you don't have an account, create one first. 3. Tap the "Add Device" button or the "+" icon in the top right corner to search for new EcoFlow devices. -
Page 8: How To Switch Mode And State
1. Power off the portable power station or extra battery. 2. Long press the Power Button for 3s to power off the charger. 3. Wait for several seconds and then long press the Power Button for 5s. When the LED indicator turns solid yellow, unbinding begins. When the indicator turns into another color, unbinding is complete. -
Page 9: Charge Mode
To switch between working or standby state, tap the toggle button. Charge Mode Power Flow: Alternator → Vehicle Starter Battery or RV House Battery → Alternator Charger → Portable Power Station or Extra Battery Maximum Power: 800W With the portable power station or extra battery powered on, when your vehicle is in motion, the charger can use the alternator's redundant power to charge the portable power station or extra battery. -
Page 10: Battery Maintenance Mode
For your driving safety, in Charge Mode, if the vehicle is in motion, it is recommended not to change the operating mode. Battery Maintenance Mode Power Flow: Portable Power Station or Extra Battery → Alternator Charger → Vehicle Starter Battery Default Maximum Power: 100W After powering on the portable power station or extra battery, you can use the... -
Page 11: How To Unplug Cables
With the portable power station or extra battery powered on, the charger will charge the vehicle starter battery or RV house battery with a maximum power of 800W. How to Unplug Cables... -
Page 12: Troubleshooting
To unplug the Input Cable or Output Cable, follow these steps: 1. Power off the portable power station or extra battery. 2. Power off the charger. 3. Use the included cable puller to unplug the cable. Troubleshooting LED indicator is red. Check app interfaces for error details. -
Page 13: Cable Replacement
1. To replace the Output Cable, purchase new cables from EcoFlow’s official sales channels. 2. To replace the Input Cable, Fuse Cable, or Fuse, consult EcoFlow’s official customer service for purchase suggestions and ask a professional for replacement. -
Page 14: Specifications
M6 Bolt×2 i. M6 Nut ×2 Others j. Cable Puller k. Quick Start Guide & Safety Instructions & Warranty Card Specifications Model EF-FC-301-1 Net Weight Approximately 2.3 kg Dimensions 242×194×35 mm (W × D × H) (9.5×7.6×1.4 inch) Frequency: 2412MHz-2472MHz Wi-Fi Maximum output power: 18.22dBm... -
Page 15: Safety Instructions
Safety Instructions Wiring and Installation 1. It's recommended that the wiring is performed by a professional. 2. Wear personal protective equipment (including protective goggles and gloves) during wiring and installation. 3. It’s recommended to complete wiring before starting the vehicle and turning on the charger. - Page 16 3. Avoid prolonged contact with the charger when it is in use. 4. Use dry, soft, and clean cloth or paper towels to clean the charger. 5. Contact EcoFlow’s official customer service if the charger needs repair. 6. Do not disassemble the charger yourself. Otherwise, the charger may be damaged and the warranty will be voided.
