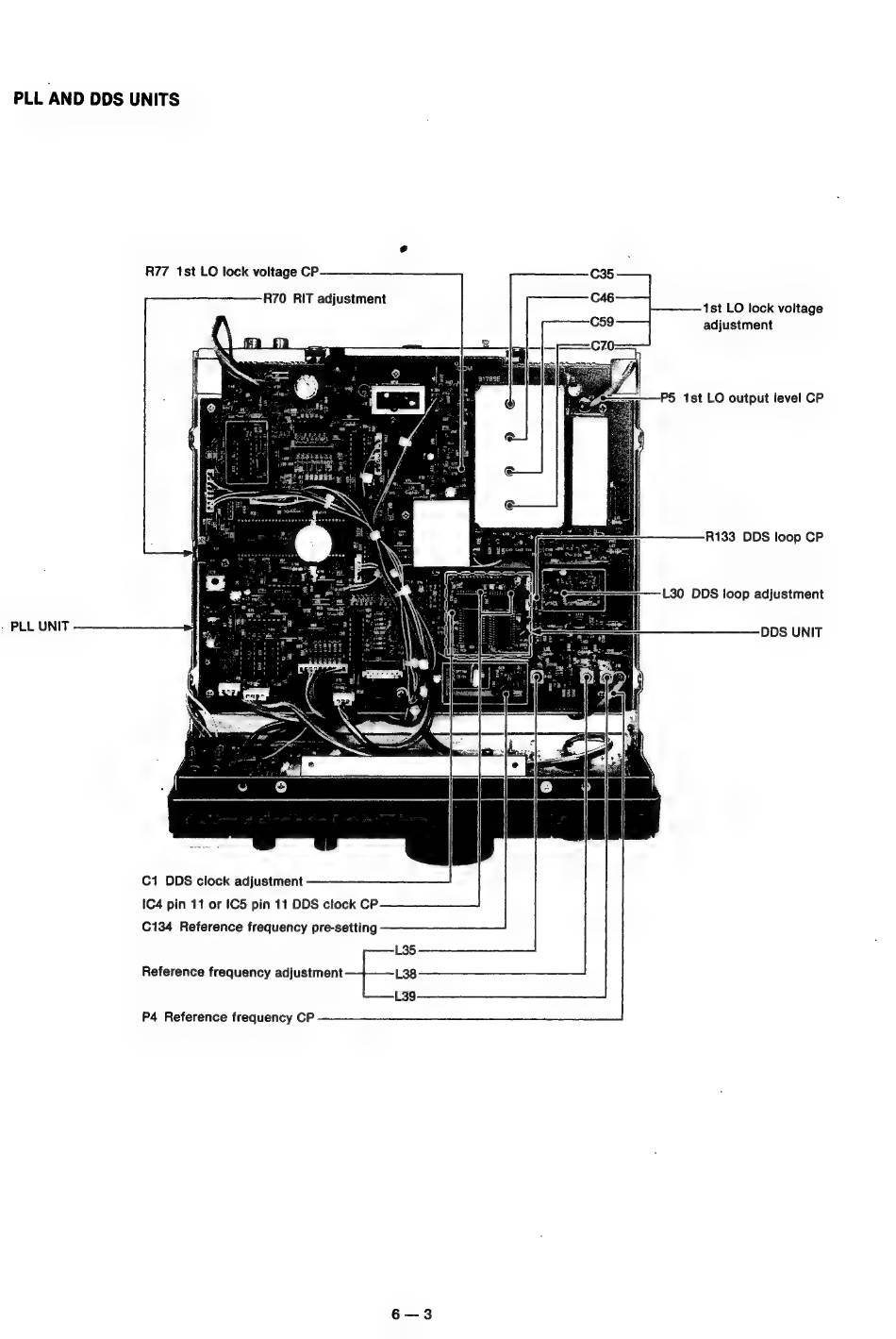

PLL AND DDS UNITS
R77 1st LO lock voltage CP
R70 RIT adjustment
1st LO lock voltage
adjustment
R133
DDS loop CP
EN
"
DDS loop adjustment
C1 DDS clock adjustment
IC4 pin 11 or IC5 pin 11 DDS clock CP
C134 Reference frequency pre-setting
L35
Reference frequency sime] — os
L39
P4 Reference frequency CP
