Norwood Yieldtrac 1200 Series Operator's Manual

Planter bar
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

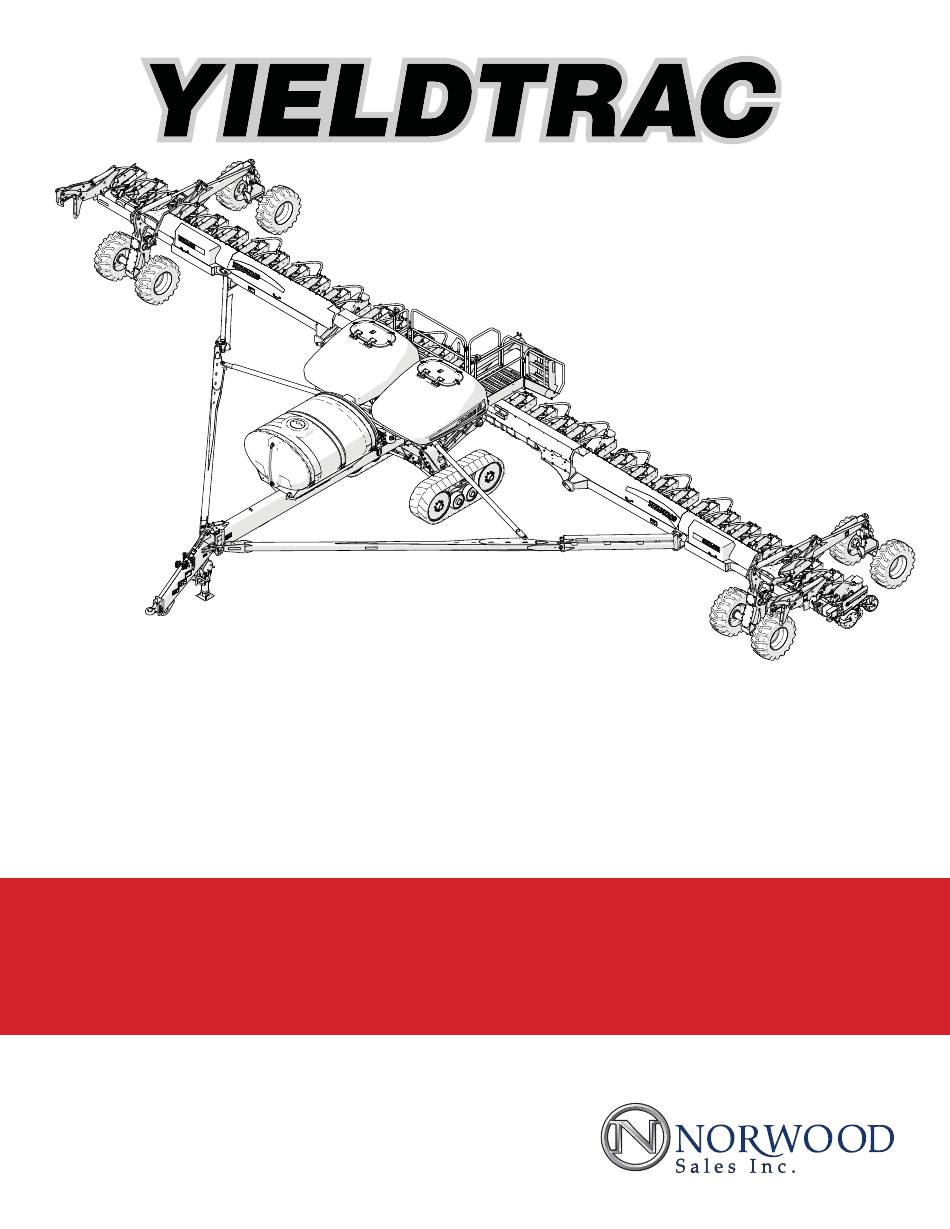

Yieldtrac Planter Bar
Front Fold Trailing Planters
All Models (1200 Series)
OPERATOR'S MANUAL
Part Number T0055725
1st Edition English
February 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Yieldtrac 1200 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Norwood Yieldtrac 1200 Series

Summary of Contents for Norwood Yieldtrac 1200 Series

  • Page 1 Yieldtrac Planter Bar Front Fold Trailing Planters All Models (1200 Series) OPERATOR’S MANUAL Part Number T0055725 1st Edition English February 2019...
  • Page 3 Disclaimer in all systems. Norwood Sales Inc. assumes no obligation of notice to holders of this document with respect to changes subsequently made. Trademark Information Case IH ® Early Riser and AFS ® are registered YIELDTRAC® is a registered trademark of Norwood Sales Any trademarks not directly mentioned are also acknowledged.

  • Page 4: Table Of Contents

    Contents 1 - GENERAL INFORMATION ....................... Note to the Owner ..............................1-1 Electro-Magnetic Compatibility (EMC) ........................1-3 Determining Left and Right Side of the Machine ....................1-4 Determining Orientation Using Directional Arrows ....................1-4 Machine Components (Page 1 of 3) ........................1-5 Machine Components (Page 2 of 3) ........................
  • Page 5 Advanced Seed Meter (ASM) Planting System ....................4-19 Yieldtrac Front Fold Planter Bar Overview ......................4-19 ............................... 4-20 Bulk hopper ................................4-20 Advanced Seed Meter (ASM) components ......................4-21 Leveling the Planter ............................. 4-23 Track Carrier Main Frame Leveling ........................4-23 Adjusting The Clevis ............................
  • Page 6 Rear Wing Wheel Caster Hub Bearing ........................ 5-15 Rear Wing Wheel Walking Tandem ........................5-15 Left & Right Tow Bar Gate Assy’s ........................5-15 ..............................5-16 Stub Arm Pivots ..............................5-16 Wing Wheel Pivots ............................... 5-16 Main Lift Pivots ..............................5-17 Track Hub Lubrication ............................

  • Page 7: General Information

    1 - GENERAL INFORMATION 1 - GENERAL INFORMATION Note to the Owner This manual contains important information about the safe Use only approved accessories and attachments designed for your machine. that may be required for your machine. DO NOT operate or permit anyone to operate or service this machine until you or the other persons have read this manual.
  • Page 8 1 - GENERAL INFORMATION Planter Model Number / Serial Number Case IH Planter Content Model Number / Location Serial Number Location Always give your authorized yieldtrac planter dealer the Always give your authorized yieldtrac planter dealer the model model number and serial number of your yieldtrac planter number and serial number of your case ih planter content (Fig.

  • Page 9: Electro-Magnetic Compatibility (Emc)

    1 - GENERAL INFORMATION WARNING Electro-Magnetic Compatibility (EMC) • The add-on equipment must not interfere with the functioning Interference may arise as a result of add-on equipment which of the on-board electronics. Failure to comply with these rules may or may not necessarily meet the required standards. will render the Yieldtrac planter warranty null and void.

  • Page 10: Determining Left And Right Side Of The Machine

    1 - GENERAL INFORMATION Determining Left and Right Side of the Machine (1) and right (2) sides of the planter are the same as your left and right hand. Fig. # 1-6 (Shown in Field Up Position, with Optional Rear Hitch, & Row Markers) Determining Orientation Using Directional Arrows the machine.

  • Page 11: Machine Components

    1 - GENERAL INFORMATION Machine Components (Page 1 of 3) Fig. # 1-7 Machine Components, (Shown in Field Position) Item Description Item Description Left Tow Bar Front Wing Wheels (Drive Wheels) Left Control Link Assy Rear Wing Wheels Right Tow Bar Hitch Lock Latch Right Control Link Assy Track Undercarriage...
  • Page 12 1 - GENERAL INFORMATION Machine Components (Page 2 of 3) Fig. # 1-8 Machine Components, (Shown in Field Up Position) Item Description Item Description ECU Assembly Cradle Lift Arm Lift & Fold Valve Assembly RH Stub Arm Seed Distributor RH Stub Arm Shield Adjustable Bulk Fill Light Upper Link Assembly...

  • Page 13: Machine Components

    1 - GENERAL INFORMATION Machine Components (Page 3 of 3) Fig. # 1-9 Machine Components, (Shown in Field Up Position With Optional Rear Hitch) Item Description Item Description SMV Sign Bulk Fill Platform Step Ladder Main Fill Valve RH Center Tool Bar Fertilizer Manifold Rear Wing Wheel Calibration Switch Rear Hitch (Optional)
  • Page 14 1 - GENERAL INFORMATION This Page Is Intentionally Left Blank...

  • Page 15: Safety Information

    2 - SAFETY INFORMATION 2 - SAFETY INFORMATION Personal safety This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Read and understand all the safety messages in this manual and associated equipment manuals before you operate or service the machine.

  • Page 16: Safety Rules

    2 - SAFETY INFORMATION Safety rules Read Entire Section Before Use. WARNING Unexpected machine movement! Disengage power, shut down the tractor, and be sure that all moving parts have stopped before servicing, adjusting, cleaning, or unclogging the equipment. Failure to comply could result in death or serious injury. WARNING Failure to comply could result in death or serious injury.
  • Page 17 2 - SAFETY INFORMATION Pay attention to overhead power lines and hanging obstacles. implement. Contact local authorities or utilities to obtain safe clearance distances from high voltage power lines. DO NOT enter tank unless another person is present. Hydraulic oil or diesel fuel leaking under pressure can serious injury..
  • Page 18 2 - SAFETY INFORMATION Reinstall guards and shields after servicing the machine. Close all access doors and install all panels after servicing the machine and before operation. engine is running. Unsupported hydraulic cylinders can lose pressure and drop the equipment causing a crushing hazard. Do not leave Use only rigid tow bars.
  • Page 19 2 - SAFETY INFORMATION Be aware of overhead structures or power lines and make sure the machine and/or attachments can pass safely under. Contact local authorities or utilities to obtain safe clearance distances from high voltage power lines. Travel speed should be such that complete control and machine stability is maintained at all times. Slow down and signal before turning.
  • Page 20 2 - SAFETY INFORMATION Hazardous Chemicals WARNING Chemical hazard could result in death or serious injury! Failure to comply could result in death or serious injury. WARNING Chemical hazard could result in death or serious injury! Misuse including excessive application rate, uneven application, spray drift, and label violations can cause container’s labels.
  • Page 21 2 - SAFETY INFORMATION Face the machine when mounting and dismounting. others of any potential chemical hazard and required safety handhold’s. its contents or the applied material. Never mount or dismount from a moving machine. Utility safety (Self-propelled machines and Do not use the steering wheel or other controls or accessories applicable attachments and accessories) platform.
  • Page 22 2 - SAFETY INFORMATION Noise Level Safety ( 3 ft) from the fan. wear hearing protection when operating noisy equipment or when working in a noisy environment. Decommission Safety When the machine is taken out of service because it is damaged beyond repair or has reached the end of its useful using service instructions and in compliance with local laws and regulations.

  • Page 23: Chemical Safety And The Environment

    2 - SAFETY INFORMATION Chemical Safety and the Environment general. When legislation does not yet rule the treatment of some of the substances which are required by advanced disposal of products of a chemical and petrochemical nature. NOTICE: The following are recommendations which may be of assistance: •...

  • Page 24: Transporting On Public Roads

    2 - SAFETY INFORMATION Transporting on Public Roads WARNING Transport hazard! Failure to comply could result in death or serious injury. Fig. # 2-1 Transporting on Public Roads Slow Moving Vehicle (SMV) Sign Red Warning Lamp / Brake Lamp Amber Warning Light Reflectors For safe transportation of the Yieldtrac planter on public roads arm storage locks are installed before transporting.
  • Page 25 2 - SAFETY INFORMATION WARNING Unexpected movement! Stay clear when lowering the ladder. Failure to comply could result in death or serious injury. WARNING Fall hazard! handrails and one foot on the step, or one hand on the handrail and both feet on the steps. Failure to comply could result in death or serious injury.

  • Page 26: Transport Locks

    2 - SAFETY INFORMATION WARNING Crushing hazard! Failure to comply could result in death or serious injury. Cradle lift arm transport locks are provided for the two cradle (See Fig. # 2-5) lift arms on the planter’s left and right wing assemblies. The cradle lift arm transport locks MUST be installed on the The wing transport locks have a designated stowed position on the left wing.

  • Page 27: Main Lift Cylinder Service / Transport Locks

    2 - SAFETY INFORMATION The main lift cylinder transport locks have a designated storage position on the track carrier assembly. The main Main lift cylinder transport locks are provided for the two main lift cylinder transport locks MUST be returned in the storage lift cylinders on the planter track carrier assembly.

  • Page 28: Wing Wheel Cylinder Stops

    2 - SAFETY INFORMATION Wing Wheel Cylinder Stops cylinder rods whenever the planter is in service to avoid the cylinder settling. (See Fig. # 2-9) Wing wheel cylinder stops are provided for the two wing cylinders on the planter left and right toolbar wing assemblies. The wing wheel cylinder stops MUST be installed on the wing Wing Wheel Wing...

  • Page 29: Wing Wheel Arm Transport / Storage Locks

    2 - SAFETY INFORMATION Wing Wheel Wing wheel arm transport / storage locks are provided for the Arm Transport two wing wheel arms on the planter’s left and right toolbar Stowed / Storage Lock wing assemblies. The wing wheel arm transport / storage Position locks MUST be installed as shown in (Fig.
  • Page 30 2 - SAFETY INFORMATION IMPORTANT (Optional Row Unit Lift) position on the planter when not in use. Wing wheel arm transport / storage locks are provided for the two wing wheel arms on the planter’s left and right toolbar wing assemblies. The wing wheel arm transport / storage Wing Wheel locks MUST be installed as shown in (Fig.
  • Page 31 2 - SAFETY INFORMATION A hydraulic hitch lock is located at the right front side of the ground clearance is needed and the machine is being serviced. To install the the 3/8” X 3-1/4” Clevis Pin B Hair Pin Clip C . Fig.

  • Page 32: Maintenance Safety

    2 - SAFETY INFORMATION Maintenance Safety WARNING Improper operation or service of this machine can result in an accident. Read and understand the SAFETY INFORMATION Section before you operate or service the machine. Failure to comply could result in death or serious injury. Environment WARNING Chemical hazard!

  • Page 33: Safety Signs

    2 - SAFETY INFORMATION Safety Signs The following safety signs are placed on your machine as a guide for your safety and for those working with you. Walk around the machine and note the content and location of these safety signs before operating your machine. make sure the safety sign is installed on the new part.

  • Page 34: Safety Sign Locations Cont

    2 - SAFETY INFORMATION Safety Sign Locations Cont... Fig. # 2-20 Safety Sign Locations Item Part number Description Qty. Item Part number Description Qty. T0051573 T0051727 T0051575 T0051729 T0051588 T0051737 T0051589 T0052291 T0051592 T0052802 T0051593 T0052826 T0051595 T0053462 T0051596 T0053597 T0051653 T0053639 T0051669...
  • Page 35 2 - SAFETY INFORMATION Before operating machine, read operator’s manual and ALL SAFETY instructions. If manual is missing, contact your dealer or service department. Before starting engine or Use Slow-Moving Vehicle (SMV) operation, clear area of identification emblem and bystanders. flashing warning lights when Disengage drives, stop engine, operating on highways, except...
  • Page 36 2 - SAFETY INFORMATION Properly prepare machine for transport / roading. Transport with Ag Tractor only. 20 mph [32 km/h] - MAX. road speed. Transport with EMPTY tanks and hoppers only. Towing unit must weigh at least .67 x GROSS weight of towed machine include weight in tanks or hoppers.
  • Page 37 2 - SAFETY INFORMATION TIPPING HAZARD Fold or lower implement before unhooking from tractor drawbar. Failure to comply could result in death or serious injury. P/N T0051575 Fig. # 2-25 Warning Decal Qty 2 Per Machine P/N T0051575 See Fig. # See Fig.
  • Page 38 2 - SAFETY INFORMATION HIGH-PRESSURE FLUID HAZARD To prevent serious injury or death: Relieve pressure on hydraulic system before repairing or adjusting. Wear proper hand and eye protection Keep all components in good repair. P/N T0051669 Fig. # 2-28 Warning Decal Qty 1 Per Machine, P/N T0051669 See Fig.
  • Page 39 2 - SAFETY INFORMATION IMPORTANT CASE DRAIN AND MOTOR RETURN LINES The case drain and motor return lines must be connected before folding/unfolding the toolbar and before pulling the toolbar in working position. Failure to connect these lines will result in failure to the wing fold drive system and void the warranty.
  • Page 40 2 - SAFETY INFORMATION CRUSH HAZARD Stand clear of machine when folding to transport position, or unfolding to planting position. Failure to comply could result in death or serious injury. P/N T0051588 Fig. # 2-32 Warning Decal Qty 2 per machine P/N T0051588 See Fig.
  • Page 41 2 - SAFETY INFORMATION CRUSH HAZARD Stand clear of machine when folding to transport position, or unfolding to planting position. Failure to comply could result in death or serious injury. P/N T0051588 Fig. # 2-35 Warning Decal Qty 2 per machine P/N T0051588 See Fig.
  • Page 42 2 - SAFETY INFORMATION PRESSURIZED HAZARD Avoid serious injury from exploding parts due to overpressurization or operating systems without all components in place. Do not inflate system above 105 psi. Do not remove pressure relief valve. Do not pressurize system unless all row unit components are in place.
  • Page 43 2 - SAFETY INFORMATION WARNING Pin Transport Lock Into Position Before Servicing Transporting CRUSH HAZARD BEFORE SERVICING OR TRANSPORTING UNIT • Install transport locks on the left and right side of the machine to avoid cylinders settling during servicing or transport. Failure to comply could result in death or serious injury.
  • Page 44 2 - SAFETY INFORMATION IMPORTANT WARNING CHEMICAL HAZARD • Wear Protective Equipment as directed on Chemical Label. 1. Main Fill Valve: (Located on Ladder) Failure to comply 2. Tank Shut-Off Valve: Is used to stop the flow of fertilizer from the could result in tank to the pump.
  • Page 45 2 - SAFETY INFORMATION WARNING Transport / Storage Locks Stow Position Lock Position CRUSH HAZARD BEFORE TRANSPORTING OR STORING UNIT • Install transport / storage locks on the left and right side wing wheel arms to avoid cylinders settling. Failure to comply could P/N T0053939 result in death or serious injury.
  • Page 46 2 - SAFETY INFORMATION WARNING • Row unit raises during folding operations. • Stand clear of machine when folding to transport position, or unfolding to planting position. Failure to comply could result in death or serious injury. P/N T0055291 Fig. # 2-47 Warning Decal Qty 2 Per Machine P/N T0053939 See Fig.
  • Page 47 2 - SAFETY INFORMATION WARNING Transport Locks Lock Position Stow Position CRUSH HAZARD BEFORE SERVICING OR TRANSPORTING UNIT • Install transport locks on the left and right side cradle lift arms to avoid cylinders settling during transport or servicing. P/N T0053715 Failure to comply could result in death or serious injury.
  • Page 48 2 - SAFETY INFORMATION WARNING Locked Position Stowed Position CRUSH HAZARD BEFORE SERVICING OR TRANSPORTING UNIT • Install transport lock to avoid left and right wings shifting during servicing or transport. Failure to comply could result in death or serious injury. P/N T0052802 Fig.
  • Page 49 2 - SAFETY INFORMATION WARNING • Install transport lock from right wing to left wing to avoid left and right wings shifting during servicing or transport. Failure to comply could result in death or serious injury. P/N T0052826 Fig. # 2-54 Important Decal Qty 1 Per Machine P/N T0052826 See Fig.
  • Page 50 2 - SAFETY INFORMATION Install Cylinder Stop Before Servicing CRUSH HAZARD BEFORE SERVICING UNIT Install cylinder stops on the left and right side of the wing lift cylinders to avoid cylinders settling during servicing. Failure to comply could result in death or serious injury. P/N T0051737 Fig.
  • Page 51 2 - SAFETY INFORMATION DANGER CRUSHING HAZARD • Keep everyone away from the wing wheel arm and wing folding / unfolding area. • Always use wing wheel arm transport / storage locks to avoid cylinders settling. Failure to comply, will result in death or serious injury.
  • Page 52 2 - SAFETY INFORMATION CHEMICAL HAZARD Wear Protective Equipment as directed on Chemical Label. Failure to comply could result in death or serious injury. P/N T0051589 Fig. # 2-61 See Fig. # 2-59 Warning Decal Fig. # 2-62 Safety Sign Location - Rear, Right Side On Step Ladder 2-38...
  • Page 53 2 - SAFETY INFORMATION Ladder may move unexpectedly, stay clear when lowering. Face the ladder when climbing up and down. One person on the ladder at a time. Raise and lock the ladder when not in use. P/N T0051596 Fig. # 2-63 Warning Decal Qty 1 Per Machine, P/N T0051596 See Fig.
  • Page 54 2 - SAFETY INFORMATION Fig. # 2-65 Warning Decal Qty 2 Per Machine, P/N 47433195 See Fig. # 2-63 Warning Decal Fig. # 2-66 Warning Decal - On The Top Of The Bulk Fill Hopper Lids 2-40...
  • Page 55 2 - SAFETY INFORMATION WARNING • No Step. Do not step or stand on this surface. This NO STEP surface may be slippery. Failure to comply could result in death or serious injury. P/N T0051653 Fig. # 2-67 Warning Decal Qty 1 Per Machine, P/N T0051653 See Fig.
  • Page 56 2 - SAFETY INFORMATION NOTICE FAN MOTOR CASE DRAIN LINE Failure to connect this line to a case drain pressure will result in motor failure and void the warranty. FAN MOTOR CASE DRAIN LINE Failure to connect this line to a case drain port with less than 25 psi (170 kPa) back- pressure will result in...
  • Page 57 2 - SAFETY INFORMATION NOTICE MOTOR RETURN LINE This line must be connected to the motor return coupler the toolbar in the working position. Failure to connect the motor return line will result in failure to the wing fold drive system and void the warranty.
  • Page 58 2 - SAFETY INFORMATION DANGER ELECTROCUTION HAZARD Keep markers away from overhead electrical wires. Failure to comply will result in death or serious injury. CRUSH HAZARD KEEP CLEAR Markers actuate automatically. Failure to comply could result in death or serious injury. P/N T0051591 Fig.
  • Page 59 2 - SAFETY INFORMATION NOTICE 172 - 156 N·m (127 - 115 lb ft). to the planter and property. Fig. # 2-76 Notice Decal Qty 2 Per Machine, P/N T0052464, Case IH P/N 47450633 See Fig. # See Fig. # 2-74 Notice 2-74 Notice Decal...
  • Page 60 2 - SAFETY INFORMATION Install Transport Lock Before Servicing or Transporting CRUSH HAZARD BEFORE SERVICING OR TRANSPORTING UNIT Install transport lock on the hydraulic hitch cylinder to avoid hydraulic cylinder settling during servicing or transport. Failure to comply could result in death or serious injury.
  • Page 61 2 - SAFETY INFORMATION HOSE COLOR CHART Fig. # 2-82 Important Decal Qty 1 Per Machine P/N T0056033 Fig. # 2-82 Fig. # 2-83 Important Decal Location 2-47...
  • Page 62 2 - SAFETY INFORMATION This Page Is Intentionally Left Blank 2-48...

  • Page 63: Transport Operations

    3 - TRANSPORT OPERATIONS 3 - TRANSPORT OPERATIONS Road Transport Transporting on Public Roads WARNING Transport hazard! visible. Failure to comply could result in death or serious injury. WARNING Hazard to bystanders! Be sure all persons and pets are standing clear during planter folding and unfolding. Failure to comply could result in death or serious injury.

  • Page 64: Tractor Requirements

    3 - TRANSPORT OPERATIONS Tractor Requirements Minimum Tractor Model Power Required 24R20 Standard Equipment with bulk hopper system and liquid fertilizer system 260 HP 24R22 Standard Equipment with bulk hopper system and liquid fertilizer system 260 HP 24R30 Standard Equipment with bulk hopper system and liquid fertilizer system 260 HP 36R20 Standard Equipment with bulk hopper system and liquid fertilizer system...

  • Page 65: Hitch Requirements

    3 - TRANSPORT OPERATIONS Hitch Requirements A Cat. IV drawbar is required to be used with 24 row Yieldtrac The Yieldtrac planter utilizes a hydraulic track tensioning planters. A Cat. V drawbar is required to be used with 36 row system.

  • Page 66: Hydraulic Connections

    3 - TRANSPORT OPERATIONS Hydraulic Connections The hydraulic line with the label marked “Motor Return” must be connected to the motor return coupler before folding/ Connect the Yieldtrac Planter Bar 36R22 hydraulic system to the tractor remote hydraulic system. working position. The fan motor case drain hydraulic line is always tagged with Failure to connect the motor return line will result this important decal.
  • Page 67 3 - TRANSPORT OPERATIONS Motor Case Drain Kits The following kits can be used to create a low pressure return or case drain for your Case IH tractor. Magnum (7100, 7200, 8900) - 367010A* Fig. # 3-6 Part Description the tee should be facing rearward after assembly. Number 810139C2 2.
  • Page 68 3 - TRANSPORT OPERATIONS Magnum (MX180-270) Fig. # 3-7 Part Description Number 387929A1 380739A1 385358A1 220066A1 220068A1 814-10150 218-5058 * May substitute with P/N 221578A1 ** May substitute with P/N 221580A1 Order components as needed to properly connect the plant- er case drain line.
  • Page 69 3 - TRANSPORT OPERATIONS NOTICE: Clean the area around the hydraulic coupler to If the motor return kit was installed and removed but it’s func- avoid contaminating the hydraulic system when the system tions are still needed: is opened. 5. Assemble the coupler and connector (8) (10) to the power NOTICE: Work carefully to avoid damaging the gasket or beyond casting.
  • Page 70 3 - TRANSPORT OPERATIONS Magnum Tractors Motor return equipped tractors Use the case drain (low pressure return) port on the motor return casting as the low pressure return for the vacuum fan and bulk hopper fan case drain connection. NOTE: The 3/4 in ID return line from the multivalve for the planter fan and seed drives may be connected to the motor return port (3) on the casting.
  • Page 71 3 - TRANSPORT OPERATIONS Power Beyond Equipped Tractors use the case drain (low pressure return) port on the casting for the vacuum fan and bulk hopper fan case drain connec- tion. NOTICE: Do NOT connect the vacuum or bulk hopper fan case drain to the load sense port (LS).
  • Page 72 3 - TRANSPORT OPERATIONS Fig. # 3-12 (5) elbow connector from kit to the ORB Part Description Number 187563C1 4. Install the hose (3) 218-5057 Connector, 9/16-18 the hose to the rear of the tractor. Secure the hose with 91163C1 Hose, 3/8 X 47 in tie straps as required.
  • Page 73 3 - TRANSPORT OPERATIONS Steiger 9100, 9200, 9300 - 367011A* 1. Install the standard motor return kit for a Steiger tractor. 2. Remove the quick disconnect coupler and the connector from the planter's fan case drain line. 3. Install the supplied connector and quick disconnect cou- pler from the kit to the planter's fan case drain line and connect to the zero pressure port on the motor return casting.
  • Page 74 3 - TRANSPORT OPERATIONS Steiger Tractors 1. Install the standard motor return kit for a Steiger tractor. 2. Install the female quick disconnect coupler to the motor Fig. # 3-14 Part Description Number 380739A1 Motor return kit * Consult your Case IH dealer for the proper kit for your tractor. NOTICE: DO NOT connect the planter fan case drain hose to the load sense (3) or pilot supply (4) ports.

  • Page 75: Electrical Connections

    3 - TRANSPORT OPERATIONS Electrical Connections power outlet at the rear of the tractor. Connect the 9-pin connector (2) from the planter harness to the tractor electrical system and the AFS® harness to the display. Refer to the AFS® software manual. Fig.

  • Page 76: Planter Lighting

    3 - TRANSPORT OPERATIONS Planter lighting compatible with enhanced tractor brake lighting: When the illuminate along with the tractor's. the planter brake lamps will illuminate continuously. To dis- able this feature: in detail (A) in (Fig. # 3-17) on the hitch harness behind the 7-pin lighting connector (2).

  • Page 77: Shipping Transport

    3 - TRANSPORT OPERATIONS SHIPPING TRANSPORT WARNING Hazard to bystanders! the area. Failure to comply could result in death or serious injury. S e c u r e secure the planter to the trailer bed with the original shipping C h a i n s stand used to deliver the planter from the factory.
  • Page 78 3 - TRANSPORT OPERATIONS be necessary to remove the unloading from transporting on a trailer. Fig. # 3-21 Camber Pin Locations Fig. # 3-22 Camber Pin Removal 3-16...

  • Page 79: Working Operations

    4 - WORKING OPERATIONS 4 - WORKING OPERATIONS GENERAL INFORMATION Planter Preparation DANGER Unexpected machine movement! Air in the hydraulic system could cause unexpected machine movement. Purge the air from the hydraulic system after any hydraulic system maintenance or repair. Failure to comply will result in death or serious injury.

  • Page 80: Planter Preparation Frame Control

    4 - WORKING OPERATIONS Planter Preparation Frame Control IMPORTANT Unfolding and Folding the Planter Before unfolding the planter, consult pages 2-12 thru. 2-17 to properly store the Cradle Arm Transport The hydraulic hitch (if equipped) must be fully lowered before folding/unfolding the toolbar. ®...
  • Page 81 4 - WORKING OPERATIONS 4. Press the “Planter Frame Operation” 7. Press the “Lower Wing Wheels” button to access the pop-up options window. Press “Unfold” Back button to activate the “Wing Wheel” function. (See Fig. to access the planter unfold functions. (See Fig. # 4-4) # 4-6) Fig.
  • Page 82 4 - WORKING OPERATIONS Rear RH Rear LH Wing Wing Wheel Wheel Front RH Front LH Wing Wing Wheel Wheel Fig. # 4-8 Fig. # 4-9...
  • Page 83 4 - WORKING OPERATIONS 11. Push the corresponding remote lever forward for the lift & fold function to lower the cradle lift arms and lower the button to activate the “Lower Center Section” function. (See wing wheels to the ground. (See Fig. # 4-11 & Fig. # 4-11) Fig.
  • Page 84 4 - WORKING OPERATIONS Fig. # 4-12 Unfolding - Wing Wheels on the ground with Row Units Up (Step # 2)
  • Page 85 4 - WORKING OPERATIONS 12. Place the gear shifter lever in the “Neutral” position or “Reverse” Wings” button to activate the “Lower Cen- ter Section”. (See Fig. # 4-13). Fig. # 4-13 13. Push the corresponding remote lever forward for the lift and fold function to unfold the left and right wings.
  • Page 86 4 - WORKING OPERATIONS Fig. # 4-14 Unfolded Field Position with Row Units Up (Step 3) Fig. # 4-15 Unfolding - Left and Right Wings unfolded (Step # 3)
  • Page 87 4 - WORKING OPERATIONS 16. Pull the corresponding remote lever back for the lift & fold function to raise the cradle lift and lock the front hitch in button to activate the “Lower Center Section” function. (See the planting position. (See Fig. # 4-16) Fig.

  • Page 88: Folding The Planter

    4 - WORKING OPERATIONS Folding the Planter 3. Press the “Frame” button on the navigation bar to 1. From the home screen of the Case IH AFS® Pro 700 display the Planter Frame Control screen. See Fig. # 4-18 Frame Control screen by pressing the 4.
  • Page 89 4 - WORKING OPERATIONS 5. Press the “Planter Frame Operation” button to access the pop-up options window. Press “Fold” to access the planter fold functions. (See Fig. # 4-21) Fig. # 4-21 6. Your display should now look like (Fig. # 4-22). Fig.
  • Page 90 4 - WORKING OPERATIONS Press the “Raise Planter to Fold Height” button to activate the “Raise Planter to Fold Height” function. (See Fig. # 4-23) Fig. # 4-23 Planter Frame Control “Fold” Screen 8. Pull the corresponding remote lever back for the lift and fold function to raise the planter to fold height.
  • Page 91 4 - WORKING OPERATIONS button button to activate the “Raise Center Section” function. (See to activate the “Fold Wings” function. (See Fig. # 4-27) Place Fig. # 4-25) the gear shifter lever in the “Neutral” position or “Forward” depending on the terrain. Fig.
  • Page 92 4 - WORKING OPERATIONS Fig. # 4-29 Folding Left and Right Wings (Step # 2) 14. The planter’s wings should now be folded inward. (See Fig. # 4-30) Fig. # 4-30 Folding - Wing Wheels on the Ground with Row Units Up (Step # 3) 4-14...
  • Page 93 4 - WORKING OPERATIONS 16. Pull the corresponding remote lever back for the lift and “Raise Center Section” fold function to raise the center section from the ground. button to activate the “Raise Center Section” function. (See (See Fig. # 4-32) Fig.
  • Page 94 4 - WORKING OPERATIONS 17. Pull the corresponding remote lever back for the lift and fold function to raise the wing wheels. (See Fig. # 4-34) button to activate the “Raise Wing Wheels” function (See Fig. # 4-33) Fig. # 4-34 Planter Frame Control “Fold” Screen Fig.
  • Page 95 4 - WORKING OPERATIONS 19. The planter should now be in the transport position. (See Fig. # 4-35) Fig. # 4-35 21. Your display should look like the following. (See Fig. # 4-37) (See Fig. # 4-36) Fig. # 4-37 IMPORTANT After the folding operation is completed, consult pages 2-12 thru.

  • Page 96: Labeling Row Unit Components

    4 - WORKING OPERATIONS Labeling Row Unit Components the components by row unit position keeps these compo- Row units are referenced from left to right on all Yieldtrac Planter Bar 36R22 (Fig. # 4-38 & Fig. # 4-39). Additionally the end user may label the seed disk and the agitator (Fig.

  • Page 97: Advanced Seed Meter (Asm) Planting System

    4 - WORKING OPERATIONS Advanced Seed Meter (ASM) Planting System Fig. # 4-41 Advanced Seed Meter (ASM) planting system Yieldtrac Front Fold Planter Bar Over- by hydraulic motors. view Changing product application rates or liquid fertilizer The Yieldtrac Planter Bars have a hydraulic variable seed application rate without leaving the cab and enhanced control meter drive as standard equipment.

  • Page 98: Bulk Hopper

    4 - WORKING OPERATIONS Liquid fertilizer Liquid fertilizer application rate is totally independent of seed Riser® row units with bulk seed hoppers and Advanced Seed Meters. ® ® convenience of in-cab Case IH control. Application rate can be changed while planting without changing seed population.

  • Page 99: Advanced Seed Meter (Asm) Components

    4 - WORKING OPERATIONS Advanced Seed Meter (ASM) components Releasing a latch on the seed hopper provides access to the seed metering system. Releasing three latches on the seed meter cover provides access to the seed disk for changeover. Easy inspection of the meter unit can be done while in the and into the trench.
  • Page 100 4 - WORKING OPERATIONS Hydraulic Hitch (Optional) The planter is (optionally) supplied with a “Hydraulic Hitch” Fig. # 4-43 during transport. • The “Hydraulic Hitch Cylinder” is directly connected to the tractor remotes for operation. The hydraulic hitch requires an additional remote valve on the tractor. •...

  • Page 101: Leveling The Planter

    4 - WORKING OPERATIONS Leveling the Planter Toolbar height and level adjustment should be performed in The planter row units must be parallel to the ground when to the correct height will guarantee that the row units are level to the ground. 1.
  • Page 102 4 - WORKING OPERATIONS 3. The planter hitch is equipped with a clevis which can be adjusted as needed to level the track carrier main frame which creates level row units. The clevis can be installed (See Fig. # 4-47) NOTE: The planter was leveled at the factory at “Position 2”...

  • Page 103: Adjusting The Clevis

    4 - WORKING OPERATIONS Adjusting The Clevis hitch clevis to a lower position. (The default location from the factory is in “Position 2”.) Note: The planter was leveled at the factory at “Position 2” hitch clevis to a higher position. the Qty.

  • Page 104: Toolbar Leveling

    4 - WORKING OPERATIONS Toolbar Leveling 1. Place a level on the center toolbar as shown in (See Fig. # 4-49”). Rotate Turnbuckle With a 2-1/2” Open End Wrench Counter Clockwise P l a c e Level Here Fig. # 4-51 Rotate Turnbuckle Counter Clockwise to Raise Toolbar Pitch Fig.

  • Page 105: Tow Bar Adjustment

    4 - WORKING OPERATIONS Tow Bar Adjustment 5. Use a 2-1/4” open end wrench to adjust the tie-rod ends on the tow bar assemblies at the front hitch. (See Fig. # It is important to have the left and right wings aligned cor- 4-50) rectly to the center bar.

  • Page 106: Liquid Fertilizer System

    4 - WORKING OPERATIONS Liquid Fertilizer System ® control. ® The application rate can be changed on the AFS monitor while planting without changing seed population. Description Liquid Fertilizer Tank Tank Lid Pressure Gauge Fig. # 4-57 Section Control Valves Variable Flow Rate Pump Hydraulic Motor Filter...
  • Page 107 4 - WORKING OPERATIONS • A “ ” (3) is located on the recirculation / bypass line on the fertilizer pump mount on There are four valves located on the fertilizer system. (See Fig. # 4-61) and is used to (Located on Ladder) (Located on Left Side Near Filter) NOTE: This valve needs to be open during operation.
  • Page 108 4 - WORKING OPERATIONS tank. Fig. # 4-63 NOTE: Fertilizer Tank Lid Fig. # 4-63 (See Fig. # 4-64) CLOSED OPEN Fig. # 4-64 4-30...

  • Page 109: Liquid Fertilizer System Operation

    4 - WORKING OPERATIONS Liquid Fertilizer System Operation (1) and then into the intake port (2) The key components of the liquid fertilizer system are: • And a check valve. “ON” (See Fig. # 4-65) Fig. # 4-66 In-line Filter and Intake Port ®...
  • Page 110 4 - WORKING OPERATIONS NOTE: Cont’d... (1) to the sectional control valves (2) and pressure gauge (3). Readouts from the pressure gauge are useful for monitoring system pres- cleaning. sure. The operator controls the sectional control valves (2) from ® the AFS Display.
  • Page 111 4 - WORKING OPERATIONS Refer to the table on the following pages to select the correct NOTE: 100 mesh screens are available from your Norwood raised out of planting position. system must be re-calibrated if the mesh screens are added.
  • Page 112 4 - WORKING OPERATIONS tem. The simplest way to adjust for these variations in fertilizer types is to determine the weight of one gallon. 1. Determine the weight of one gallon of your selected fertilizer as it will be applied. Some manufacturers supply this infor- precise.
  • Page 113 4 - WORKING OPERATIONS 20 in spacing Pressure Gallons/Acre 20 Inch Spacing Per Nozzle (PSI)* Size 4 MPH 5 MPH 6 MPH 7 MPH 8 MPH Oz/Min. CP4916-29 0.076 0.094 0.108 0.132 11.3 0.153 CP4916-35 0.111 10.1 0.136 11.7 0.157 14.3 11.4 0.193...
  • Page 114 4 - WORKING OPERATIONS 22 in spacing Pressure Gallons/Acre 22 Inch Spacing Per Nozzle (PSI)* Size 4 MPH 5 MPH 6 MPH 7 MPH 8 MPH Oz/Min. CP4916-29 0.076 0.094 0.108 0.132 10.3 0.153 CP4916-35 0.111 0.136 10.6 0.157 13.0 10.4 0.193 15.0...
  • Page 115 4 - WORKING OPERATIONS 30 in spacing Pres (PSI)* Gallons/Acre 30 Inch Spacing Per Nozzle Size 4 MPH 5 MPH 6 MPH 7 MPH 8 MPH Oz/Min. CP4916-29 0.076 0.094 0.108 0.132 0.153 CP4916-35 0.111 0.136 0.157 0.193 11.0 0.222 CP4916-40 0.144 0.177...

  • Page 116: In-Furrow Fertilizer Applicators

    4 - WORKING OPERATIONS In-Furrow Fertilizer Applicators Applying low rates of in-furrow liquid fertilizer and/or insec- ticide may create seed spacing problems depending on the attachment used. Many attachments are connected to the seed shoe in an attempt to drop liquid product directly into the seed furrow before the closing disks seal it.
  • Page 117 4 - WORKING OPERATIONS • Center the tip of the applicator tube (1) over the seed trench (2). NOTE: Following these guidelines should eliminate most seed spacing interference, but cannot guarantee success in determine if seed placement is acceptable. Fig. # 4-75 Center the Tip of the Applicator 4-39...

  • Page 118: Planting

    4 - WORKING OPERATIONS Planting Fig. # 4-76 Bulk Hopper System Components (Left Side Shown) Fig. # 4-77 Bulk Hopper System Components (Right Side Shown) Description Description RH Bulk Fill Hopper Bulk Fill Fan LH Bulk Fill Hopper Hydraulic Bulk Fill Fan Motor Bulk Fill Fan Valve Your Yieldtrac Planter is equipped with two central 2.1 m³...
  • Page 119 4 - WORKING OPERATIONS WARNING Unexpected movement! Stay clear when lowering the ladder. Failure to comply could result in death or serious injury. The hopper platform can be accessed with the folding step storage position. The step ladder can be folded or unfolded depending on the position of the planter.

  • Page 120: Rear Fertilizer Sight Tube

    4 - WORKING OPERATIONS Rear Fertilizer Sight Tube 1. The rear fertilizer sight tube is located at the rear of the on the side of the platform railing. (See Fig. # 4-78) that is indicated will match the level in the fertilizer tank and front fertilizer sight tube.

  • Page 121: Seed Population/Spacing Chart For 20"& 22" Row Spacing

    4 - WORKING OPERATIONS Seed Population/Spacing Chart for 20”& 22” Row Spacing Seed Population Seed Population Seed Seed Spacing Spacing Seed/Acre Seed/Acre Seed/Acre Seed/Acre (Inch/seed) (Inch/seed) 20 inch rows 22 inch rows 20 inch rows 22 inch rows 0.25 7.75 0.50 8.00 0.75...

  • Page 122: Seed Population/Spacing Chart For 15"& 30" Row Spacing

    4 - WORKING OPERATIONS Seed Population/Spacing Chart for 15”& 30” Row Spacing Seed Population Seed Population Seed Spacing Seed Spacing Seed/Acre 15 Seed/Acre 30 Seed/Acre 15 Seed/Acre 30 (Inch/seed) (Inch/seed) inch rows inch rows inch rows inch rows 0.25 7.75 0.50 8.00 0.75...

  • Page 123: Maintenance

    5 - MAINTENANCE 5 - MAINTENANCE GENERAL INFORMATION Maintenance Safety Environment WARNING Improper operation or service of this machine can result in an accident. Read and understand the SAFETY INFORMATION Section before you operate or service the machine. Failure to comply could result in death or serious injury. WARNING Chemical hazard! When handling fuel, lubricants, and other service chemicals, follow the manufacturer’s instructions.
  • Page 124 5 - MAINTENANCE WARNING Improper operation or service of this machine can result in an accident. Read and understand the SAFETY INFORMATION Section before you operate or service the machine. Failure to comply could result in death or serious injury. WARNING Failure to comply could result in death or serious injury.

  • Page 125: Maintenance Chart

    5 - MAINTENANCE MAINTENANCE CHART Replace Cleaning Change Fluid Adjust Drain Fluid Grease # of Interval Page # Maintenance Action Pts. Seasoning The Tracks IMMEDIATE BEFORE ROADING Checking Track Alignment Steering Adjustment BEFORE PLANTING FIRST 1 HOUR 5-11 Track Wheel Lug Nut Torque 5-11 Wing Wheel Lug Nut Torque *5-9...
  • Page 126 5 - MAINTENANCE Replace Cleaning Change Fluid Adjust Drain Fluid Grease # of Interval Page # Maintenance Action Pts. Marker bearing - Disassemble *5-31 Marker bearing - Reassemble *5-33 Bulk hopper seed level sensor *5-38 *5-42 Pneumatic down pressure (if equipped) *5-44 Wing wheel drive chain case 5-20...

  • Page 127: Immediate / Before Roading

    5 - MAINTENANCE Immediate / Before Roading Note: The track system must be dry and properly seasoned before checking the alignment. Note: For proper track operation the track toe setting needs to be within proper range. The track toe setting is set at the A.
  • Page 128 5 - MAINTENANCE Check Gap Here Between Guide Lug Alignment And Front Idler Adjustment Screw Both Sides Fig. # 5-6 Checking Gaps at Front Idler Fig. # 5-4 Outer Right Side Track Alignment Adjusting Screw location Check Check For Wear For Wear Here Here...

  • Page 129: Before Planting

    5 - MAINTENANCE Before Planting (Note: If the planter has the hydraulic steering option installed the steering adjustment will be controlled by the guidance Steering Adjustment: system used to control the hydraulic steering cylinder) is used to control the steer angle of both tracks. The planter •...

  • Page 130: Alignment Method

    5 - MAINTENANCE Alignment Method Note: Do not adjust screws by more than 1/2 turn at a time. Re-tighten lock nuts before driving tractor. Note: The track will not likely center, what is important is that the track is not running hard to one side or the other. Tracks the track needs to be adjusted inward.
  • Page 131 5 - MAINTENANCE To Move RH To Move LH Forward Direction Track Outward Track Inward of Travel Inner Outer Right Left Side Side Tighten Tighten Tighten Tighten This Side This Side This Side This Side Outer Inner Right Left Side Side To Move RH To Move LH...

  • Page 132: Toe Adjustment

    5 - MAINTENANCE • Measure between the rear idler wheels on the rim directly Toe Adjustment: below the rear idler wheel hubs (See Fig. # 5-11). Toe is the steer relationship between the left and right • The measured distance between the front and rear idler undercarriage.

  • Page 133: Wing Wheel Lug Nut Torque

    5 - MAINTENANCE First 1 Hour (See Fig. # 5-13) Number Location Wheel Torque of Lug Size Nuts Front Idler Ø25.5 320 ft-lbs (434 N-m) Rear Idler Ø25.5 320 ft-lbs (434 N-m) Idler Wheel Idler Wheel Lug Nuts Lug Nuts Fig.

  • Page 134: Wing Wheel Lug Nut Torque

    5 - MAINTENANCE Every 10 Hours or Daily re-torque all lug nuts. (See Fig. #5-15) Number Location Wheel Torque of Lug Size Nuts 320 ft-lbs (434 N-m) Front Idler Ø25.5 Rear Idler Ø25.5 320 ft-lbs (434 N-m) Idler Wheel Idler Wheel Wing Wheel Lug Nut Torque Lug Nuts Lug Nuts...

  • Page 135: Liquid Fertilizer System Maintenance

    5 - MAINTENANCE Every 10 Hours or Daily NOTICE: Liquid Fertilizer System Maintenance rate from the liquid and clog the system. 1. Drain all liquid fertilizer from the tanks. Remove the plug NOTE: Refer to Storage pages in this section for instruc- system with water after daily use.

  • Page 136: Cat 4/5 Ball Hitch Assy

    5 - MAINTENANCE Every 10 Hours or Daily CAT 4/5 Ball Hitch Assy 1. Grease 2 points (1) CAT 5 Ball Hitch Assy located on the front hitch every 10 hours of use. Use Case IH AkcelA Multi-Purpose Grease 251H EP or equivalent. (Pump until 1.

  • Page 137: Rear Wing Wheel Caster Hub Bearing

    5 - MAINTENANCE Every 50 Hours method. Refer to page 5-5 for checking track alignment. Rear Wing Wheel Caster Hub Bearing Grease 1 point on each wheel (4 points total) (1) on the rear wing wheel hubs every 50 hours of use. Use Case IH Ak- 3 Pumps).

  • Page 138: Stub Arm Pivots

    5 - MAINTENANCE Every 50 Hours Wing Wheel Pivots Grease the 2 point (4 Points Total) on the left and right wing Wing Flex Pivots wheel rotation pins (1) every 50 hours of use. Use Case IH AkcelA Multi-Purpose Grease 251H EP or equivalent. Grease the point (1) (Pump until the grease becomes visible) pins every 50 hours of use.

  • Page 139: Main Lift Pivots

    5 - MAINTENANCE Every 50 Hours Grease the 16 grease zerk points on the track hub’s locat- Main Lift Pivots ed on the inner and outer sides of the track assemblies (1) every 50 hours of use. Use Case IH AkcelA Multi-Purpose Grease the 4 points on the left and right side of the main lift pivots (1) every 50 hours of use.

  • Page 140: Hitch Latch

    5 - MAINTENANCE Every 50 Hours Hitch Latch Grease the grease zerk point on the Hitch Latch located as shown below (1) every 50 hours of use. Use Case IH AkcelA Multi-Purpose Grease 251H EP or equivalent. (Note: Both Grease the 2 grease zerk points on the track’s spherical bearing grease zerk located on the outer sides of the track...

  • Page 141: Wing Wheel Arm Cylinder Pivots

    5 - MAINTENANCE Every 50 Hours Tie rods Grease the 6 grease zerk points on the tie rods located on Wing Wheel Arm Cylinder Pivots the inner sides of the track assemblies (1) every 50 hours of use. Use Case IH AkcelA Multi-Purpose Grease 251H 1.

  • Page 142: Wing Wheel Drive Chain Case

    5 - MAINTENANCE Every 200 Hours Wing Wheel Drive Chain Case 1. Change gear lube every 200 hours of use. Use a 5/16” Allen wrench to remove the 3/8” NPT drain plug at the bottom of the wing wheel drive. Perform this task in the “Field Up Position”...

  • Page 143: Implement Jack Grease Points

    5 - MAINTENANCE Every 200 Hours Grease the 3 grease zerk points on the implement jack lo- cated as shown below (1) every 50 hours of use. Use Case IH AkcelA Multi-Purpose Grease 251H EP or equivalent. (See Fig. # 5-42, & Fig. # 5-43) (Approx. 3 Pumps) Fig.

  • Page 144: Storage

    5 - MAINTENANCE STORAGE Preparing For Storage WARNING Crushing Hazard! planter. Failure to comply could result in death or serious injury. WARNING Equipment Rolling Hazard! tions. Failure to comply could result in death or serious injury. 1. Store the planter inside for protection from the weather. the wheels and parking stands to prevent sinking into the soil.

  • Page 145: Cradle Lift Arm Transport Locks

    5 - MAINTENANCE The wing transport locks MUST be installed on the cradle lift Cradle lift arm transport locks are provided for the two cradle lift arms on the planter’s left and right wing assemblies. (See Fig. # 5-47) The cradle lift arm transport locks MUST be installed on the The wing transport locks have a designated storage position on the left wing.

  • Page 146: Wing Wheel Arm Transport / Storage Locks

    5 - MAINTENANCE Wing Wheel Wing wheel arm transport / storage locks are provided for the Arm Transport two wing wheel arms on the planter’s left and right toolbar Stowed / Storage Lock wing assemblies. The wing wheel arm transport / storage Position locks MUST be installed as shown in (Fig.
  • Page 147 5 - MAINTENANCE IMPORTANT (Optional Row Unit Lift) position on the planter when not in use. Wing wheel arm transport / storage locks are provided for the two wing wheel arms on the planter’s left and right toolbar wing assemblies. The wing wheel arm transport / storage Wing Wheel locks MUST be installed as shown in (Fig.
  • Page 148 5 - MAINTENANCE A hydraulic hitch lock is located at the right front side of the ground clearance is needed and the machine is being serviced. To install the the 3/8” X 3-1/4” Clevis Pin B Hair Pin Clip C . Fig.
  • Page 149 5 - MAINTENANCE 6. Remove the jack handle from the stowed position. (See WARNING Fig. # 5-57) CRUSH HAZARD Jack • Install the jack locking pin on the implement jack before Handle Stowed the implement jack to the ground. Position Jack Handle Failure to comply could result in death or seri-...
  • Page 150 5 - MAINTENANCE engage the lower gearing. (See Fig. # 5-60) make the rotation of the handle easier. (See Fig. # 5-59) 2-Speed Shifting Jack Fig. # 5-62 With a Pushing, Twisting Motion, Set the Jack Handle in High Gear 9.
  • Page 151 5 - MAINTENANCE 11. If equipped with the Hitch Stand A Hitch Pin B Hitch Stand A to the ground. Fig. # 5-64 Hitch Stand Shown Up Position Fig. # 5-65 Hitch Stand Shown Down Position WARNING CRUSH HAZARD • Install the Hitch Pin on the hydraulic hitch before dis- implement jack to the ground.

  • Page 152: Liquid Fertilizer System

    5 - MAINTENANCE NOTICE: Be sure that the water is not released on any electrical components or on any other equipment that may be sen- sitive or damaged due to water and/or high pressure. Equipment damage may result. Liquid Fertilizer System system until it is drained.
  • Page 153 5 - MAINTENANCE NOTE: Follow the manufacturer's instructions for system soap and water until all material is removed. Reinstall the preparation and proper concentration for your winter con- ditions. NOTE: Leave the applicator lines and check valves open to NOTE: aid evaporating moisture from the system.
  • Page 154 5 - MAINTENANCE This Page Is Intentionally Left Blank 5-32...

  • Page 155: Troubleshooting

    6 - TROUBLESHOOTING 6 - TROUBLESHOOTING SYMPTOM(S) Problem Possible Cause Correction Check hydraulic performance and Low vacuum or Tractor output less than required. capacity. Incorrect hydraulic connections. Connect as recommended. Flow” alarm. Flow control improperly adjusted. Set as recommended. Worn fan motor. Replace motor.
  • Page 156 6 - TROUBLESHOOTING Problem Possible Cause Correction Tractor engine RPM too low reducing Increase engine speed to increase hy- Planter frame pump output. draulic pump output. does not raise to Tractor hydraulic system not operating Tractor hydraulic system needs to be ser- full up position.

  • Page 157: Electronics

    6 - TROUBLESHOOTING Electronics The new electronics on the Yieldtrac Planter Frame (3) (1) are located on the left and right side of the center bar. Fig. # 6-1 Right Side ECU Locations Shown Fig. # 6-2 Left Side ECU Location Shown The planter power and control harnesses are connected to the ECU’s: •...

  • Page 158: Planter Electronics

    6 - TROUBLESHOOTING Planter Electronics Liquid Fertilizer Harness The electronics on the Yieldtrac Planter Bar 36R22 use Electronic Control Units (ECUs) as the primary components planter control system. 7-Pin Extension Harness current protected outputs thus reducing the number of fuses required.
  • Page 159 7 - SPECIFICATIONS 7 - SPECIFICATIONS Wing Wheel # of Number of Model Spacing Spacing Spacing Rows Wing Wheels (in) Spacing (Standard) (Optional) 16R30 Single Tandem 24R20 Single Tandem 24R22 Single Tandem Single Tandem 24R30 (8 Optional) (Dual 54” Optional) 32R15 Dual Tandem 30”...
  • Page 160 7 - SPECIFICATIONS Wing Float: Do not exceed slopes with Table “A” grades greater than indicated in table, or damage to the machine may result. Fig. # 7-1 Wing Float (Upward Angle) Model Wing Float Up Angle Wing Float Down Angle 24R-20 24R-22 24R-30...

  • Page 161: Specifications

    7 - SPECIFICATIONS Planter Over All Width: • (Transport position with or without markers) (See Fig. # 7-3 and Table B) “Dim A” Table B Fig. # 7-3 Transport Position Planter Width. With, or Without Markers Model Over All Width Transport Position (“Dim A”) Over All Length &...
  • Page 162 7 - SPECIFICATIONS Planter Field Position Dimensions: Planter Field Down & Up Position Length: • From quick hitch pin center to rear of wing wheel. (See Planter Width: Fig. # 7-5 & Table D) • Field down position. (See Fig. # 7-5 & Table D) “Dim B”...
  • Page 163 7 - SPECIFICATIONS Planter Undercarriage (center to center & width) (See Fig. # 7-6 & Table E) “Dim A” “Dim B” Fig. # 7-6 Undercarriage Center to Center and Width Undercarriage Center to Center and Width “Dim A” “Dim B” “Dim A”...
  • Page 164 7 - SPECIFICATIONS Planter Weights: Planter Weights 24R20 Weight Total Without Optional Row Marker 1/2 Fully Loaded Weight and Row Cleaners Fully Loaded Weight With Optional Row Marker and 1/2 Fully Loaded Weight Row Cleaners Fully Loaded Weight Planter Weights 24R22 Weight Total Without Optional Row Marker...

  • Page 165: Planter Height

    7 - SPECIFICATIONS Planter Height WARNING CRUSH HAZARD partially unfolded: See Dimension “A” (See Fig. # 7-7 & • KEEP CLEAR table F) • Markers actuate automatically. Failure to comply could result in death or serious injury. DANGER Pay attention to overhead power lines and hanging clearance for safety.

  • Page 166: Torque - Hydraulic Tubes And Fittings

    7 - SPECIFICATIONS Torque – Hydraulic Tubes and Fittings O-Ring Boss Plugs, Adjustable Tube Nuts for 37° Flared Fittings 37 ° Seats Tubing OD ft-lbs ft-lbs Size Thread Size Inches 7/16-20 5/16 1/2-20 9/16-18 12.7 3/4-18 15.9 7/8-14 19.1 1-1/6-12 22.2 1-3/16-12 25.4...

  • Page 167: Torque - Fasteners

    7 - SPECIFICATIONS Torque – Fasteners Society of Automotive Engineers (SAE) fastener torque NOTE: NOTE: Thick nuts must be used with Grade 8 bolts. SAE Grade No. Grade 2 Grade 5 Grade 8 (See Note below.) Bolt Head (See Note below.) ft-lbs ft-lbs...

  • Page 168: Metric International Standards Organization (Iso) Fastener Torque

    7 - SPECIFICATIONS Metric International Standards Organization (ISO) Fastener Torque NOTE: ISO Class No. 10.9 12.9 Bolt Head 10.9 12.9 (See Note below.) ft-lbs ft-lbs ft-lbs Bolt Size Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Because of the low ductility range is to be determined individually for each application.

  • Page 169: Forms And Declarations

    8 - FORMS AND DECLARATIONS 8 - FORMS AND DECLARATIONS...
  • Page 170 8 - FORMS AND DECLARATIONS This Page Is Intentionally Left Blank...
  • Page 171 8 - FORMS AND DECLARATIONS Model Number: Serial Number: DEALER NOTE: Inspection times for these checks are not reimbursable as warranty. Shipping damage claims are determined to be necessary due to defects in material or workmanship are reimbursable under warranty. Dealer to inspect the following items and adjust if necessary: Check that the planter is complete as ordered.
  • Page 172 This Page Is Intentionally Left Blank...
  • Page 173 8 - FORMS AND DECLARATIONS Model Number: Serial Number: DEALER NOTE: Inspection times for these checks are not reimbursable as warranty. Shipping damage claims are determined to be necessary due to defects in material or workmanship are reimbursable under warranty. Dealer to inspect the following items and adjust if necessary: Check that the planter is complete as ordered.
  • Page 174 This Page Is Intentionally Left Blank...
  • Page 175 Index Symbols 1 - GENERAL INFORMATION ..........................1-1 7200 ..................................3-5 8900) - 367010A ..............................3-5 9200 ..................................3-11 9300 - 367011A ..............................3-11 Adjusting Alignment By Gap At Front Idler ......................5-8 Adjusting The Clevis ............................4-25 Advanced Farming System (AFS) Display ......................3-13 Advanced Seed Meter (ASM) components ......................
  • Page 176 GENERAL INFORMATION ........................1-1 4-1 5-1 General Maintenance Safety ..........................2-3 Hazardous Chemicals ............................2-6 Helpful Hints ................................2-9 Hydraulic Connections ............................3-4 Hydraulic Flow Requirement ..........................3-2 Implement connectors ............................3-13 Implement Jack Grease Points ..........................5-21 In-Furrow Fertilizer Applicators ..........................4-38 Initial Track Adjustment ............................
  • Page 177 ..............................4-34 ............................4-35 4-36 4-37 Personal Protective Equipment (PPE) ........................2-5 Personal safety ..............................2-1 Planter Checks and Maintenance .......................... 5-2 ................... 7-7 Planter lighting ..............................3-14 Planter Preparation ..............................4-1 Planter Preparation Frame Control ........................4-2 ............................. 7-1 Planter Undercarriage (center to center) ....................... 7-5 Planter Weight................................
  • Page 178 Transporting on public roads ..........................3-1 Transporting on Public Roads ..........................2-10 Transport Locks ..............................2-12 TRANSPORT OPERATIONS ..........................3-1 Transport Position Dimensions With Row Markers ....................7-3 TROUBLESHOOTING ............................6-1 Unfolding and Folding the Planter .......................... 4-2 Utility safety ................................2-7 Vacuum ................................
  • Page 180 11202 38th St S Horace, ND 58047...

This manual is also suitable for:

Yieldtrac

Table of Contents
