BatteryMonitor Installation Guide
www.seplos.com

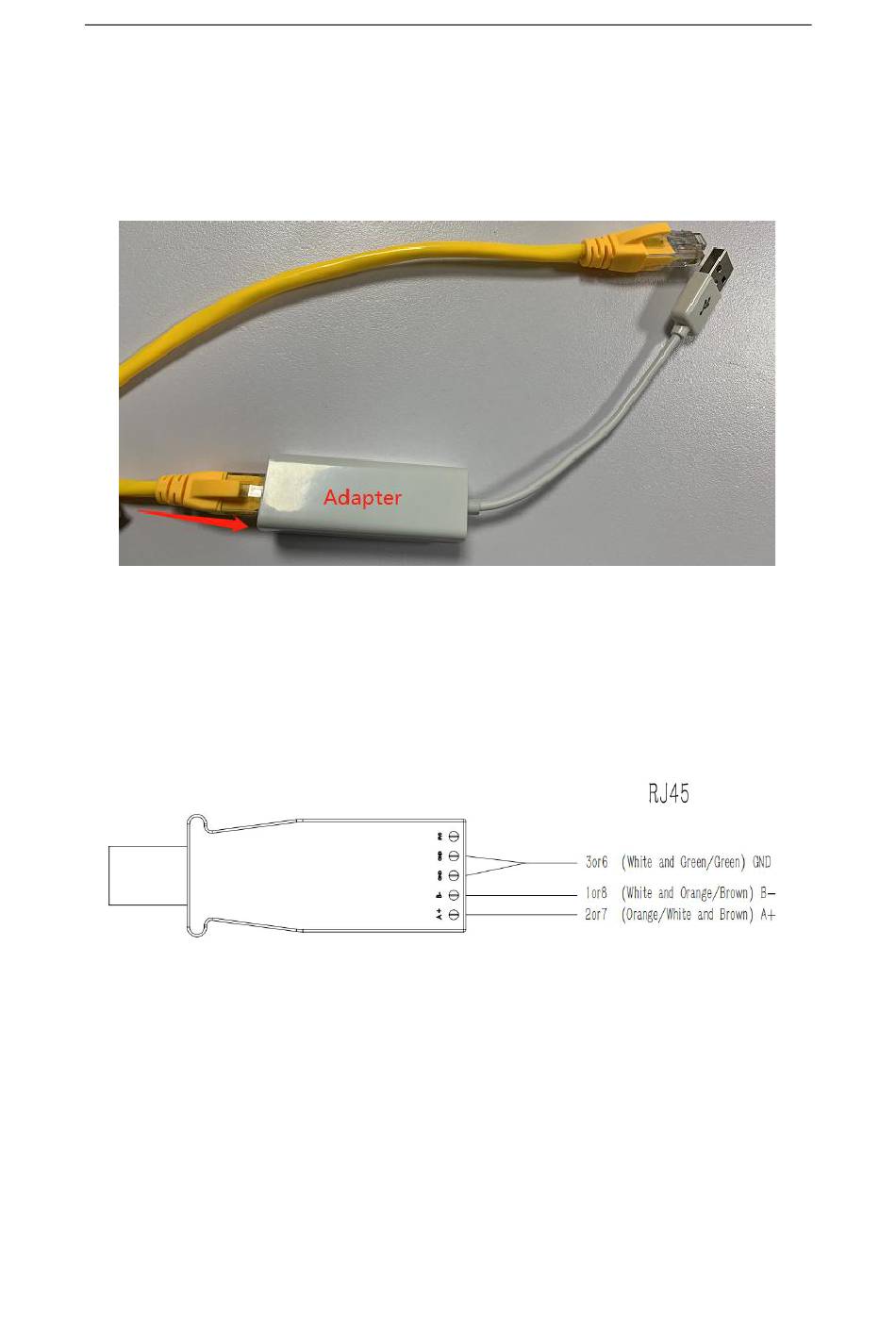

Battery Connection - RS485 to USB adapter
1. SEPLOS USB-RS485 adapter, just connect BMS with battery via SEPLOS
USB-RS485 adapter.
2. If the adapter needs wiring, connect the RJ45 cables according to the
following wire diagram.
3. If you buy adapters on the market, make sure the wiring diagram is as
follows, otherwise, the BatteryMonitor software can not be recognized.
