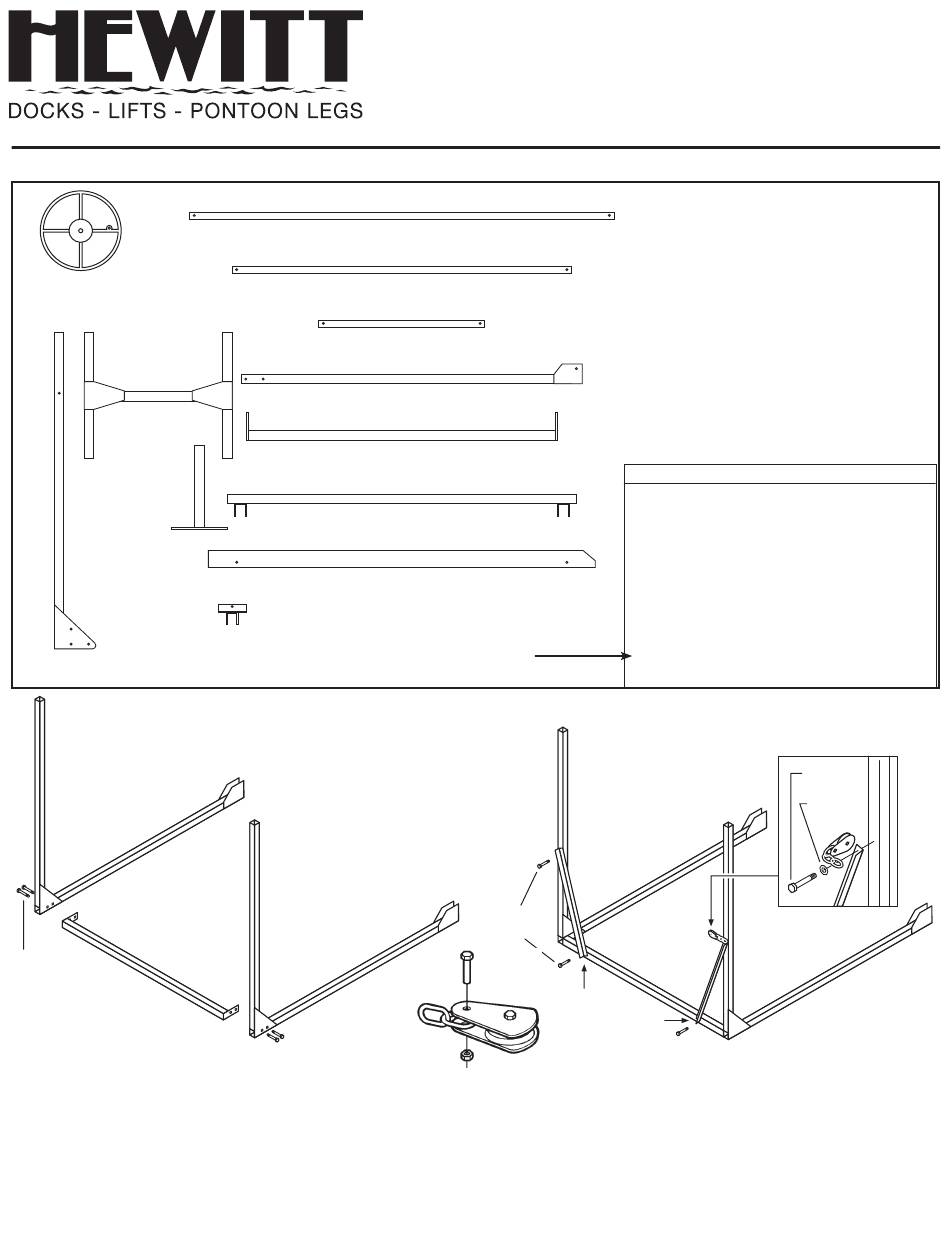

HEWITT 1150 Assembly Instructions

Before beginning assembly, read instructions completely and check to see that you have the following parts:
LWWL
WINCH WHEEL
NAM0915
LIFT ARMS
(2 per lift)
2 - Leveling
Legs – LL181
(In hardware bag)
NAM0906
CORNER POST
(2 per lift)
2 x 2 x 68"
CORNER
POST
STEP 1
LONG
BASE
Assemble Long Bases, Corner Posts and Front Cross
CORNER
Base using four 3/8" x 3" bolts and four 3/8" nuts.
POST
LONG
BASE
3/8" x 3"
Bolts
FRONT BASE
3/8" x 3"
Bolts
FRONT BASE
STEP 2
Attach 3-link chain to one of the Teardrop Pulleys. (Do not over tighten pulley side plates – pulley must turn freely). Choose
which side the winch will be mounted on. On the non-winch side, attach the Front Angle Brace using two 3/8" x 2-1/2" bolts
and two 3/8" nuts. On the winch side, attach the bottom of the Front Angle Brace with a 3/8" x 2-1/2" bolt and 3/8" nut. Place
the flat washer on a 3/8" x 3" bolt. Run the bolt through the last link on the pulley chain, the top hole of the Angle Brace and
the Corner Post. Secure with a 3/8" nut.
HEWITT MACHINE & MFG, INC.
NAM0908 45 ANGLE BRACE (2 per lift)
1-1/2 x 1-1/2 x 90"
NAM0902 PULL ARM (2 per lift)
1-1/2 x 1-1/2 x 72"
NAM0909 FRONT ANGLE BRACE (2 per lift)
1 x 1-1/4 x 35-1/4"
NAM0907 LONG BASE (2 per lift)
NAM0904 FRONT CROSS BASE (1 per lift)
2 x 2 x 65-7/8"
NAM0903 BED CROSS BEAM (2 per lift)
2 x 2 x 72"
NAM0910 CARPETED WOOD BUNKS (2 per lift)
2 x 4 x 84"
4 - Bunk Brackets – NAM0930
NOTE: Part Shipped in Corner Post.
CORNER
POST
LONG
BASE
CORNER
POST
LONG
BASE
3/8" x 3-1/2"
Bolts
3/8" x 3-1/2"
Bolts
1150 LB. (67" X 72") PERSONAL
ASSEMBLY INSTRUCTIONS
2 x 2
(In hardware bag)
3/8" x 2-1/2"
Bolt
3/8" x 2-1/2"
ANGLE BRACES
Bolt
FRONT
ANGLE BRACES
"Quality Since 1971"
Box 111 Nicollet, MN 56074
www.hewittrad.com
NAASSY1150 | 12-21 | LIFT_MINI_ NAASSY1150.INDD
(AS OF 2015) L0A11-PW
1- HARDWARE BAG NA1150
2 - Leveling Legs – LL181
1 - B1500 Winch – LWB15
1 - Winch Bolt Bag – LWBBS
1 - 1/4" x 18-1/2' Cable – L1C18121
1 - Spinner Knob Only – LKNOB1
3 - 2" Tear Drop Pulleys – L1P2T
2 - 5/16" 2-Link Chain – L1PC5/162L
6 - 2" x 2" Black Plastic Plugs – D1PC2SQ
2 - 1-1/2" x 1-1/2" Black Plastic
Plugs – D1PC1SQ
2 - 1/4" Cable Clamp – L1CC1/4
8 - 1/2" Lock Nuts – NN12L
4 - Bunk Brackets – NAM0930
1 - Assembly Sheet – NAASSY1150
1 - Moisture Bag
1 - BOLT BOX – NAM09BB
1 - 3/16" SS 3-Link Chain w/.39 opening –
L1PC3/163L
5 - 3/8" x 2-1/2" SS Bolts – NB38212G
7 - 3/8" x 3" SS Bolts – NB383G
2 - 3/8" x 4" SS Bolts – NB384G
4 - 3/8" x 3-1/2 SS Bolts – NB38312G
30 - 3/8" Brass Nuts – NN38S
4 - 3/8" x 2-1/2" SS Carriage Bolts – NB38212C
2 - 1/2" x 3" SS Bolts – NB123G
6 - 1/2" x 4-1/2" SS Bolts – NB12412G
2 - 1/2" x 1" SS Set Screws – LLSS
5 - 3/8" SS Flat Washer – NW38FL
PULLEY WITH
3-LINK CHAIN
FRONT
3/8" x 2-1/2"
Bolt
3/8" x 2-1/2"
Bolt
(507) 225-3421
MINI LIFT
PULLEY WITH
3-LINK CHAIN
3/8" x 3"
Bolt
3/8" Flat
Washer
3/8" x 3"
Bolt
3/8" Flat
Washer
