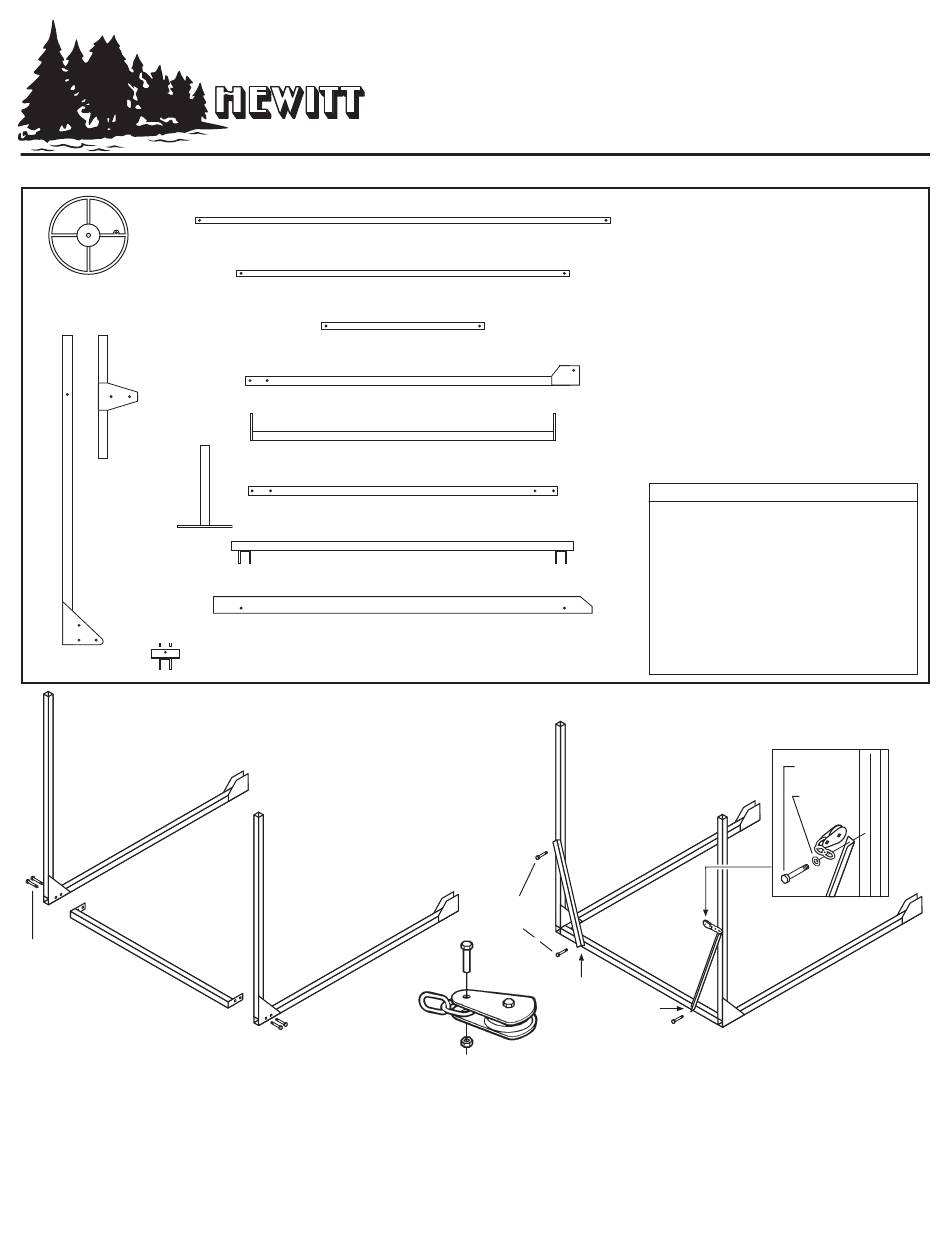

HEWITT L0A09 Assembly Instructions

Before beginning assembly, read instructions completely and check to see that you have the following parts:
LWWS
WINCH WHEEL
NAM0914
"H" UPRIGHT
(4 per lift)
2 - Leveling
Legs – LL181
(In hardware bag)
NAM0906
CORNER POST
(2 per lift)
2 x 2 x 68"
CORNER
POST
4 - Bunk Brackets – NAM0930
STEP 1
LONG
BASE
Assemble Long Bases, Corner Posts and Front Cross
CORNER
POST
Base using four 3/8" x 3" bolts and four 3/8" nuts.
LONG
BASE
3/8" x 3"
Bolts
FRONT BASE
3/8" x 3"
Bolts
FRONT BASE
STEP 2
Attach 3-link chain to one of the Teardrop Pulleys. (Do not over tighten pulley side plates – pulley must turn freely). Choose
which side the winch will be mounted on. On the non-winch side, attach the Front Angle Brace using two 3/8" x 2-1/2" bolts
and two 3/8" nuts. On the winch side, attach the bottom of the Front Angle Brace with a 3/8" x 2-1/2" bolt and 3/8" nut. Place
the flat washer on a 3/8" x 3" bolt. Run the bolt through the last link on the pulley chain, the top hole of the Angle Brace and
the Corner Post. Secure with a 3/8" nut.
HEWITT MACHINE & MFG, INC.
NAM0908 45 ANGLE BRACE (2 per lift)
1-1/2 x 1-1/2 x 90"
NAM0902 PULL ARM (2 per lift)
1-1/2 x 1-1/2 x 72"
NAM0909 FRONT ANGLE BRACE (2 per lift)
1 x 1-1/4 x 35-1/4"
NAM0907 LONG BASE (2 per lift)
2 x 2
NAM0904 FRONT CROSS BASE (1 per lift)
2 x 2 x 65-7/8"
NAM0913 "H" CROSS BAR (2 per lift)
2 x 2 x 66-3/4"
NAM0903 BED CROSS BEAM (2 per lift)
2 x 2 x 72"
NAM0910 CARPETED WOOD BUNKS (2 per lift)
2 x 4 x 84"
(In hardware bag)
CORNER
POST
LONG
BASE
CORNER
POST
LONG
BASE
3/8" x 3"
Bolts
3/8" x 3"
Bolts
"Quality Since 1971"
www.hewitt-roll-a-dock.com
900 LB. (67" X 72") PERSONAL
ASSEMBLY INSTRUCTIONS
3/8" x 2-1/2"
Bolt
FRONT
3/8" x 2-1/2"
ANGLE BRACES
Bolt
FRONT
ANGLE BRACES
Box 111 Nicollet, MN 56074
e-mail: info@hewitt-roll-a-dock.com
NAASSY900 | 10-11 | LIFT_MINI_ NAASSY900.INDD
1- HARDWARE BAG NAM0950
2 - Leveling Legs – LL181
1 - B1200 Winch – LWB12
1 - Winch Bolt Bag – LWBBS
1 - 3/16" x 18-1/2' Cable – L1C18123
1 - Spinner Knob w/ Bolt – LKNOB
3 - 2" Tear Drop Pulleys – L1P2T
2 - 5/16" 2-Link Chain – L1PC5/162L
6 - 2" x 2" Black Plastic Plugs – D1PC2SQ
2 - 1-1/2" x 1-1/2" Black Plastic
Plugs – D1PC1SQ
2 - 3/16" Cable Clamp – L1CC3/16
8 - 1/2" Lock Nuts – NN12L
4 - Bunk Brackets – NAM0930
1 - Assembly Sheet – NAASSY900
1 - Moisture Bag
1 - BOLT BOX – NAM09BB
1 - 3/16" 3-Link Chain – L1PC3/163L
6 - 3/8" x 2-1/2" Bolts – NB38212G
12 - 3/8" x 2-3/4" Bolts – NB38234G
4 - 3/8" x 3" Bolts – NB383G
2 - 3/8" x 3-3/4" Bolts – NB38334G
28 - 3/8" Nuts – NN38S
4 - 3/8" x 2-1/2" Carriage Bolts –NB38212C
2 - 1/2" x 3" Bolts – NB123G
6 - 1/2" x 4-1/2" Bolts – NB12412G
2 - 1/2" x 1-1/2" Set Screws – LLSS
1 - 3/8" Flat Washer – NW38FL
PULLEY WITH
3-LINK CHAIN
PULLEY WITH
3-LINK CHAIN
3/8" x 2-1/2"
Bolt
3/8" Flat
Washer
3/8" x 2-1/2"
Bolt
3/8" x 2-1/2"
Bolt
(507) 225-3421
MINI LIFT
L0A09
3/8" x 2-1/2"
Bolt
3/8" Flat
Washer
