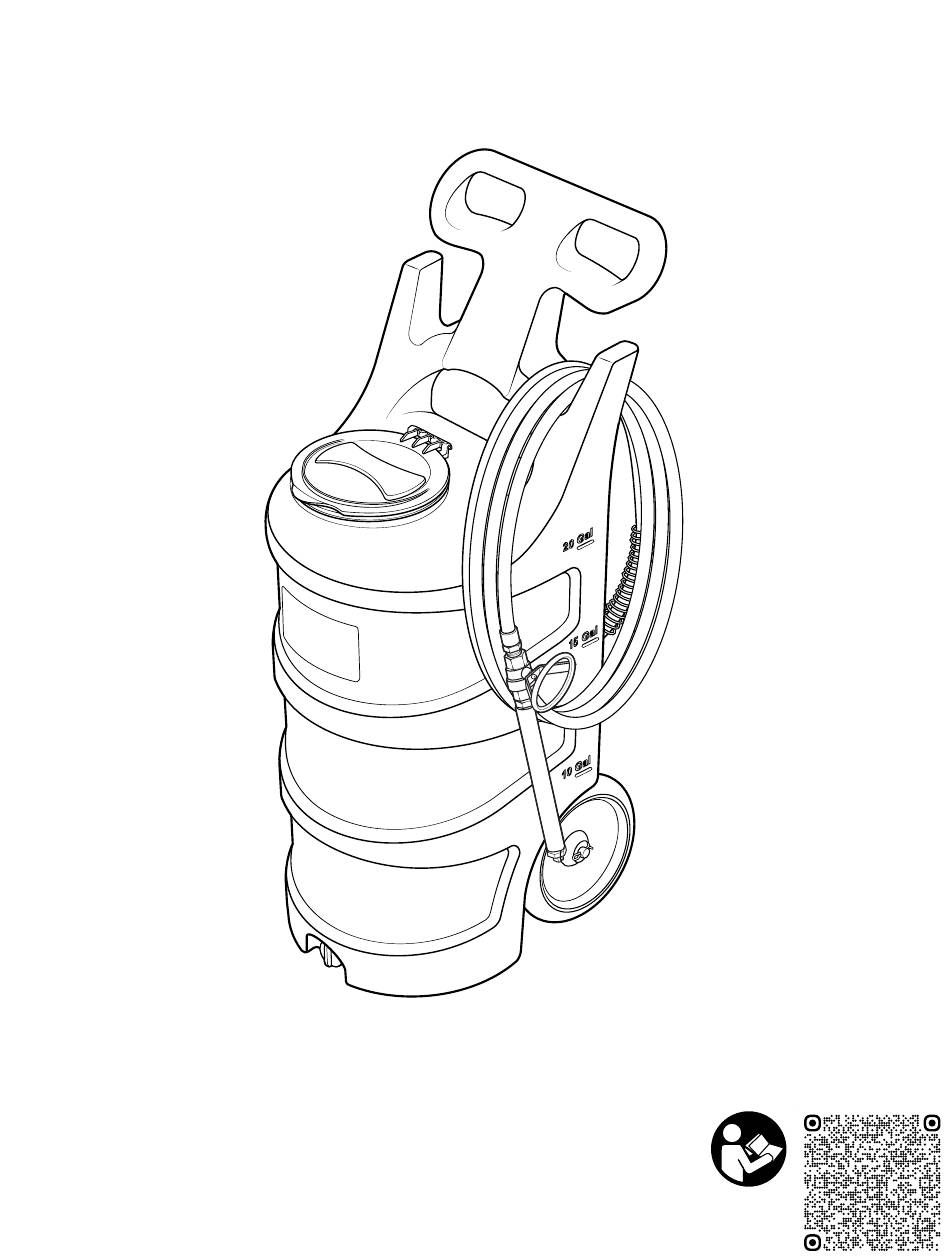

20 Gallon Gel Unit
Service Manual
GI-20N
READ ALL INSTRUCTIONS BEFORE USING OR
SERVICING THIS UNIT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions)
Scan this code for
service manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GI-20N and is the answer not in the manual?

Questions and answers

Related Manuals for Foamit GI-20N

Summary of Contents for Foamit GI-20N

  • Page 1 20 Gallon Gel Unit Service Manual GI-20N READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions) service manual...
  • Page 2 Always flush the unit with fresh water thoroughly when switching from an alkaline to an acid or an acid to an alkaline. Model: GI-20N V20240503 • Page 2 of 12...

  • Page 3: Protect The Environment

    • Crescent wrench (2x) • #2 Phillips head screwdriver • ⁷/16 in. (11 mm) open-ended wrench • #3 Phillips head screwdriver • Flat head screwdriver • Hose cutters • Thread seal tape • Knife Model: GI-20N V20240503 • Page 3 of 12...
  • Page 4 50 psi (3.4 bar). If the air gauge reads more or less than 50 psi (3.4 bar), adjust the pressure by turning the knob on the top of air regulator. Model: GI-20N V20240503 • Page 4 of 12...

  • Page 5: Tank Assembly

    * Additional colors available, see datasheet for options. Item number Description 5 TNK-20N Tank - 20 gallon natural - portable Drain plug assembly for portable 6 DPA units - includes gasket Model: GI-20N V20240503 • Page 5 of 12...
  • Page 6 Wheel - 10 in. - non-marking Flat washer for 5/8 in. od pipe or axle - 12 FW58 stainless steel - 0.64 in. id x 1.2 in. od x 0.05 in. thk WHLA-AXL15 Model: GI-20N V20240503 • Page 6 of 12...

  • Page 7: Back Plate Assembly

    - 20 mesh SS - black bowl ⅜ in. id blue hose - hybrid TPE - 8 H38BL-F available per ft. Screw band clamp - stainless 9 SSC38 steel - for 3/8 in. hose Model: GI-20N V20240503 • Page 7 of 12...

  • Page 8: Optional Components

    Stainless steel union - ¼ in. FPT Tsunami water separator/air dryer - 8 WS-20CFM 20 CFM - 1/ 4 in. FPT ports Air fitting ¼ MPT x plug - nickel-plated 9 AP14 brass WSA-20CFM* *Optional assembly sold separately Model: GI-20N V20240503 • Page 8 of 12...
  • Page 9 8 SSA14BKH ¼ in. NPT x ¼ in. NPSM 9 SSSFN12 Serrated flange nut - stainless - ½ in. Air fitting ¼ MPT x plug - nickel- 10 AP14 plated brass RGA-R25-PSP Model: GI-20N V20240503 • Page 9 of 12...

  • Page 10: Suction Assembly

    5 HBSSEL1438 ⅜ barb elbow Hex head poly bushing ¾ MPT x 6 HHPB3414 ¼ FPT Ball valve - PVC - 3/ 4 NPT to 3/ 4 FNPT 7 BVPVC34MF EPDM seal SCTNA-PF Model: GI-20N V20240503 • Page 10 of 12...

  • Page 11: Hose Assembly

    * Additional colors available, see datasheet for options. AKSS12: Stainless anti-kink spring for ½ in. hose Item number Description 4 AKSS12 Stainless anti-kink spring for ½ in. hose AKSS12 HA12BL-30 Model: GI-20N V20240503 • Page 11 of 12...

  • Page 12: Wand Assembly

    Additional Spray Tips Additional spray tips can be found in parts package Item number Description Spray tip - 15 degree fan - 1.0 GPM - 8 ST1510SS stainless - 1/ 4 MPT PWA1210-ST-GEL Model: GI-20N V20240503 • Page 12 of 12...
