Ness Nview 2 104-624 Quick Start Manual

Ness Nview 2 104-624 Quick Start Manual

8x4 hd cctv kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nview 2 104-624 and is the answer not in the manual?

Questions and answers

Related Manuals for Ness Nview 2 104-624

Summary of Contents for Ness Nview 2 104-624

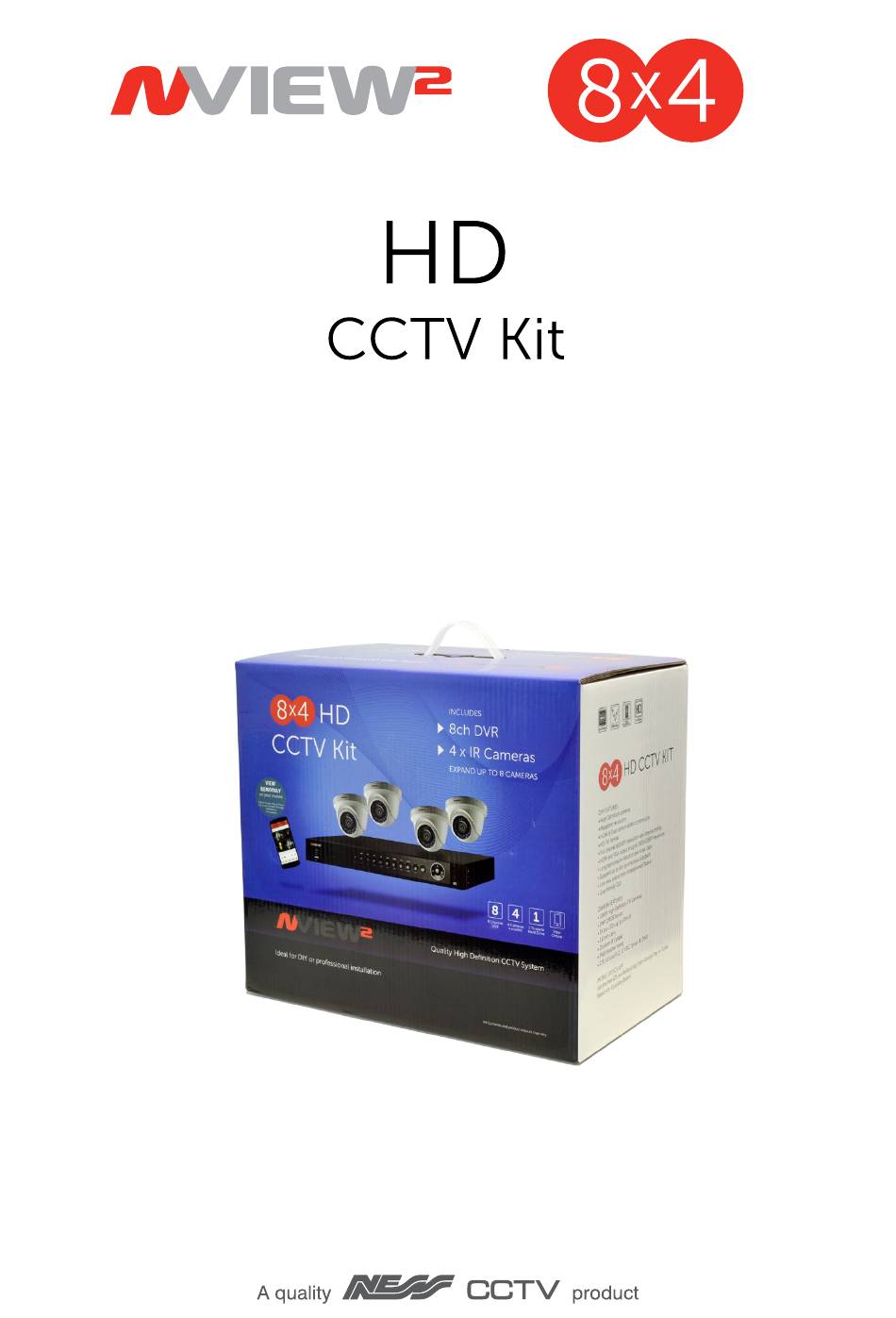

  • Page 1 Quick Start Guide...
  • Page 2 Ness. Ness reserves the right to make changes to features and specifications at any time without prior notification in the interest of ongoing product development and improvement.
  • Page 3 Digital Video Recorder Quick Start Guide Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 Digital Video Recorder Quick Start Guide Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected. Cautions: Injury or equipment damage may occur if any of the cautions are neglected.

  • Page 5: Applicable Models

    Digital Video Recorder Quick Start Guide Applicable Models This manual is applicable to the models listed in the following table. Model Type 104-624 Turbo HD DVR Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a potentially hazardous situation, which if not avoided,...

  • Page 6: Description Of Panels

    Digital Video Recorder Quick Start Guide Description of Panels 1.1 Front Panel Figure 1. 1 Front Panel Table 1. 1 Description of Front Panel Name Function Description POWER Turns yellow when the device s running. Flickers red when data is being read from or written to HDD, and STATUS turns yellow when the SHIFT function is realized.
  • Page 7 Digital Video Recorder Quick Start Guide Name Function Description Enters numeral “7”; Enters letters “PQRS”; 7/PQRS/REC Accesses to manual record interface; Manually enables/disables record. Enters numeral “8”; Enters letters “TUV”; 8/TUV/PTZ Accesses PTZ control interface. Enters numeral “9”; Enters letters “WXYZ”; 9/WXYZ/PREV Multi-channel display in live view.

  • Page 8: Installation And Connections

    Digital Video Recorder Quick Start Guide Installation and Connections 1.2 DVR Installation During the installation of the DVR: 1. Use brackets for rack mounting. 2. Ensure there is ample room for audio and video cables. 3. When installing cables, ensure that the bend radius of the cables are no less than five times than its diameter. 4.
  • Page 9 Digital Video Recorder Quick Start Guide 3. Connect the power cable to the HDD. Figure 1. 4 Connect the power cable 4. Place the HDD on the bottom of the device and then fasten the screws on the bottom to fix the HDD. Figure 1.

  • Page 10: Wiring Of Alarm Input

    Digital Video Recorder Quick Start Guide 1.4 Connections Wiring of Alarm Input The alarm input is an open/closed relay. To connect the alarm input to the device, use the following diagram. If the alarm input is not an open/close relay, please connect an external relay between the alarm input and the device. Figure 1.

  • Page 11: Alarm Connection

    Digital Video Recorder Quick Start Guide Alarm Connection To connect alarm devices to the DVR: 1. Disconnect pluggable block from the ALARM IN /ALARM OUT terminal block. 2. Press and hold the orange part of the pluggable block; insert signal cables into slots and release the orange part. Ensure signal cables are in tight.

  • Page 12: Startup And Shutdown

    Digital Video Recorder Quick Start Guide Menu Playback Maintenance Shutdown Export VCA Search Record Camera Configuration Manual Behavior Normal Normal Schedule Camera General System Info Logout Record General Search Continuous Event Face Search Parameters Network Shutdown Event Advanced Information Capture Import/ People Advanced...

  • Page 13: Activating Your Device

    Digital Video Recorder Quick Start Guide Figure 1. 10 Shutdown 2. Select the Shutdown button. 3. Click the Yes button. 1.8 Activating Your Device Purpose: For the first-time access, you need to activate the device by setting an admin password. No operation is allowed before activation. You can also activate the device via Web Browser, SADP or client software.

  • Page 14: Login And Logout

    Digital Video Recorder Quick Start Guide Figure 1. 12 Warning of Weak Password 1.9 Login and Logout User Login Purpose: If DVR has logged out, you must login the device before operating the menu and other functions. Steps: Select the User Name in the dropdown list. Figure 1.

  • Page 15: Configuring The Signal Input

    Digital Video Recorder Quick Start Guide log in again. Steps: Enter the Shutdown menu. Menu > Shutdown Figure 1. 15 Logout Click Logout. After you have logged out the system, menu operation on the screen is invalid. It is required to input a user name and password to unlock the system.

  • Page 16: Using The Setup Wizard

    Digital Video Recorder Quick Start Guide be connected with the same type of video source, i.e., the analog or HD-TVI or AHD video input.  In the live view interface, when there is no video signal of the analog channel, the corresponding connectable video signal type message can be displayed on the screen.

  • Page 17: Adding Ip Cameras

    Digital Video Recorder Quick Start Guide Figure 1. 18 Network Settings 2. Select the General tab. 3. In the General Settings interface, you can configure the following settings: NIC Type, IPv4 Address, IPv4 Gateway, MTU and DNS Server. If the DHCP server is available, you can check the checkbox of DHCP to automatically obtain an IP address and other network settings from that server.

  • Page 18: Live View

    Digital Video Recorder Quick Start Guide Figure 1. 19 Add IP Camera 3. Select the detected IP camera and click the Add button to add it directly, and you can click the Search button to refresh the online IP camera manually. Or you can choose to custom add the IP camera by editing the parameters in the corresponding text field and then click the Add button to add it.
  • Page 19 Digital Video Recorder Quick Start Guide After rebooting all the manual records enabled are canceled. Steps: 1. On the live view window, right lick the window and move the cursor to the Start Recording option, and select Continuous Record or Motion Detection Record on your demand.

  • Page 20: Accessing By Web Browser

    Digital Video Recorder Quick Start Guide Accessing by Web Browser You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, please contact with your dealer or the nearest service center.
  • Page 21 Digital Video Recorder Quick Start Guide Figure 1. 23 Login Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in. You may have to close the web browser to finish the installation of the plug-in. After login, you can perform the operation and configuration of the device, including the live view, playback, log search, configuration, etc.
