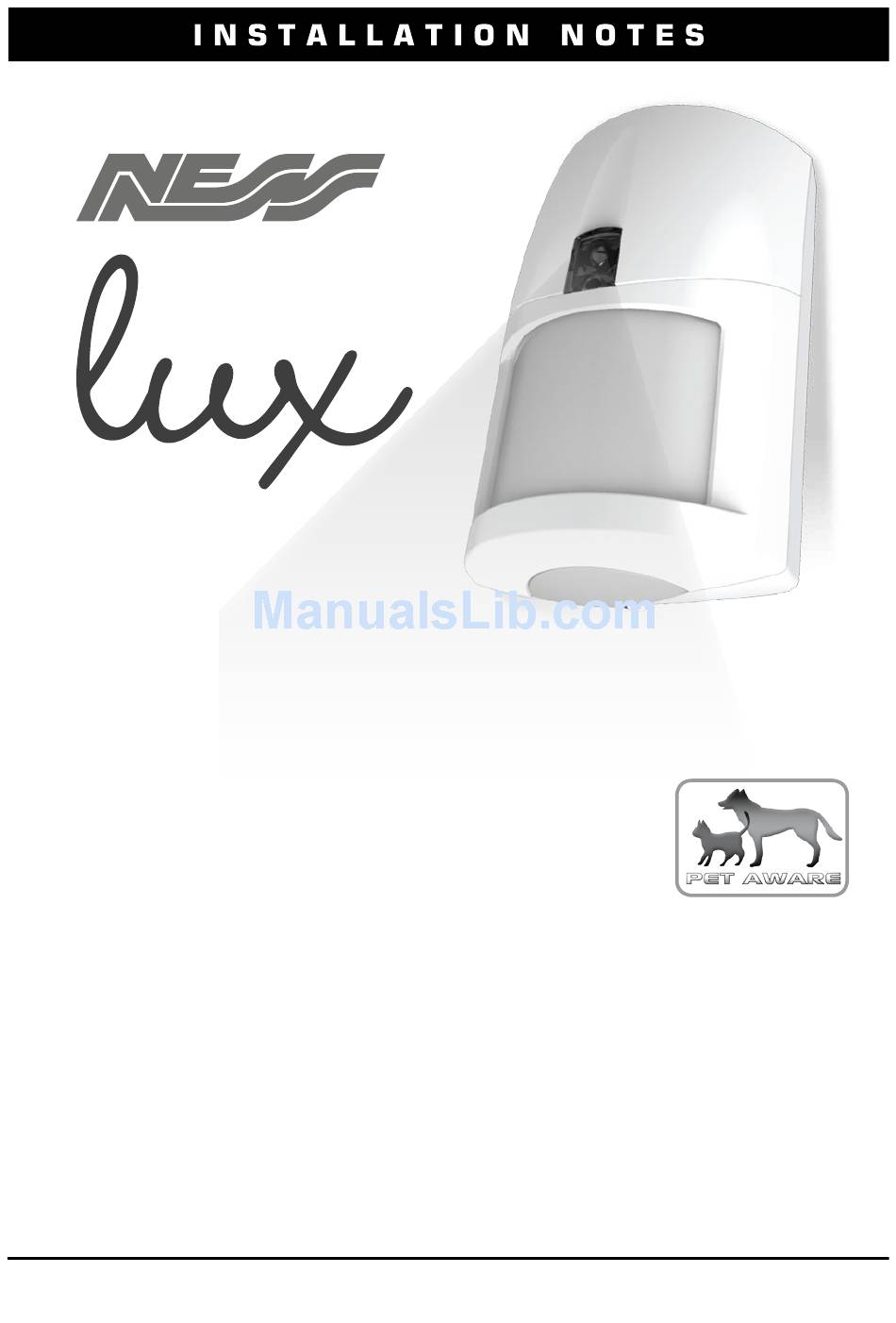

NESS LUX WIRED PIR WITH NIgHTLIgHT
• Quad element pyro sensor
• 15m x 15m wide angle coverage
• Look down 'Creep Zone'
• Selectable Standard and Pet Aware modes
• Adjustable sensor mask for No Creep and Pet modes
• Supports Home Automation with fast response output
SELECTAbLE PET AWARE
• White LED motion activated night-light
• Adjustable Digital Pulse Count
• Adjustable Digital Range
• High R.F. and E.S.D. immunity
• High white light immunity
• High quality patented Fresnel lens
• Capsule design with sealed electronics
• Front cover tamper protection
• Totally silent solid state relay with high immunity to magnetic fields
• Optional mounting bracket available
LUX Hardwired - Installation Notes
REV1.1
Advertisement
Table of Contents
Related Manuals for Ness LUX
Summary of Contents for Ness LUX
- Page 1 NESS LUX WIRED PIR WITH NIgHTLIgHT • Quad element pyro sensor • 15m x 15m wide angle coverage • Look down ‘Creep Zone’ • Selectable Standard and Pet Aware modes • Adjustable sensor mask for No Creep and Pet modes •...
-
Page 2: Detection Coverage
IntroductIon detectIon coverage Ness LUX HW wired PIR is a unique high per- At the recommended mounting height of formance motion detector with a white LED 2.1m~2.3m, LUX detector coverage is up to 15m night-light. (HIgH range setting) or 12m (LOW range setting). - Page 3 coMPonents White night-light LED blue alarm LED - also glows behind the lens PIR lens (do not paint or cover) Ambient light sensor behind lens Vertical creep zone DIP Switch and masking instructions Inputs / Outputs White night-light LED blue alarm LED PCb locking tabs each side / squeeze both tabs to remove the capsule...
-
Page 4: Mounting Location
3 Drill out a cable entry hole at the top of the LUX Always ensure the detector has a clear line of sight back housing. The cable entry hole hole should... - Page 5 Mask LUX hardwired PIR has a unique sensor mask which allows the PIR to operate in Normal, No Creep and Pet Aware modes. The sensor mask has a hinged action and flips up from the bottom as per the diagrams below.
- Page 6 Ness LUX custom settings are set by dipswitches 1-6. The dipswitches are easily accessible on the sensor capsule. Use a small screwdriver or pen tip to set the switches. SW NAME Range High Pulse Normal Alarm LED Light Mode...
- Page 7 Additional +12V terminal. Example Using Aux1 on your D8x/D16x to turn on the Fast reacting output is low (0v) the LUX HW nightlight from the keypad or even when movement is detected. remotely. D8x/D16x Installer programming Nightlight status output. Pulls low P141E 4E should be ON.
-
Page 8: Specifications
Part No. 100-243 DOCUMENT PART NUMbER 890-467 Rev1.1 Oct 2015 For products: 106-173 Ness LUX Hardwired PIR www.nesscorporation.com © 2015 Ness Corporation Pty Ltd AbN 28 069 984 372 National Customer Service Centre Specifications may change without notice. Ph: 1300 551 991...
