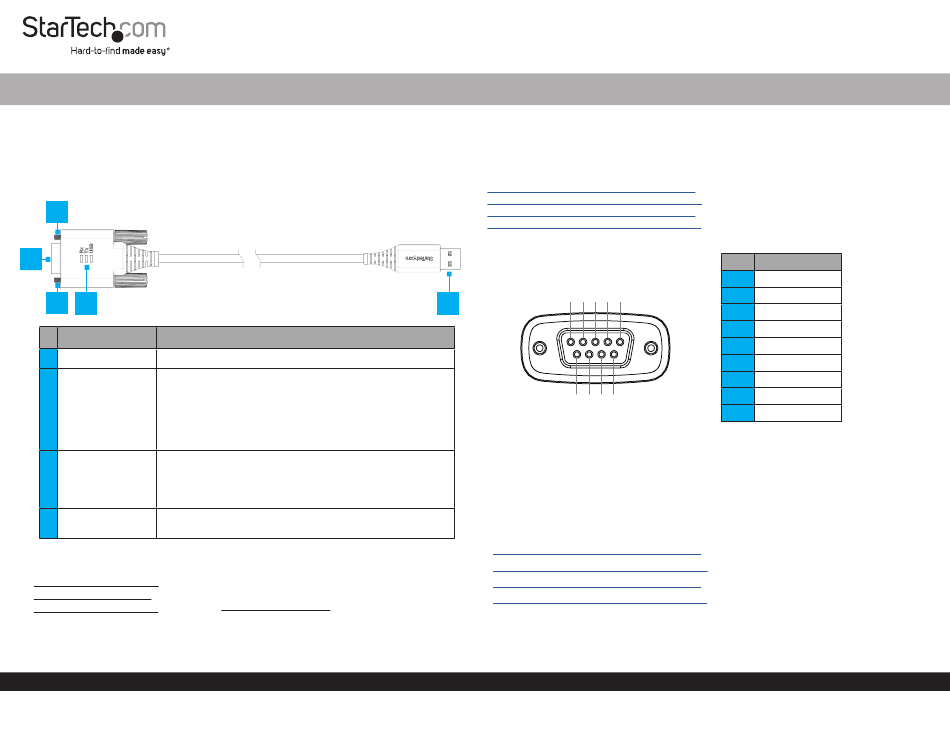

StarTech.com 1P1FFCN-USB-SERIAL Quick Start Manual

FTDI USB-A to RS232 DB9 Null Modem Serial Adapter Cable - M/F
Product ID
1P1FFCN-USB-SERIAL
1P3FFCNB-USB-SERIAL
1P6FFCN-USB-SERIAL
1P10FFCN-USB-SERIAL
2
1
2 3
Component
1 Serial Port DB9 • Connect to a Serial Peripheral Device
• Used to secure the Serial DB9 Port to the Serial
Peripheral Device
• The included DB9 Nuts can be installed for
2 DB9 Screws
compatibility with Serial Peripheral Devices or Cables
• 1P1FFCN-USB-SERIAL comes with the DB9 Nuts
pre-installed and the DB9 Screws included
• Data Receive LED: Flashes Green to indicate activity
• Data Transmit LED: Flashes Yellow to indicate activity
3 LED Indicators
• USB LED: Solid Blue to indicate driver has been
installed, and USB connection enumerated
• Connect the USB to Serial Adapter to an available
4 USB Type A Port
USB-A Port
Package Contents
1P3FFCNB-USB-SERIAL
1P6FFCN-USB-SERIAL
1P10FFCN-USB-SERIAL
• USB to Serial Adapter x 1
• DB9 Nuts x 2
• Quick-Start Guide x 1
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Function
1P1FFC-USB-SERIAL
• USB to Serial Adapter x 1
• DB9 Screws x 2
• Quick-Start Guide x 1
Requirements
• USB Type-A Enabled Computer x 1
For the latest drivers/software, product information, technical specifications, and
declarations of conformance, please visit:
www.StarTech.com/1P1FFCN-USB-SERIAL
www.StarTech.com/1P3FFCNB-USB-SERIAL
www.StarTech.com/1P6FFCN-USB-SERIAL
www.StarTech.com/1P10FFCN-USB-SERIAL
Pinout Diagram
5 4 3 2 1
4
9 8 7 6
DB-9 Female
Installation
Install the Driver and Adapter
Note: Drivers should install automatically in most supported operating systems. If
they do not, please complete the following steps:
1. Navigate to:
www.StarTech.com/1P1FFCN-USB-SERIAL
www.StarTech.com/1P3FFCNB-USB-SERIAL
www.StarTech.com/1P6FFCN-USB-SERIAL
www.StarTech.com/1P10FFCN-USB-SERIAL
2. Click the Drivers/Downloads tab.
3. Under Driver(s), download the appropriate Driver Package for your operating
system.
Quick-Start Guide
Pin RS-232
1 DCD
2 TXD
3 RXD
4
DSR
5
GND
6 DTR
7 CTS
8 RTS
9
RI
Manual Revision: August 27, 2024
