StarTech.com 120B-USBC-MULTIPORT Quick Start Manual

USB-C Multiport Adapter - 2 x HDMI 2.0 HDR - 4K - 2 x USB-A (5Gbps) - GbE - SD / MicroSD - 100W PD
Product ID
120B-USBC-MULTIPORT

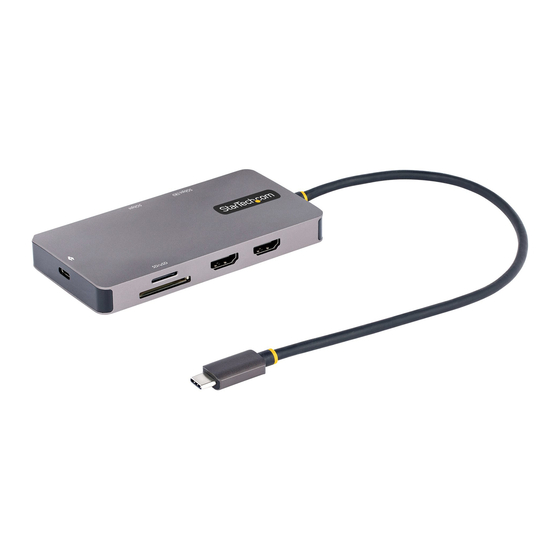

Product Diagram (Side A)
3
2
4
(Side B)
(Side C)
Component
•
•
1
Built-in USB-C Host Cable
•
•
•
2
2 x HDMI Output Ports
•
•
Requirements
For the latest requirements, please visit
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
5 6
8
Function
Connect to a USB-C Port on a Host Computer
USB 3.1 Gen 2 (10Gbps)
DisplayPort 1.4
Power Delivery 3.0 Specification
Connect up to two HDMI Display Devices
HDMI 2.0
Uses MST via DisplayPort 1.4
www.StarTech.com/120B-USBC-MULTIPORT
1
3
MicroSD Card Reader
7
4
SD Card Reader
5 USB-A Data/Charge Port
6
USB-A Data Port
7
Gb Ethernet Port
USB-C 100W Power
8
Delivery Port
Quick-Start Guide
Micro Secure Digital (microSD) 4.0 UHS-II,
•
microSD 3.0, 2.0, 1.1, and 1.0 compatibility
Push a microSD Card, label side up, into
•
the microSD Card Slot
Note: The Host Computer's Operating
•
System (OS) will automatically detect the
SD Card and install the required driver
software
Secure Digital (SD) 4.0 UHS-II, SD 3.0, 2.0,
•
1.1, and 1.0 compatibility
Push an SD Card, label side up, into the SD
•
Card Slot
Note: The Host Computer's Operating
•
System (OS) will automatically detect the
SD Card and install the required driver
software
Connect and/or charge a USB-A peripheral
•
USB 3.1 Gen 1 (5Gbps)
•
Supports BC1.2 5V/1.5A (7.5W) charging
•
(USB-C Power Adapter Required)
•
Connect a USB-A peripheral
•
USB 3.1 Gen 1 (5Gbps)
•
Connect a CAT 5e/CAT 6 cable to establish
•
a network connection
10/100/1000Mbps
•
Connect a USB-C power adapter
•
USB Power Delivery 3.0 (up to 100W)
•
Manual Revision: November 12, 2021 4:56 PM
