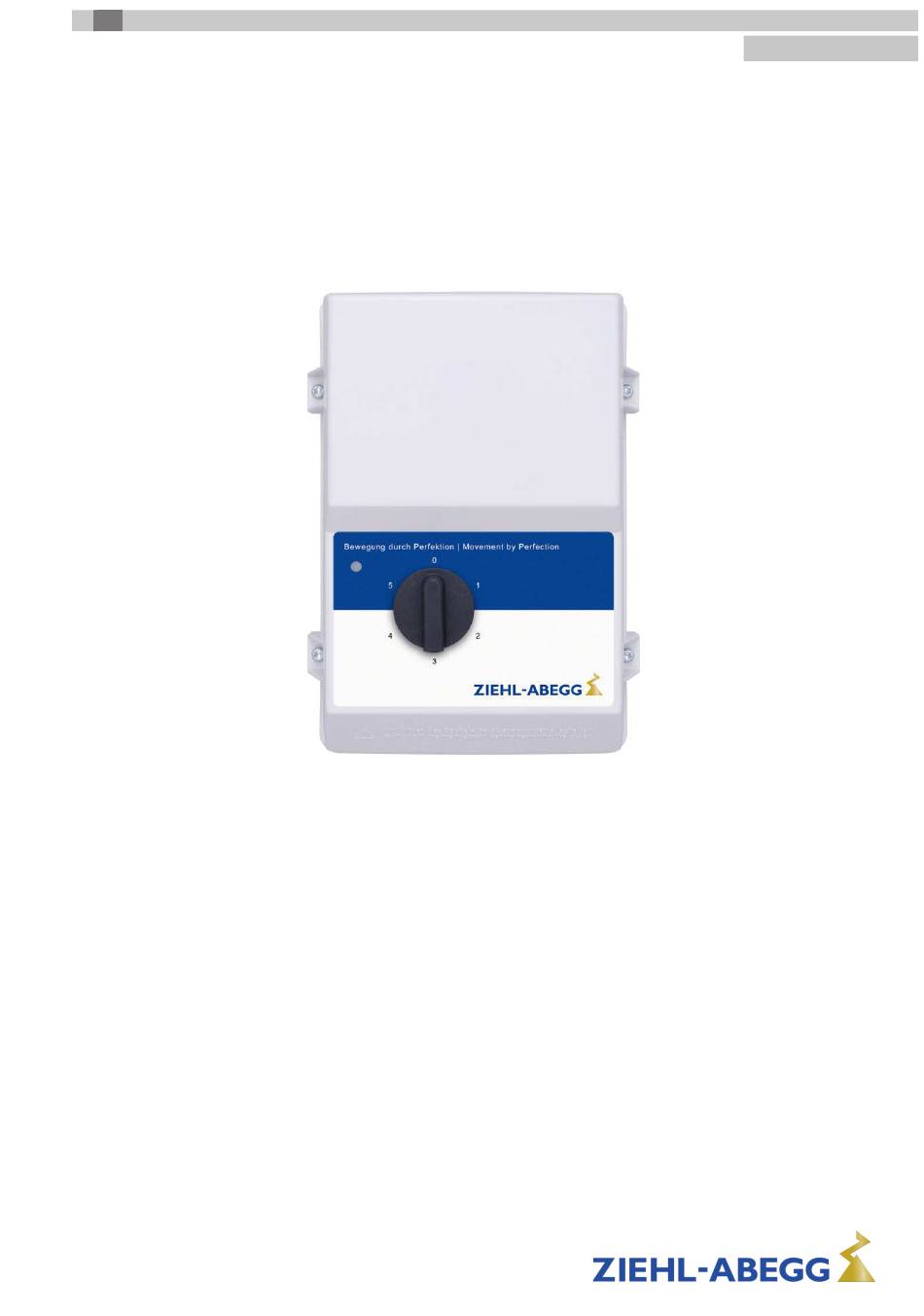

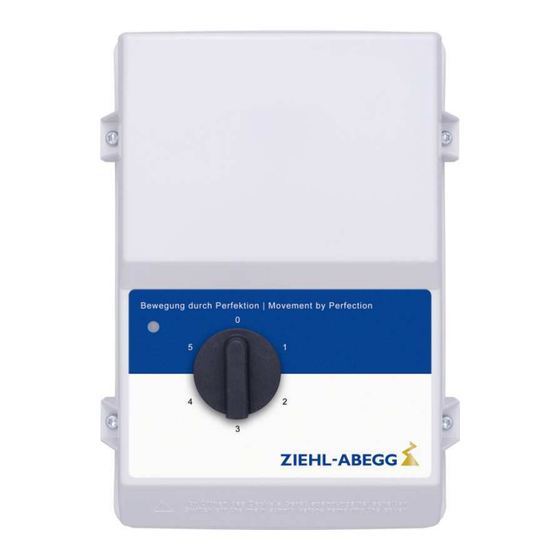

- Page 1 ☞ www.ziehlabegg.com english R-ET2...14KTG Transformer based controllers for variable voltage 1 ~ motors Operating Instructions Keep for reference! L-BAL-E206-GB 2024/29 Index 004 Part.-No.
-
Page 2: Table Of Contents
Operating Instructions R-ET2...14KTG Content General notes ..........Meaning of the operating instructions . -
Page 3: General Notes
Operating Instructions R-ET2...14KTG General notes 1 General notes Compliance with the following instructions is mandatory to ensure the functionality and safety of the product. If the following instructions given especially but not limited for general safety, transport, storage, mounting, operating conditions, start-up, mainte- nance, repair, cleaning and disposal / recycling are not observed, the product may not operate safely and may cause a hazard to the life and limb of users and third parties. -
Page 4: Explanations Of Symbols
Operating Instructions R-ET2...14KTG Safety instructions • During commissioning, unexpected and hazardous conditions can arise in the entire installation due to defective adjustments, defective components or incorrect electrical connections. Remove all persons and objects from the hazardous area. • Any faults detected in the electric system/modules/operating equipment must be corrected immediately. -
Page 5: Requirements Placed On The Personnel / Due Diligence
Operating Instructions R-ET2...14KTG Product overview 2.2 Requirements placed on the personnel / due diligence Persons entrusted with the planning, installation, commissioning and maintenance and servicing in connection with the device must have the corresponding qualifications and skills for these jobs. In addition, they must be knowledgeable about the safety regulations, directives, rules for the prevention of accidents and the corresponding national as well as regional and in- house regulations. -
Page 6: Disposal / Recycling
Operating Instructions R-ET2...14KTG Installation 3.5 Disposal / Recycling Disposal must be carried out professionally and in an environmentally friendly way in accordance with the respective national legal stipulations. Separate the materials by type and in an environmentally-friendly way. " If necessary, commission a specialist company with the waste disposal. "... -
Page 7: Minimum Space Requirement
Operating Instructions R-ET2...14KTG Installation 4.2 Minimum space requirement In order to ensure sufficient ventilation of the device, clearance on all sides of at least 50 mm has to be maintained to the housing walls, switch cabinet doors, wiring ducts, etc. The same clearance applies to the installation of several devices next to each other. - Page 8 Operating Instructions R-ET2...14KTG Installation • Potential-free contacts – If the device is switched on when mains voltage is applied (step 1 - 5), the internal relay is energized (=> terminals 11 - 14 bridged). – In the case of switch-off via the remote control (RT - RT terminals interrupted) and in the case of motor fault (TB - TB terminals interrupted), the relay is de-energized (=>...
-
Page 9: Enclosure
Operating Instructions R-ET2...14KTG Enclosure 5 Enclosure 5.1 Technical data • Line voltage: 1 ~ 230 V (-15 % / +10 %), 50/60 Hz • Max. permissible ambient temperature: 40 °C • Min. permissible ambient temperature: -40 °C • Output voltages adjustable via 5-stage switch: 65 V - 110 V - 135 V - 170 V - 230 V Max. - Page 10 Operating Instructions R-ET2...14KTG Enclosure R-ET7.5KT(G) Kontaktbelastung Kontaktbelastung Contact rating Contact rating max. max. AC 230 V 1 A AC 250 V 2 A AC 230 V Netz Line 1 ~ 230 V 50/60 Hz Aus / Ein 1 ~ Motor mit eingebauten Thermostatschaltern Off / On with internal thermostats...
-
Page 11: Dimensions [Mm]
Operating Instructions R-ET2...14KTG Enclosure R-ET9...14KT(G) RT RT Kontaktbelastung Contact rating max. max. AC 250 V 2 A AC 230 V 1 A AC 230 V Netz Line 1 ~ 230 V 50/60 Hz Aus / Ein Aus / Ein (nur über Reset) 1 ~ Motor Off / On Off / On (only by reset) -
Page 12: Manufacturer Reference
- ventilation technology. phone: +49 (0) 7940 16-800 Email: fan-controls-service@ziehl-abegg.de Our worldwide contacts are available in our subsidiaries for deliveries outside of Ger- many, see www.ziehl-abegg.com. L-BAL-E206-GB 2024/29 Index 004 Part.-No. 12/12...
