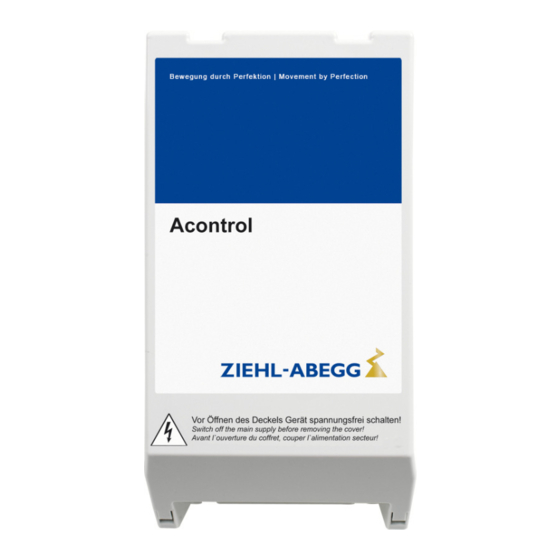

- Page 1 english Acontrol PDE-6 / PDE-10 Controller unit (PI-controller) and speed controller for variable voltage 1 ~ fans Operating Instructions Software version: D1475A from Version 01 L-BAL-E048-GB 1921 Index 005 Part.-No.
-
Page 2: Table Of Contents
Operating Instructions Acontrol PDE-6 / PDE-10 Content General notes .......... - Page 3 Operating Instructions Acontrol PDE-6 / PDE-10 Motor connection ........
- Page 4 Operating Instructions Acontrol PDE-6 / PDE-10 11.1.1 Performance reduction during elevated ambient temperatures 11.2 Connection diagram ........
-
Page 5: General Notes
We do not accept any liability for possible errors or omissions in the information con- tained in data, illustrations or drawings provided. ZIEHL-ABEGG SE is not liable for damage due to misuse, incorrect use, improper use or as a consequence of unauthorized repairs or modifications. -
Page 6: Safety Instructions
Operating Instructions Acontrol PDE-6 / PDE-10 Safety instructions 2 Safety instructions This chapter contains instructions to prevent personal injury and property damage. These instructions do not lay claim to completeness. In case of questions and problems, please consult our company technicians. -
Page 7: Requirements Placed On The Personnel / Due Diligence
Operating Instructions Acontrol PDE-6 / PDE-10 Safety instructions Information In the case of a malfunction or a failure of the equipment check all functions with alarms in order to prevent injury to persons or property. Note possibility of back-up operation. If... -
Page 8: Work On The Device
ZIEHL-ABEGG.These parts were specifically designed for the device. There is no guarantee that parts from non-original sources are designed and manufactured in correspondence with load and safety requirements. Parts and optional equipment not supplied by ZIEHL-ABEGG are not approved by ZIEHL-ABEGG for use. 2.8 Operator’s obligation of diligence •... -
Page 9: Employment Of External Personnel
Operating Instructions Acontrol PDE-6 / PDE-10 Product overview • The assembly instructions and/or operating instructions are always readily available at the location where the device is being used, are complete and are in legible condition. • These persons are regularly instructed in all applicable questions regarding occupa-... -
Page 10: Mounting
Operating Instructions Acontrol PDE-6 / PDE-10 Mounting 4 Mounting 4.1 General notes Attention! The following points must be complied with during the mechanical installation to avoid causing a defect in the device due to assembly errors or environmental influences: •... -
Page 11: Outdoor Installation
Operating Instructions Acontrol PDE-6 / PDE-10 Electrical installation 4.3 Outdoor installation Outdoor installation is possible up to -20 °C when the controller supply is not switched off. Installation must be protected from the effects of weather as much as possible, including protection from direct sunlight! 4.4 Installation location for agriculture... -
Page 12: Emc-Compatible Installation
Operating Instructions Acontrol PDE-6 / PDE-10 Electrical installation • The required protective earth connection is established using screws between the housing parts in metal terminal space covers and housing casings. Commissioning is only permissible after these screws have been properly attached! •... -
Page 13: Motor Connection
Operating Instructions Acontrol PDE-6 / PDE-10 Electrical installation 5.4 Motor connection The motor is connected at terminals U1 and U2. Several motors can be connected to the device. Attention! The maximum total control current (specified for electronic voltage regulation) for all motors may not exceed the device’s rated current. -
Page 14: Output Voltage 10 V (A = Analog Out)
Operating Instructions Acontrol PDE-6 / PDE-10 Electrical installation Over DIP 4 an inverting of the input is possible for mode 1.01 speed controller. • DIP 4 = (factory setting) for signals: 0 - 10 V, 2 - 10 V, 0 - 20 mA, 4 - 20 mA •... -
Page 15: Potential At Control Voltage Connections
Operating Instructions Acontrol PDE-6 / PDE-10 Operating and display elements 5.10 Potential at control voltage connections The connections for the control voltage (< 30 V) relate to the common GND potential (exception: relay contacts are potential-free). There is a potential isolation between the connections for the control voltage and the PE conductor. -
Page 16: Base Setup
Operating Instructions Acontrol PDE-6 / PDE-10 Base setup Potentiometer Function dependently on selected mode of operation • Speed controller 1.01 without function. • control with active sensors 4.01 , (0 - 10 V, 4 - 20 mA). setting range: 0 - 100 % measuring range of sensor. -
Page 17: Select Operation Mode
Operating Instructions Acontrol PDE-6 / PDE-10 Base setup E1 Analog In (factory setting 0 - 10 V) 4.01 1.01 4 - 20 mA 0 - 10 V 0 - 10 V (0 - 20 mA) 0 - 10 V 0 -10 V... -
Page 18: Function Of Dipswitches For Operation As Speed Controller
Operating Instructions Acontrol PDE-6 / PDE-10 Base setup 7.3 Function of dipswitches for operation as Speed controller 1.01 (DIP For operation as a speed controller, the output voltage is set manually by adjusting the built-in potentiometer, by an external potentiometer or external signal. -
Page 19: For Operation As P-Controller 4.01
Operating Instructions Acontrol PDE-6 / PDE-10 Start-up Without minimum speed cut OFF (DIP 2 = = factory setting) • If minimal speed “n-min” is adjusted (e.g. 20%), then no disconnection of the fan takes place. I.e. always a minimum ventilation is ensured (fan does not go under setting “n-min”). -
Page 20: Setting For Operation
Operating Instructions Acontrol PDE-6 / PDE-10 Setting for operation 9 Setting for operation 9.1 Speed controller 1.01 9.1.1 Setting for operation as Speed controller Signal to: Setting via external signal or external potentiometer Setting range: Output voltage from approx. 0 - 100 % of connected line voltage or in range of settings “n-min”... -
Page 21: Diagram: Setting Signal And Speed
Operating Instructions Acontrol PDE-6 / PDE-10 Setting for operation 9.1.2 Diagram: setting signal and speed 100 % Min. 0 % Max. = 100 % Min. 35 % Max. = 85 % 50 % Min. 0 – 10 V 10 – 0 V 0 –... -
Page 22: Pressure Control, Air Velocity Control (Pi-Controller) 4.01
Operating Instructions Acontrol PDE-6 / PDE-10 Setting for operation 9.2 Pressure control, Air velocity control (PI-Controller) 4.01 9.2.1 Setting for operation as Pressure and air velocity controller Setting range: 0 - 100 % measuring range of sensor 28.08.2008 v_set_pke.VSD n-min... -
Page 23: Diagnostics / Faults
Operating Instructions Acontrol PDE-6 / PDE-10 Diagnostics / Faults 10 Diagnostics / Faults Operating conditions are indicated by the internal status LED with flashing code. Code Reaction of Controller Explanation Adjustment In the event of a mains interruption the unit switches “OFF”... -
Page 24: If Controller Doesn´t Work Correctly
Operating Instructions Acontrol PDE-6 / PDE-10 Enclosure 10.1 If controller doesn´t work correctly Information Setting of dip switches in principle only when device is not under voltage. If the device is on mains supply modifications will partly not be identified and realized. -
Page 25: Performance Reduction During Elevated Ambient Temperatures
Operating Instructions Acontrol PDE-6 / PDE-10 Enclosure Min. permissible ambient temperature 0 °C (if mains voltage is not switched off up to -20 °C) Max. permissible installation height 0...4000 m amsl ≤ 1000 m: no limitation > 1000 m: max. permissible output current = current indication name plate minus 5 % / 1000 m >... -
Page 26: Connection Diagram
Operating Instructions Acontrol PDE-6 / PDE-10 Enclosure 11.2 Connection diagram Acontrol PDE-6/10 Digital Analog Analog 24 V PE PE PE A1 GND E1 GND Eingang Input 0...10 V 2...10 V 0...20 mA 4...20 mA Netz Ausgang Line Output 1 ~ 230 V 50/60 Hz... - Page 27 Operating Instructions Acontrol PDE-6 / PDE-10 Enclosure 11.2.1 Connection diagram motor protection unit for motors with thermostats type S-ET10 • Full motor protection by switch-off when activating the attached thermostat switches. Reset after malfunction by key press. • No cut-off if the mains supply is interrupted...
-
Page 28: Dimensions [Mm]
Operating Instructions Acontrol PDE-6 / PDE-10 Enclosure 11.3 Dimensions [mm] PDE-6, PDE-10 L-BAL-E048-GB 1921 Index 005 Part.-No. 28/29... -
Page 29: Manufacturer Reference
Operating Instructions Acontrol PDE-6 / PDE-10 Enclosure 11.4 Manufacturer reference Our products are manufactured in accordance with the relevant international regulations. If you have any questions concerning the use of our products or plan special uses, please contact: ZIEHL-ABEGG SE Heinz-Ziehl-Straße...
