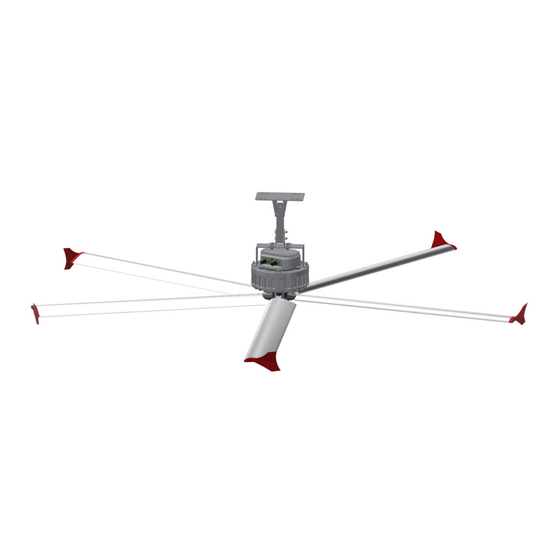

5-blade high volume low speed

Advertisement

Quick Links

®
FEATURES:
BL AD ES
• Equipped with 5 blades
• Extruded anodized aluminum
• High performance E420 design with
STOL technology
CONST RU CTION
• Mounting is to be 1/4" powder-coated steel and
anodized aluminum
• All construction is to be protected from the element
• Stainless steel safety brackets
VFD
• Onboard, IP65 rating
• Factory assembled & programmed
• Minimum start/stop torque loads
THVLS5142301
TORNADO 14FT 230V/1PH
THVLS5142303
TORNADO 14FT 230V/3PH
THVLS5144603
TORNADO 14FT 460V/3PH
THVLS5162301
TORNADO 16FT 230V/1PH
THVLS5162303
TORNADO 16FT 230V/3PH
THVLS5164603
TORNADO 16FT 460V/3PH
THVLS5182301
TORNADO 18FT 230V/1PH
THVLS5182303
TORNADO 18FT 230V/3PH
THVLS5184603
TORNADO 18FT 460V/3PH
THVLS5202301
TORNADO 20FT 230V/1PH
THVLS5202303
TORNADO 20FT 230V/3PH
THVLS5204603
TORNADO 20FT 460V/3PH
THVLS5242301
TORNADO 24FT 230V/1PH
THVLS5242303
TORNADO 24FT 230V/3PH
THVLS5244603
TORNADO 24FT 460V/3PH
• 277V power source is not accepted. •Estimated values based on typical conditions.
All specifications are subject to change without notice unless approved in submittal by S&P.
Sub-TornadoHVLS-041023
W I N G T I P S
• Equipped with 5 Wingtips
• Constructed of nylon 66
• Redirect outward airflow into downward airflow
M O TO R
• Direct drive ECM
• Totally enclosed
• IP65 rating
• Class F insulation
• 1.35HP (1.0 kW) nominal horsepower
WA R R A N T Y
• 5 YEAR Housing
• 1 YEAR Motor and Control
207-253V
1
14 Ft.
207-253V
5.2
3
(4.3 m)
414-506V
3
207-253V
1
16 Ft.
207-253V
5.2
3
(4.9 m)
414-506V
3
207-253V
1
18 Ft.
207-253V
5.2
3
(5.5 m)
414-506V
3
207-253V
1
20 Ft.
207-253V
5.2
3
(6.1 m)
414-506V
3
207-253V
1
24 Ft.
207-253V
5.2
3
(7.3 m)
414-506V
3
TORNADO HVLS
5-BLADE HIGH VOLUME LOW SPEED
1.35 HP
15,386 Ft²
140 Ft.
(1.0kW)
(1429.4 m²)
(43 m)
1.35 HP
20,096 Ft²
160 Ft.
(1.0kW)
(1866.9 m²)
(49 m)
1.35 HP
25,434 Ft²
180 Ft.
(1.0kW)
(2362.8 m²)
(55 m)
1.35 HP
31,400 Ft²
200 Ft.
(1.0kW)
(2917.1 m²)
(61 m)
1.35 HP
45,216 Ft²
240 Ft.
(1.0kW)
(4200.7 m²)
(73 m)
70 Ft.
78
236
(21.5 m)
RPM
lbs
80 Ft.
64
249
(24.5
RPM
lbs
m)
90 Ft.
55
277
(27.5 m)
RPM
lbs
100 Ft.
53
285
(30.5
RPM
lbs
m)
120 Ft.
40
306
(36.5
RPM
lbs
m)
