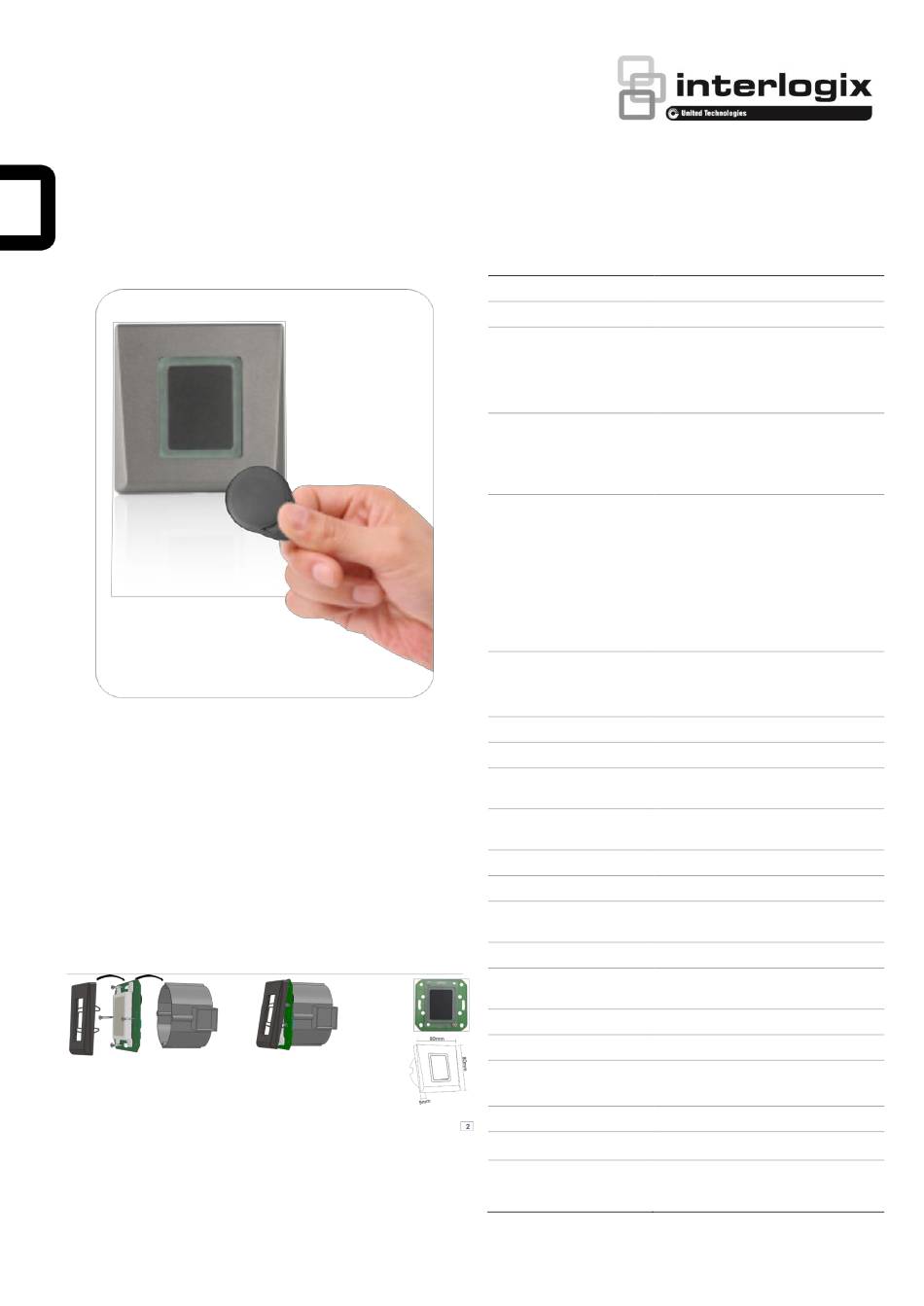

Interlogix ACL800FLW-RDPX Installation Manual

ACL800FLW-RDPX - Flush Mount Proximity
Reader - Installation Manual
Description / Operation
These ACL800FLW-RDPX flush mount proximity readers are
designed to fit a DIN electrical gang box and are available in
three different color finishes. The reader includes a buzzer and
a tri-color LED for state indication (access granted, access
denied or idle).
ACL800FLW-RDPX is capable of reading Casi Rusco, EM and
HID compatible cards/fobs (125 kHz).
Mounting
Figure 1: Mounting instructions
Note: Wall mount box not supplied!
Specifications
© 2018 United Technologies Corporation.
Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved.
Supply voltage 9 to 14 VDC
Current consumption 50 mA at 12 VDC
Interface Wiegand according to the card type
Wiegand 32 bit - EM410x Cards
Wiegand 40 bit – Casi-Rusco
Automatic Wiegand - HID Cards
32 data bits
EM410x
Pulse width: 100 µs
Pause: 1 ms
Wiegand 32 description
Wiegand for EM410x Cards
Even parity + 38 data bits + odd
parity
Pulse width: 100 µs
Casi-Rusco
Pause: 1 ms
P1 = even parity calculated over the bits
Wiegand 40 description
1 to 19
P2 = odd parity calculated over the bits 0
to 39
Wiegand for Casi-Rusco cards
HID
Automatic Wiegand according to the
Wiegand 26 – 37 bit
HID card type
Operating frequency 125 kHz
Card technology EM, Casi-Rusco or HID
Casi-Rusco, HID up to 4 cm, EM up
Read Range
to 6 cm
Yes, by DIP switch (ON = beeps on
Buzzer ON/OFF
card read)
LED Tricolor
LED control Yes, by terminals
Yes, by DIP switch (ON = Idle mode
Backlight ON/OFF
is Orange)
Tamper Yes, activated on frame removal
50 m according to Wiegand
Cable distance
standard
Panel connection Terminal blocks
Dimensions (W x H x D) 80 x 80 x 9 mm
−20 to +50°C
Operating Temperature
Relative Humidity 0 to 95% noncondensing
IP rating IP40
-S = Silver, -G = Grey, -B= Black
Color
120 g
Weight (shipping)
Weight (product)
50 g
P/N 1073500A• REV 01.01 • ISS 27AUG18
