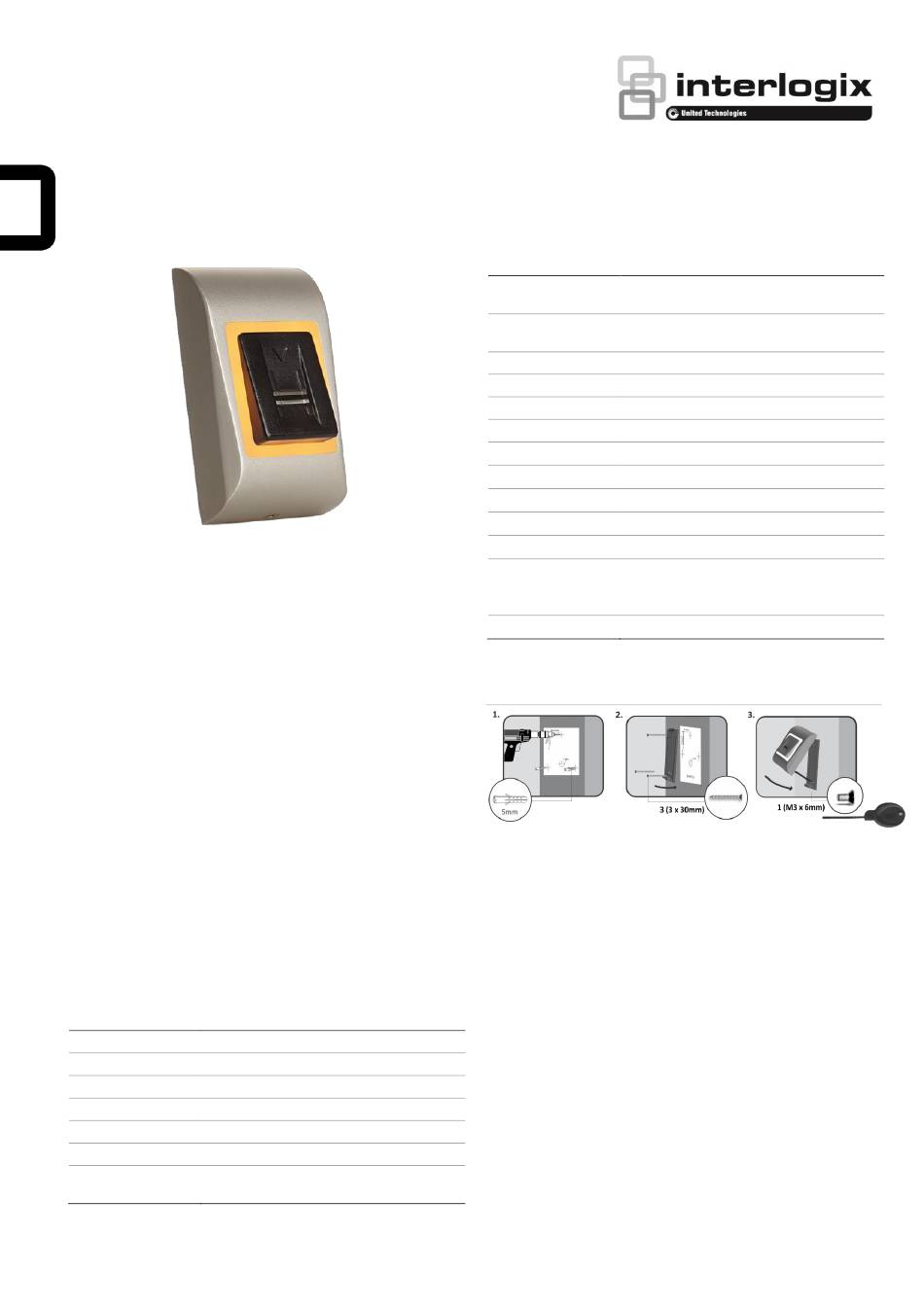

Interlogix ACL800SUW-BS Installation Manual

ACL800SUW-BS - Biometric Swipe Wiegand
Reader - Installation Manual
Description / Operation
ACL800SUW-BS is a Wiegand biometric reader for access
control applications. It offers storage up to 100 fingerprints and
has a programmable Wiegand output (26 to 80 bits).
Configuration of the readers and fingerprint enrollment is done
through the ACL800 BioManager software.
Connection between the biometric readers is RS485 and it is
used for fingerprint transfer and configuration.
The connection between the biometric readers and the PC is
done through a ACL800FL-CONV-W converter (RS485 to
TCP/IP). Only one converter is needed per system and
supports up to 31 biometric readers
The sensor incorporates dedicated sensing hardware to
facilitate the detection of "spoofing" attacks based on fake
fingers. This data is embedded into the image data stream,
and is processed on the processor. The system is capable of
detecting and defeating well-known fake finger mechanisms,
such as molded "gummy" fingers.
The coating on the surface of the swipe sensor provides
protection from scratching and abrasion due to normal contact
with fingertips and any incidental contact with fingernails.
Specifications
Fingerprint capacity Up to 100 fingerprints
Technology Biometry
Authentication Finger
Fingerprints per user 1-10 fingerprints
Interface
Wiegand 24 to 80 bits; default: Wiegand 26bit
Protocol programming By ACL800 BioManager software
Wiegand Cable
50 m
distance
© 2018 United Technologies Corporation.
Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved.
Fingerprint Sensor
Swipe capacitive
Type
1:1000 identification
970 msec, including feature extraction time
time
Fingerprint enrolment On the reader or from the USB desktop reader
Green and Red LED Externally controlled
Orange LED Idle mode
Buzzer ON/OFF Yes
Yes
Backlight ON/OFF
Yes
Tamper
100 mA at 12 VDC
Current requirements
65
IP Rating
9 to 14 VDC
Supply voltage
Operating
−20 to +50°C
Temperature
5 to 93% noncondensing
Relative humidity
92 x 51 x 25 (metal); 92 x 51 x 27 (ABS)
Dimensions (mm)
Mounting
Figure 1: Mounting instructions
•
Do not install the device and cabling close to a source of
strong electro-magnetic fields like radio-transmitting antenna.
•
Do not place the device near or above heating
equipment's.
•
If cleaning, do not spray or splash water or other cleaning
liquids but wipe it out with smooth cloth or towel.
•
Do not let children touch the device without supervision.
•
Note that if the sensor is cleaned by detergent, benzene or
thinner, the surface will be damaged and the fingerprint can't
be entered.
If the biometric reader is installed and used in outdoor
environments, the reader MUST be fitted with a weather
protection cover in order to protect the sensor from direct
rainfall. The operating temperature of the product is between -
20 to + 50ºC. If the reader is installed in an environment where
the temperature can drop below -10ºC or/and if the sensor
could only be exposed to direct sunlight, it is strongly
recommended to install the reader inside a third party sealed
wall mount box (fitted with additional heater if very low
temperature) to keep a constant sensor level performance. We
cannot guarantee the functionality of the product if the
recommendations and advice are not followed.
P/N 1073505A• REV 00.00 • ISS 4JUL18
