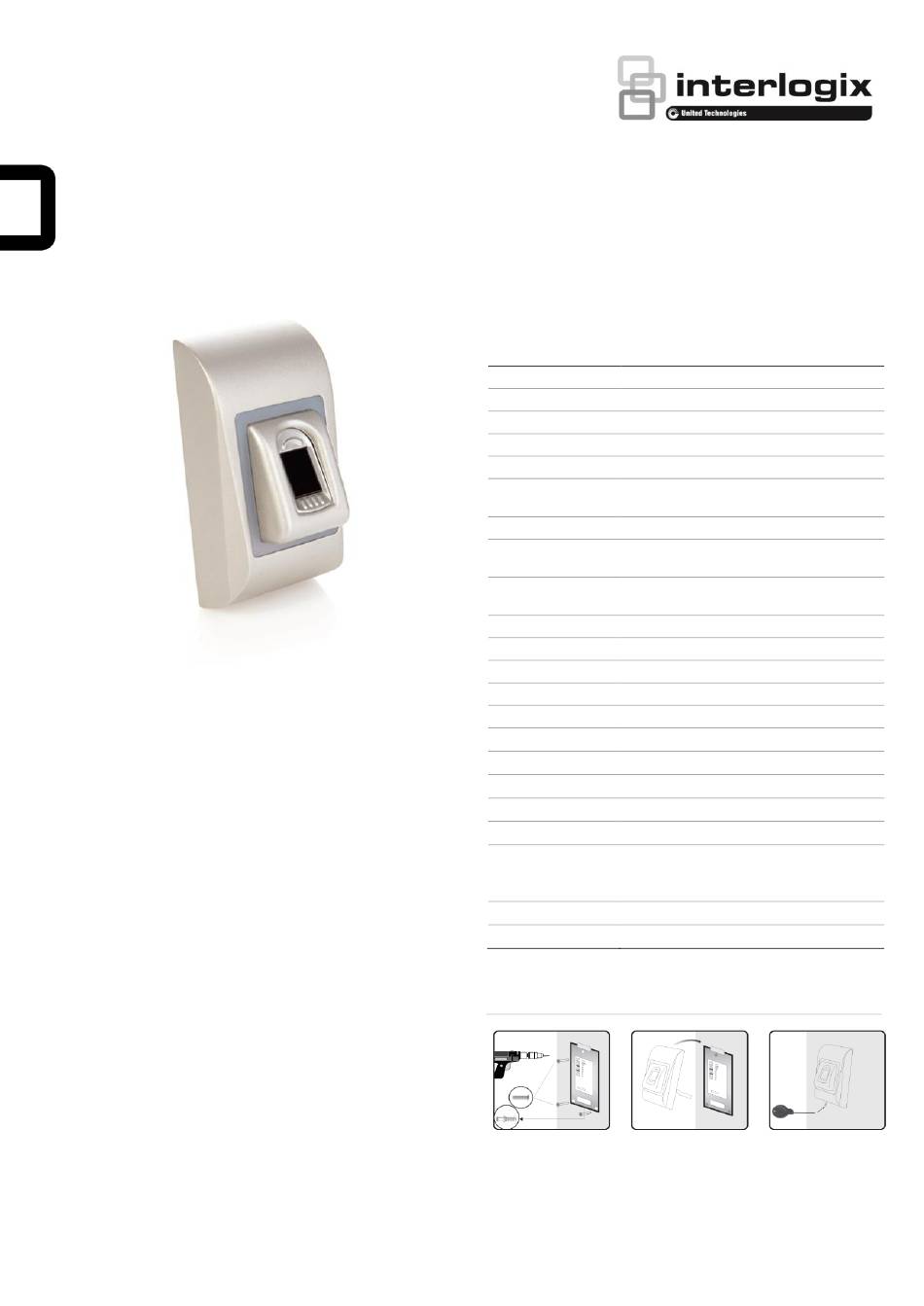

ACL800SUW-BC - Biometric Touch capacitive
Wiegand Reader - Installation Manual
Description / Operation
ACL800SUW-BC is a Wiegand biometric reader for access
control applications. It offers storage up to 9500 fingerprints
and programmable Wiegand output (24 to 80
bits).Configuration of the readers and fingerprint enrollment is
done through ACL800 BioManager software. Connection
between the biometric readers is RS485 and it is used for
fingerprint transfer and configuration.
When used with third party access controllers, the connection
between the biometric readers and the PC is done through
ACL800FL-CONV-W converter (RS485 to TCP/IP). Only one
converter is needed per system (one converter for 1, 2, 3...30,
31 biometric readers).
The tamper switch output can trigger the alarm system, if an
attempt is made to open or remove the unit from the wall.
© 2018 United Technologies Corporation.
Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved.
Specifications
Fingerprint capacity
Up to 9500 fingerprints
Technology
Biometry
Authentication
Finger
Fingerprints per user
1-10 fingerprints
Interface
Wiegand 24 to 80 bits; default: Wiegand 26bit
By ACL800 BioManager (all access control
Protocol programming
systems)
Cable distance
50 m
Fingerprint Sensor
Capacitive
Type
1:1000 identification
970 msec, including feature extraction time
time
Fingerprint enrollment
On the reader or from the USB desktop reader
Panel Connection
Cable, 1 m
Green and Red LED
Externally controlled
Orange LED
Idle mode
Buzzer ON/OFF
Yes
Yes, by software setting
Backlight ON/OFF
Yes
Tamper
100 mA at 12 VDC
Current requirements
54
IP Rating
9 to 14 VDC
Power supply
Operating
−20 to +50°C
Temperature
5 to 93% noncondensing
Relative humidity
92 x 51 x 25 (metal); 92 x 51 x 27 (ABS)
Dimensions (mm)
Moulded aluminium
Housing
Mounting
Figure 1: Mounting instructions
P/N 1073502A• REV 00.00 • ISS 4JUL18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Interlogix ACL800SUW-BC
Summary of Contents for Interlogix ACL800SUW-BC
- Page 1 P/N 1073502A• REV 00.00 • ISS 4JUL18 © 2018 United Technologies Corporation. Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved.
- Page 2 Wiring RS485 tuning Figure 2: Wiring Figure 4: RS485 tuning • Terminate both ends of the line with 120 Ohm resistor Wiring description • If the communication is not established and stable, use the external resistors provided in the hardware kit. 12 VDC +12 VDC Black...
-
Page 3: Add Reader
Click on “Save” and the reader icon appears under the selected portal Figure 6: Add Portal Right-click on reader and select “Check version” to see if the reader is online Note: The portal can be added automatically with the “search” function. -
Page 4: Delete Reader
Edit reader properties and click “Save” button. Check at event table if the configuration was successful. Delete reader Right-click on the reader and select “Delete” reader 3. Right click on the fingertip and select enroll. 4. Place the finger on the reader and fingertip will turn red, orange or green, with percentage of successful enrollment shown next to the fingertip. -
Page 5: Deleting Fingerprints
Click on “Delete User”. The user, together with its fingerprints will be deleted from both the software and the fingerprint readers In the event window, a line will appear indicating the number of fingerprints stored in the reader. Deleting all users from the biometric reader ... -
Page 6: Uploading The Fingerprints To The Biometric Readers
Uploading the fingerprints to the biometric Safety precautions readers Do not install the device in a place subject to direct sun light without protective cover. Right click on the biometric reader Do not install the device and cabling close to a source of ... -
Page 7: Regulatory Information
RELATED PRODUCTS. For more information on warranty disclaimers and product safety information, please check www.firesecurityproducts.com/policy/product- warning/ or scan the following code: For contact information go to: www.interlogix.com Contact or www.firesecurityproducts.com information and To get translations for this and other product manuals manuals go to: www.firesecurityproducts.com...
