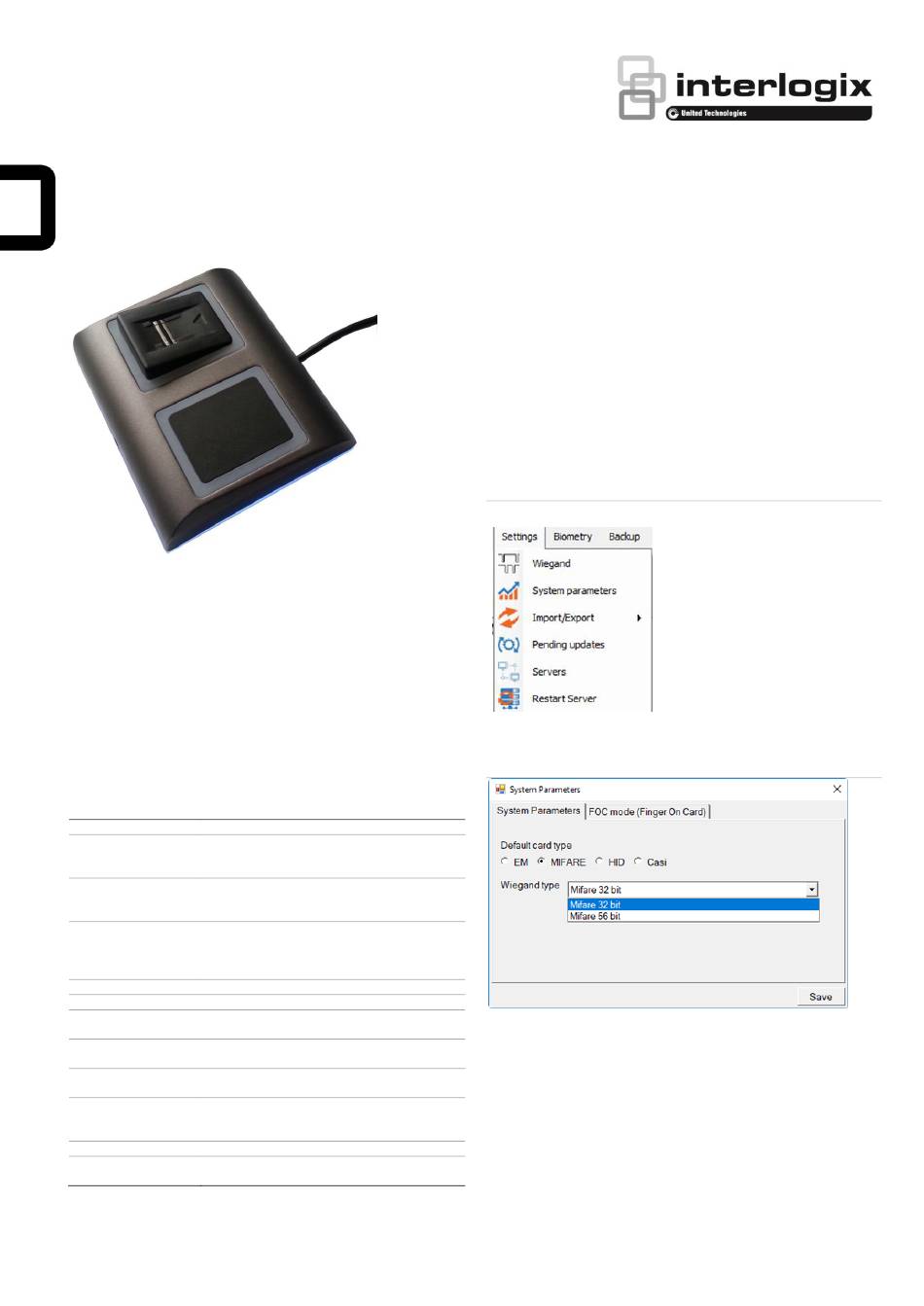

ACL800-BS-USB – Desktop Proximity/Mifare
and Biometric Swipe enrollment Reader -
Description / Operation
ACL800-BS-USB is an USB desktop fingerprint and
Proximity/Mifare reader that enables easy fingerprint and card
enrollment. The USB desktop reader is used for transfer of the
fingerprint to the ACL800 BioManager software, writing the
same fingerprint into a Mifare card, reading the card details
and reading the card UID. The fingerprints are stored in the
ACL800 BioManager software and can be uploaded in the
installed readers, not in the desktop reader
Specifications
Operating voltage
USB powered
With Biometric Readers with capacitive sensor
Compatibility
(ACL800SUW-BS,
ACL800SUW-BSPX, ACL800SUW-BSMF)
- EM Proximity Cards 125kHz
Support for 125kHz
- HID Prox
- Casi Prox
- Mifare Classic 4UID 1K & 4K (7UID supported)
- Mifare Ultralight 4UID 1K & 4K (7UID
Support for 13,56MHz
supported)
- DesFire EV1 2K, 4K & 8K
Windows Compatibility Windows 7, 8, 10
Operating frequency
125kHz, 13.56 MHz
CSN only for the technology : Mifare Classic,
Card technology
Mifare Plus, Mifare Ultralight, Mifare DESFire
Up to 6 cm,
Read range
depending on the card type and quality
Dimensions of housing
100 x 94 x 30mm
(W x H x D)
Operating environment
−20 to +50°C
Temperature
Relative humidity
0 to 95% noncondensing
IP rating
IP40
Weight shipping
120 g
Weight product
50 g
© 2018 United Technologies Corporation.
Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved.
Installation Manual
Enrolling cards
Plug the desktop reader in the PC. The desktop reader is
installed automatically like an USB device.
1. Open the ACL800 BioManager software
2. Go to Settings/System parameters
Figure1: System parameter
3. Select the type of the card and the Wiegand type
Figure 2: Card type selection
ACL805SUW-BS,
4. Place and leave the card (tag) on the Desktop Reader
5. Go to Users, select "New User", put name and click on the
USB Icon. The ID Number will be presented in the field "User
ID's (Card numbers). Click "Save new"
P/N 1073493A • REV 00.00 • ISS 4JUL18
