PNI IP792

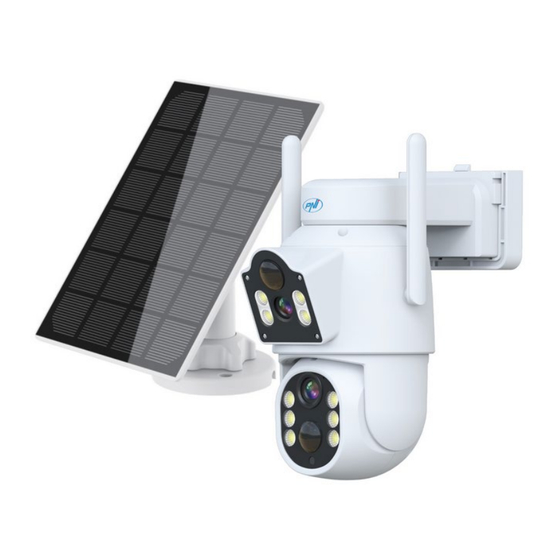

Wireless video surveillance camera with solar panel

User manual | 1

Need help?

Do you have a question about the IP792 and is the answer not in the manual?

Questions and answers

Summary of Contents for PNI IP792

Page 1 PNI IP792 Wireless video surveillance camera with solar panel User manual | 1...
Page 2 Product introduc�on 1. Lens 2. Indicator light 3. PIR sensor 4. Photosensi�ve sensor 5. Light (White and Infrared) 6. Wi Fi antenna 7. TF card slot 8. Reset Buton 9. DC5V Power 10. Boot Buton User manual | 2...
Page 3 Technical speciﬁca�ons Opera�on mode ICSee LEDs 4+6 pcs dual core dual light (IR+alb) board (SMD) Sensor 2MP 1/3" Low illumina�on CMOS*2 Deﬁni�on Mainstream：1920*1080 15fps；Sub- stream：800*448 15fps Lens F=3,6 mm, view angle : 85-90 ° IR distance 10 meters Full color night vision 10 meters Horizontal 355 °, Ver�cal 90°...
Page 4 Built-in batery Voltage 3,9V/cells, Capacity 6000 mAh, Type Li-Ion, 18650 lithium battery pack Pretec�on grade IP65 Trigger detec�on 110° Package size 200*180*135mm/0,99 kg Solar panel Power 3W Open-circuit voltage 7.2V (±5%) Short-circuit current 500mA (±10%) Voltage at nominal power 6.0V (±5%) Current at nominal power 466mA (±10%) Size 169x116 mm plas�c housing...
Page 5 • The camera only supports 2.4GHz WiFi connec�on. • Due to the numerous updates of the ICSee applica�on, it is possible that the images and informa�on described in this manual are diﬀerent from the version you have installed. 1. Search for the ICSee applica�on in the App Store / Google Play or scan the QR codes below: 2.
Page 6 12. Select the recording mode: con�nue, only with mo�on detec�on or in the Cloud (for a fee). 13. Press “Done” to complete the procedure of adding the camera to the applica�on. 14. Press the icon in the form of a wheel on the right side of the screen to access the camera se�ngs menu: network se�ngs, recording se�ngs, ac�va�on of the mo�on tracking func�on, password change, image quality se�ngs, audio se�ngs, etc.
Page 7 Frequently asked ques�ons Where does the camera save video recordings? • The video recordings are saved on the micro SD card (max. 128Gb) installed in the camera. The micro SD card is purchased separately. • Also, recordings can be saved in the Cloud (paid service). What should I do if forget device password ? •...
Page 8 PNI IP792 Camera wireless de supraveghere video cu panou solar Manual de u�lizare - 8...
Page 9 Prezentare produs 1. Len�le 2. Indicator luminos 3. Senzor PIR 4. Senzor fotosensibil 5. Lumina (alb si infrarosu) 6. Antena Wi Fi 7. Slot pentru card TF 8. Butonul de resetare 9. Alimentare DC5V 10. Butonul de pornire Manual de u�lizare - 9...
Page 10 Speciﬁca�i tehnice Mod de operare ICSee LED-uri 4+6 buc dual core dual light (IR+alb) placă (SMD) Senzor 2MP 1/3" CMOS cu iluminare scazuta*2 Rezolu�e imagine Mainstream：1920*1080 15fps；Sub- stream：800*448 15fps Len�le F=3,6 mm, unghi de vizualizare: 85-90 ° Distanta IR 10 metri Vedere nocturna color 10 metri Orizontal 355 °, ver�cal 90 °...
Page 11 Dimensiune cu�e 200*180*135mm/0,99 kg Panou solar Putere 3W Tensiune în circuit deschis 7,2 V (±5%) Curent de scurtcircuit 500mA (±10%) Tensiune la puterea nominala 6.0V (±5%) Curent la puterea nominala 466mA (±10%) Dimensiune carcasa din plas�c 169x116 Aten�onari de siguranta •...
Page 12 2. Instala� aplica�a, crea� cont si auten�ﬁca�-va. 3. Conecta� telefonul la reteaua WiFi si ac�va� Loca�a. 4. Apasa� pe butonul “+“ pentru a adauga camera in aplica�e. 5. In interfata urmatoare, apasa� pe “WiFi Camera”. 6. Alimenta� camera. Ve� auzi promptul vocal: “System star�ng up“ apoi “Wait to be conﬁgured“.
Page 13 Intrebari si raspunsuri Unde salveaza camera inregistrarile video? • Inregistrarile video sunt salvate pe cardul micro SD (max. 128Gb) instalat in camera. Cardul micro SD se achizi�oneaza separat. • De asemenena, inregistrarile pot ﬁ salvate in Cloud (serviciu contra cost). Manual de u�lizare - 13...
Page 14 Internet address: https://www.mypni.eu/products/9797/download/certifications Declaratie UE de conformitate simplificata ONLINESHOP SRL declara ca Camera supraveghere video PNI IP792 este in conformitate cu Directiva EMC 2014/30/EU si Directiva RED 2014/53/ UE. Textul integral al declaratiei UE de conformitate este disponibil la urmatoarea adresa de internet: https://www.mypni.eu/products/9797/download/certifications...
