- Page 1 Wind Speed Station SET UP GUIDE MODEL: 327-1417v3...
-
Page 2: Table Of Contents
Table of Contents BASICS TEMPERATURE/HUMIDITY WIND SPEED Power Up Temperature/Humidity Wind Speed Readings Readings Wind Speed History Settings Menu Forecast Icons Temperature/Humidty Reset Wind Records Backlight Records Reset Records Double Warranty Offer Trend Arrows ALERTS SENSORS APPENDIX Custom Alerts Add-on Temperature/ We’re Here to Help Set Alerts Humidity Sensor... -
Page 3: Power Up

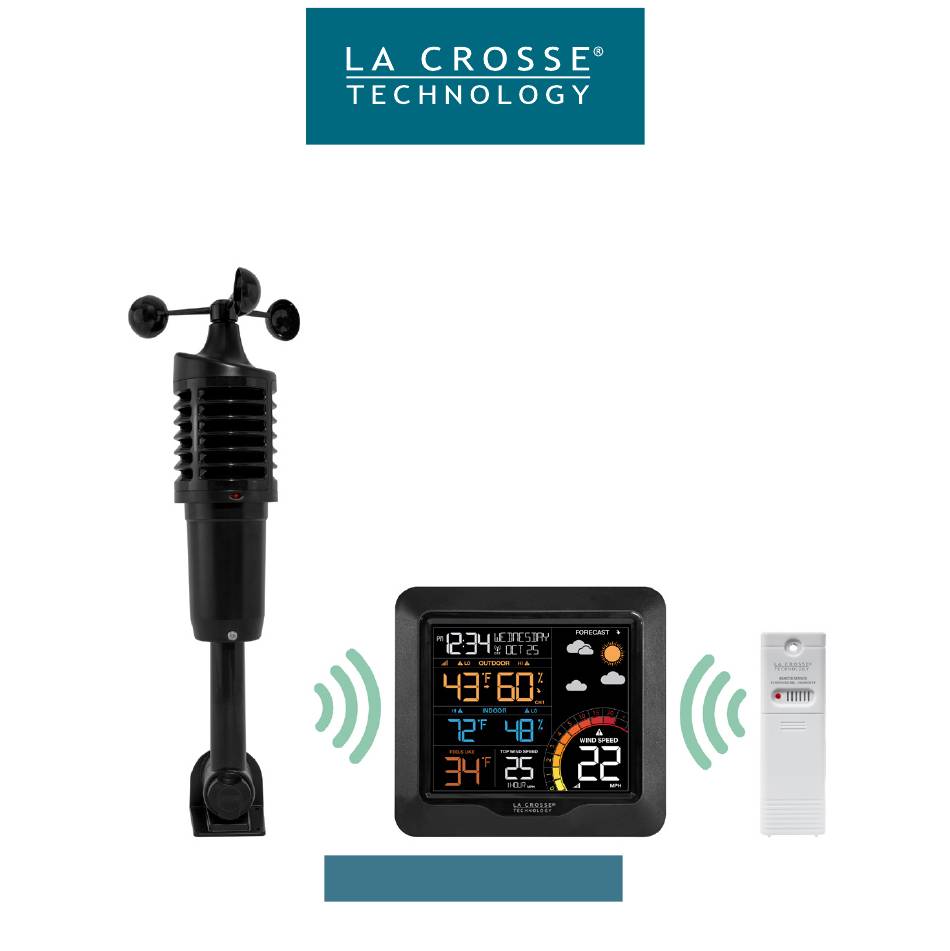

Insert the 5 volt power cord into the outlet, then into your Weather Station. Optional: Insert 3-AA batteries for backup. Adjust time and date settings on the station. Once the both sensor readings show, place them outside. Optional Thermo-Hygro Sensor Wind Speed Sensor Weather Station TX141TH-BCHv4 TX144W 327-1417v3... -
Page 4: Settings Menu
Settings Menu Press or hold one button at a time in the Settings Menu. Hold the button until the display changes, to enter the Settings Menu. Press and release the -/CH button to adjust values. Hold to adjust quickly. Press and release the button to confirm values and move to the next setting. -
Page 5: Temperature/Humidity
Temperature/Humidity Readings CH 1 2. OUTDOOR TEMP. ALERT 1. RECEPTION ICON OUTDOOR HUMIDITY ALERT Indicates station is Shows an Alert is armed. Shows an Alert is armed. receiving data from the sensor. 4. LOW BATTERY ICON 5. OUTDOOR TEMPERATURE 6. OUTDOOR HUMIDITY Current Outdoor Humidity. -
Page 6: Temperature/Humidty
Temperature/Humidity Records Viewing Records Press and release the TEMP button to toggle through outdoor/indoor temperature & humidity records with time and date stamps, and Feels Like Temperature records. Records Viewing Order • • Outdoor High Temperature Outdoor Low Temperature Outdoor High Humidity •... -
Page 7: Wind Speed
Wind Speed Readings 1. TOP WIND SPEED Top Wind Speed for the past 60 minutes. 2. WIND SPEED GRAPH Segments will animate according to the current wind speed. 3. WIND SPEED ALERT ICON Shows an Alert is armed. 4. WIND SPEED Current Wind Speed. -
Page 8: Custom Alerts
Reset Wind Records Press and release the WIND button to view the individual wind speed record you’d like reset. Hold the MINUS -/CH button until dashes appear. The reading will then reset to the current wind speed value. Custom Alerts This station provides custom alerts for the following measurements: •... -
Page 9: Forecast Icons
Triggered Alerts • When an alert value is reached, the corresponding value and alert icon will flash on screen. • The station will beep 5 times each minute until the value moves out of the alert range. • Press any button to stop the alert sound. Deactivate Alerts Hold the ALERTS... -
Page 10: Add-On Temperature
Scan Here Add-on Temperature/Humidity Sensors Purchase Add-on Sensor TX141TH-BCH (any version) Visit bit.ly/327-1417v3_parts or scan the QR code to find and purchase up to two compatible add-on sensors. Add a Temperature/Humidity Sensor to Station: Install batteries into your Sensor. Select Channel 2 or 3 on the sensor. Hold the TEMP button on the station until the Reception... -
Page 11: Search For Sensors
Search for Sensors If you are seeing dashes for any sensor readings, please try the following steps: Hold the WIND button to search for your Wind Sensor. Hold the TEMP button to search for all Temperature/Humidity Sensors. The Reception Indicator will begin to animate. -
Page 12: Sensor Placement
Sensor Placement & Mounting For Accurate Wind Sensor Measurements • Ideally, the sensor should be mounted on the tallest object in your area. Avoid positioning it parallel or below eaves, rooflines, trees, or other objects that may obstruct wind readings. •... -
Page 13: We're Here To Help
Mon-Fri 8am-6pm CST Stay in Touch! Ask questions, watch set up videos, and provide feedback on our social media outlets. Follow La Crosse Technology on Youtube, Facebook, Instagram, and X (Twitter). WARNING: This product can expose you to chemicals including acrylonitrile, 1, 3-butadiene, and styrene, which are known to the State of California to cause cancer and birth defects or other reproductive harm. -
Page 14: Specifications
Specifications Weather Station (327-1417) Indoor Temperature Range: 32ºF to 122ºF (0ºC to 50ºC) Humidity Range: 10% - 99% RH Power: 5.0 Volt 150mA adapter included (Primary) AC6: GPU280500150WAOO Optional: 3-AA, IEC, LR6 batteries (Not included) Battery Life: 12 + Months Dimensions: 6.89”... -
Page 15: Warranty & Patents
(15.86cm L x 14.31cm D x 30.29cm H) Warranty & Patents La Crosse Technology Ltd. provides a 1-year limited-time warranty on this product relating to manufacturing defects in materials & workmanship. Per the Song-Beverly Act, in the state of California, the warranty on this item becomes effective on the date of delivery. -
Page 16: Care & Maintenance
Care & Maintenance When batteries of different brand or type are used together, or new and old batteries are used together, some batteries may be over-discharged due to a difference of voltage or capacity. This can result in venting, leakage, and rupture and may cause personal injury.
Need help?
Do you have a question about the 327-1417v3 and is the answer not in the manual?
Questions and answers
Our lacrosse weather station Sensor and sensor won’t pick up reading on the outside
The La Crosse Technology 327-1417v3 weather station sensor may not be picking up outside readings due to several possible reasons:
1. Weak Wireless Signal – The base unit and outdoor sensor may be too far apart or experiencing interference. Try moving them closer together and eliminating potential interference sources.
2. Battery Issues – The outdoor sensor batteries may be low. Check and replace them if necessary.
3. Transmission Range – Ensure the sensor is within the specified 330-foot (100-meter) open-air range of the base unit.
4. Mounting Issues – Verify that the sensor is securely mounted and positioned correctly.
5. Obstructions – Ensure there are no physical barriers blocking the signal between the sensor and the base unit.
If the issue persists, resetting the base unit or re-syncing the sensor may help.
This answer is automatically generated
