Summary of Contents for PlayAlive Orbit

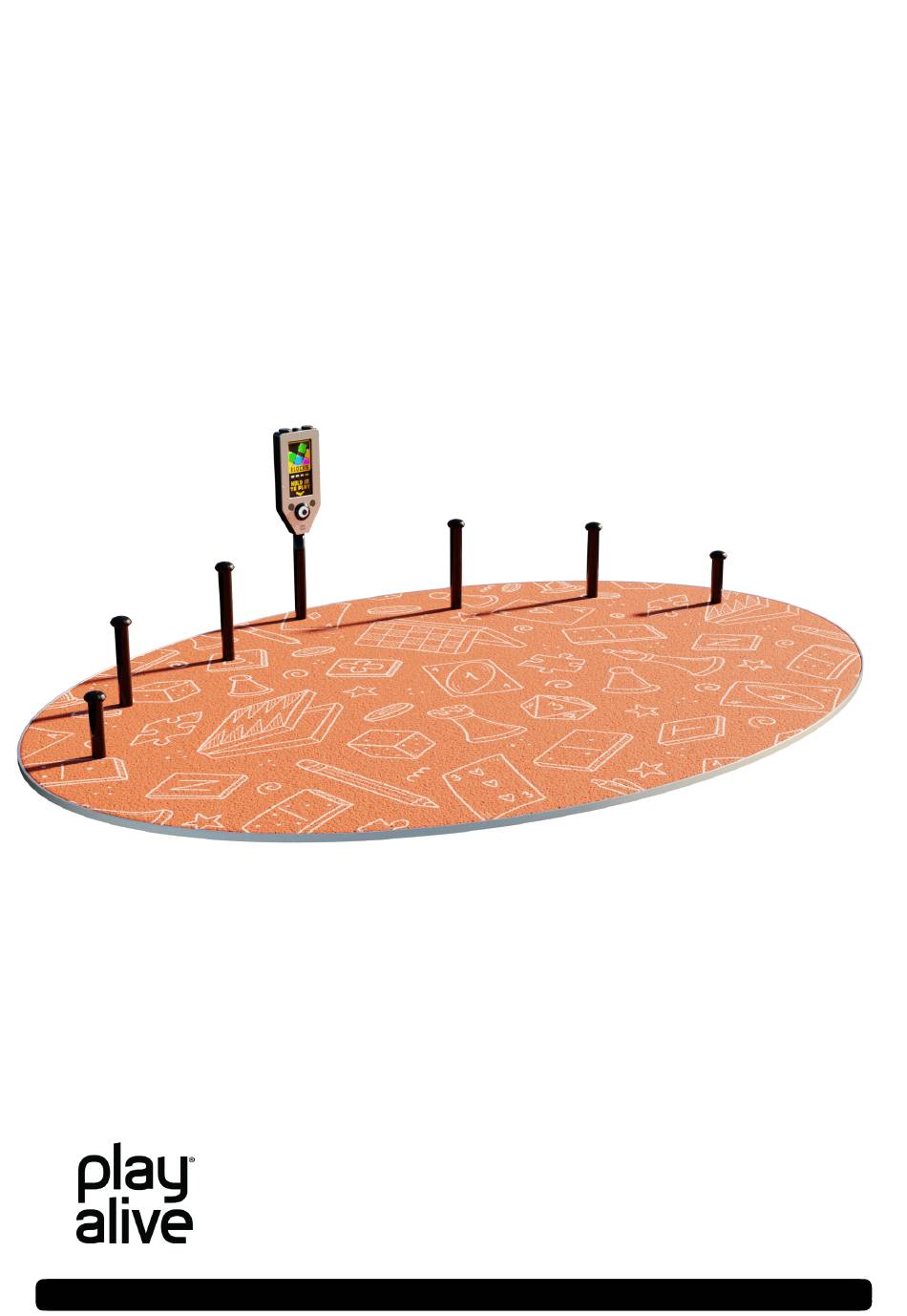

- Page 1 Installation manual Orbit...
-
Page 2: Table Of Contents
4.1 Connecting the power cable Installation of satellites Installation of game controller Start up 5.1 Turn the system on Start a game and test the setup Games included in Orbit 6.1 Orbit games Appendix 7.1 General introduction to PlayAlive’s technology platform... -
Page 3: Component Overview
Component overview Electronics 1 x Pigtail Cable 6 x PlayAlive Cable 6 x Satelite 0.3 m 5.5 m (Purple) P00020 P00256 1 x Game controller 1 x middle pillar P00499 Steel components 2 x 1250 mm pillar 2 x 1050 mm pillar... -
Page 4: Construction
Overview of construction site The area for the placement of the Orbit should have a diameter of minimum 5.8 meters. The Orbit must have a power cable of 230V drawn to the middle pillar. Later in the installation process an electrician must be respon- sible for the connection, see section 4.1. -
Page 5: Casting The Orbit
Casting the Orbit Once the cables have been pulled, the Orbit is ready to be placed in the dug out holes and thereafter cast. Please note, that the pillars should be cast around 0.4 meters below the surface. The 0,85 m distance from the ground to the lowest satellites should be 0.45... -
Page 6: Installation Of Game Controller
Note: The holes on the pillars are asymmetrical to ensure the correct orientation of the satellites. The cor- rect orientation puts the PlayAlive logo in the danish reading direction, which is from left to right. It is advised to NOT screw the screws in completely until installation step 5 has been completed and every- thing is working correctly. -
Page 7: Start Up
Games included in Orbit Orbit games Games will rotate so the Orbit is always new and exciting. An example of a rotation of 4 games can be seen below. Agent In the game “Bloks,” players are challenged to match blocks of the same color with each other. -
Page 8: Appendix
You should also be careful when pulling cables during the installation. Please be aware that the PlayAlive cables are not designed to be pulled in the connector. Therefor when pulling the cables, please pull on the cable and not on the connector.
