Summary of Contents for PlayAlive Wave

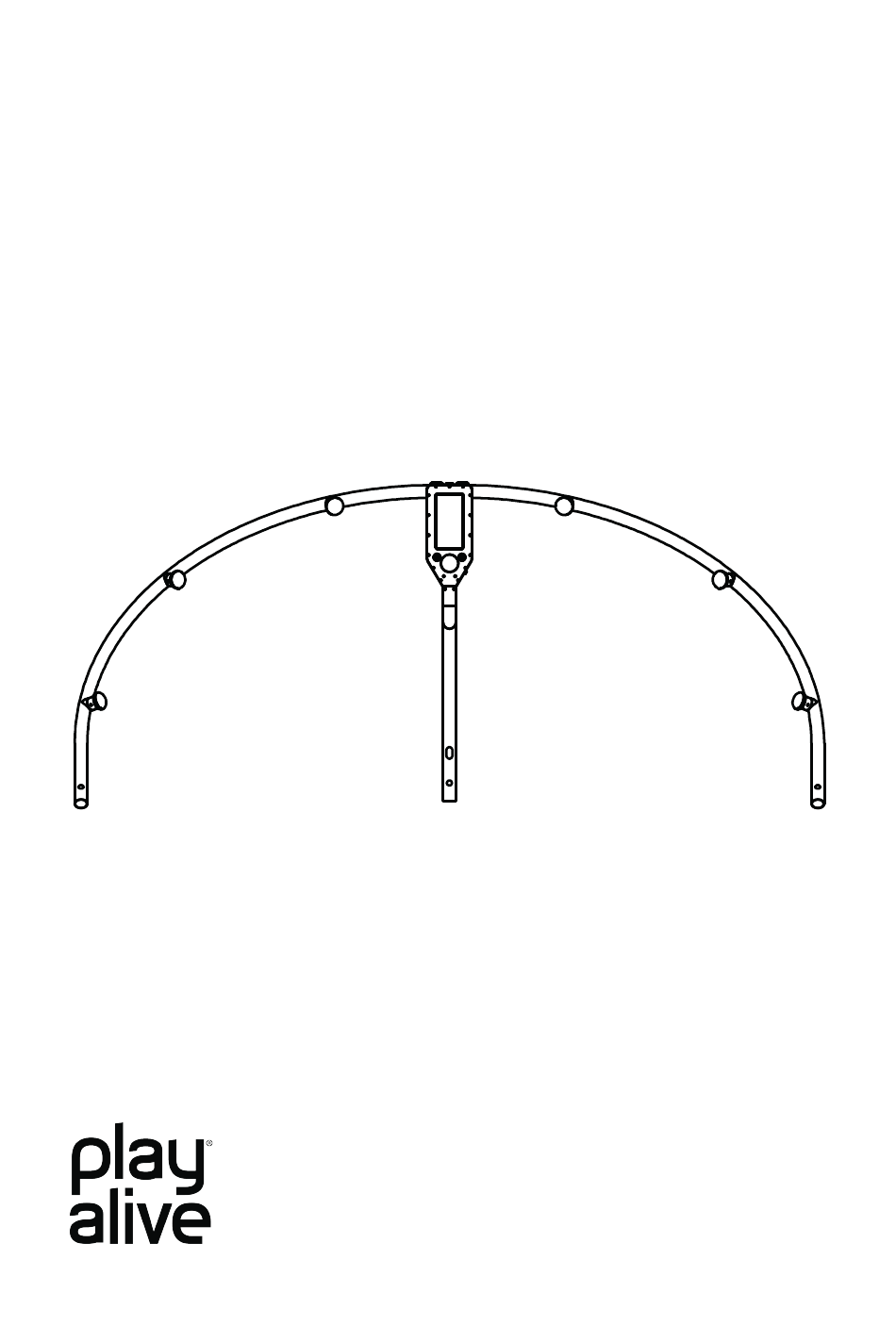

- Page 1 Installation manual Wave...
-
Page 2: Table Of Contents
Pulling devicenet cables Installation of satellites Installation of game controller 5. Start up ..................Turn the system on Start a game and test the setup 6. Games included in Wave ........... Games 7. Appendix ................... General introduction to PlayAlives technology platform... -
Page 3: Component Overview
Component overview 2.1 Steel components & pre-installed electronics 1x Wave left leg 1x Wave right leg 1x Middle pillar 6x Satellite P00020 1x Game controller P00499 2.2 Other components Installation manual Wave 16x Washer M10 18x Countersunk screw M5 x 12 mm... -
Page 4: Construction
(230 V) should be pulled with the 230 V power cable. through the middle pillar. Once this is done, dig two holes for the legs of the Wave. The holes should be an ellipse, 300 mm wide and 600 mm 2,65 m long. -
Page 5: Assembling Wave
Do the same with the wave’s right leg, though do remember to mirror it so flange, and the lock that the bolt’s head will be at the wave leg bolt flange and the lock nut bolt nut bolts by the at the middle pillar bolt flange. -
Page 6: Installation Of Electronic Components
1. Start by pushing a red PlayAlive cable through the satellite hole top, in the left leg. Push it in an upwards motion so that it will go across the middle pillar and to the satel- lite hole top in the right leg. -
Page 7: Installation Of Satellites
3. Fixing the satellites. The satellites must be fixed to the Wave nected and disconnected legs with 3 Countersunk M5 x 12 mm screws. The components from the satellites could are designed so that the screws can be screwed in with one’s... -
Page 8: Installation Of Game Controller
This will be the cable with the purple stripe. Note that it lation point. This is very is very important that the PlayAlive cable is connected to the game important as some of the controller before it is connected to the power cable, as failing to PlayAlive components do so will break the electronic parts. -
Page 9: Start Up
6 “Games included in Wave”. If you have been able to conduct the steps as described in section Important: Please finish 5.1 and 5.2 the PlayAlive product has been successfully installed. this installation by ensur- ing that the screws hold-... -
Page 10: Games Included In Wave
(out of the 5 in one game) will always be the same. These smaller games can differ between upbeat, quick reaction games and slower games that require more strategy then speed. Additional games can be uploaded, contact PlayAlive for more information. -
Page 11: Appendix
You should also take care when pulling cables. Please be aware that the PlayAlive cables are not designed to be pulled in the connectors. When pulling the cables please make sure that you pull the cable and not the connector.
