Summary of Contents for PlayAlive Spider

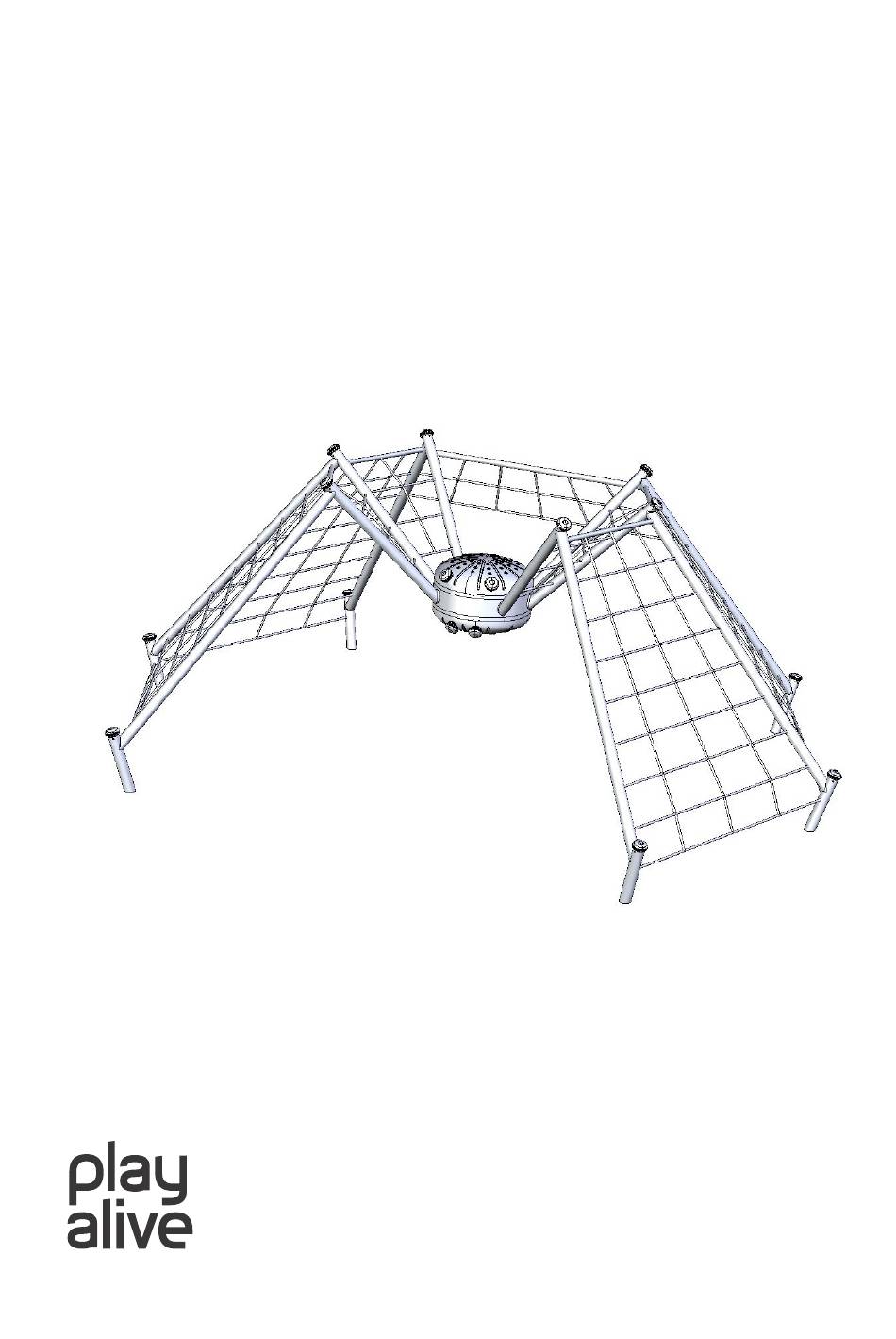

- Page 1 Installation and assembly instruction Spider ®...
-
Page 2: Table Of Contents
6.1 Pulling of devicenet cable 6.2 Pulling cables inside the legs 6.3 Mounting of satellites placed in the legs 6.4 Mounting of satellites on the body of the Spider 7. Plastic parts 7.1 Mounting of plastic shells 7.2 Mounting of plastic bracket 8. -
Page 3: Content
Component overview Content of transport case The spider product arrives in a big wooden box / transport case. The box contains the steel structures as well as eight smaller boxes. The contents are specified below. Important! Check the packing list. -
Page 4: 2.8 Component Overview
1 x Top plastic shell 22 x Buttonhead M5 x 12 mm P-MP011 P-MP012 P00076 Satellite adapters for body of Spider (P00079) 24 x Buttonhead M5 x 16 mm 4 x External adapter 4 x Inner adapter 24 x Washer M5... -
Page 5: Site Of Spider Construction
Site of Spider construction Maximum length of power cable Tip: For details on cable pipes see the technicial All legs are prepared details in section 11. for cables to be pulled inside the legs. Important! Remember pull wire in cable pipe. -
Page 6: Mounting Of Steel Construction
Mounting of steel construction Support of the center ring Important! The installation will become easier by using a support table for correct placing and leveling The 4 narrowly placed of the center ring. holes on the center ring should face forward. Important! Note that there are 5 dif- ferent legs. -
Page 7: Mounting Of Rear Right Leg (Leg D)
Mounting of rear right leg (Leg D) 1 x Rear right leg (Leg D) 1 x Rear connector tube 2 x Washer M16 2 x Inner plug B 2 x Lock nut M16 4 x Self tapping screw Important! 4 x 20 mm The Inner plugs must 2 x Casting anchor be predrilled with a... -
Page 8: Mounting Of Net
Mounting of nets Mounting of side nets 4 x Side net 76 x Shackle Important! Shackles must be secured with the supplied glue. Mounting of top net 4 x Top net 28 x Shackle Mounting of rear net 1 x Rear net 9 x Shackle... -
Page 9: Electronics
1 x 33 m Devicenet cable Satellite with ID 0 Tip: When installing the cables inside the tubes of the spider, it can be of advantage to pull them two at a time. This makes them less flexible and easier to pull. -
Page 10: Mounting Of Satellites Placed In The Legs
The 12 x Satellite 30 x Countersunk screw M5 x 12 mm ID-number determines where the satellite must be placed on the Spider. (see the illustration) Satellites must be wired using serial connection – Please, carefully follow the illustration below. -
Page 11: Mounting Of Satellites On The Body Of The Spider
Mounting of satellites on the body of the Spider Important! Satellites and adapters must be assembled so the logo is oriented 4 x Satellite 1 x 3,5 m data cable 3 x 2 m data cable correctly. 20 x Buttonhead... -
Page 12: Plastic Parts
Plastic parts Mounting of plastic shells Important! Remember to lubricate 20 x Buttonhead M5 x 12 mm the screws with the sup- plied grease. 40 x Rubber strips Important! Due to manufacturing tolerances on the plastic shells, it may be neces- sary to install rubber strips between the center ring and plastic shell. -
Page 13: Verifying Dimensions / Casting Foundations
Verifying dimensions / casting foundations Verifying dimensions Important! 654,1 cm Remember to verify the dimen- sions before casting the concrete. Impact surface Important! To ensure the correct distance between the legs, a temporary spacer may be placed as illustrated. Casting the concrete Casting anchors Important! Verify that the casting anchors... -
Page 14: For The Electrician
For the electrician Installing cabinet with power outlet for PlayAlive power supply PlayAlive spider uses a 230VAC -> 24VDC power supply. A cabinet containing at least 1 pcs 230V AC power outlet must be installed. Ground connection needed. The cabinet must be installed by the customer’s electrician. The cabinet can be placed indoor or outdoor depending on the customer’s request. -
Page 15: Start Up
If satellites are in “sleep” mode touch any satellite to make the satellites ready for game selection and start 3. Go to the body of the Spider and look at the two satellites in the lower part 4. Use the left satellite (seen from the players view) to toogle between the three different games. -
Page 16: Appendix
In cases where this is not possible, it is recommended to use a pulling string. Please be aware that the PlayAlive cables are not designed to be pulled in the connectors. When pulling the cables please make sure that you... -
Page 17: Games
A simple interface supported by an intuitive sign with icons and QR codes will help guide the users through the various games and start the desired games. Additional games can be ordered at PlayAlive.
