- Page 1 Installation manual Sport ®...
-
Page 2: Table Of Contents
8. Installing the power supply 9. Start up 9.1 Start up the system 9.2 Select Game 9.3 Reset the Game 9.4 Idle mode 9.5 Adjust Volume 10. Appendix 10.1 General introduction to PlayAlives Technology Platform 10.2 Conduit pipes and PlayAlive technology 10.3 Games... -
Page 3: Component Overview
Installation manual 8 x Heads for curved or male/female velcro for Steel console (this copy) steele poles (either sourced locally or by PlayAlive) (for Sign) 1 x Bit TX 25 x 25 MB 27 x M5 Countersunk 16 mm A2... -
Page 4: Site Of Construction

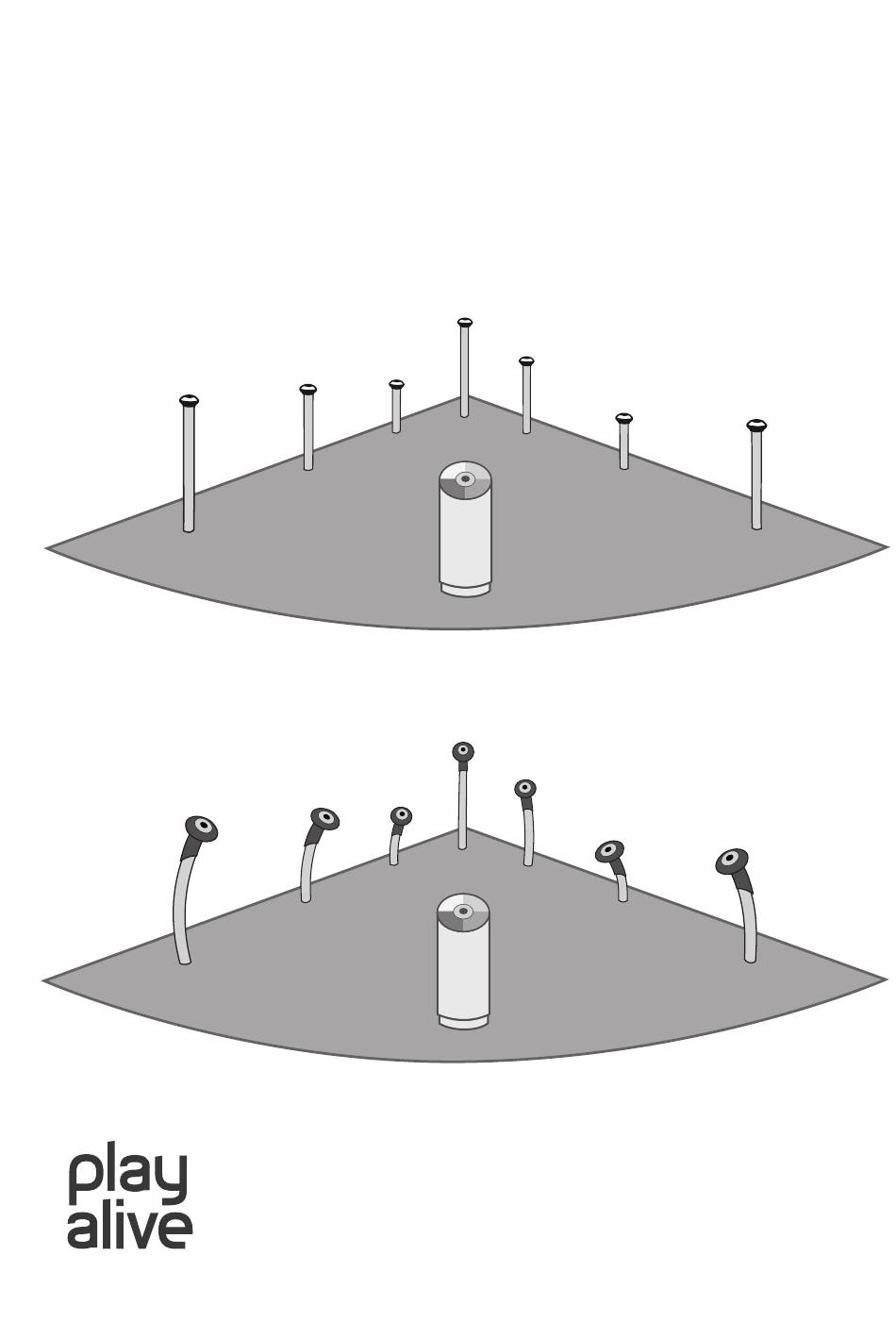

Site of construction Maximum length of power cable Important! Distance between power supply and the Speed console Remember pull wire must not exceed 33 m. in conduit pipe. Conduit pipe needs to be sourced locally. Please install Power Supply Box at a nearby building in Console waterproof and vandalism safe cabinet. -
Page 5: Game Selector Console
Game selector console Installing the console Seperate the console from its casting legs by remov- ing the 4 screws at the bottom of the console. (The top cover is reinstalled after casting and cable pulling.) Follow the instruction on correct placement of console. See illustrations in section 3.2 Correct placement of steel poles and console. -
Page 6: Conduit Pipes
Cables must to be placed in conduit pipes between steel poles. instruction on how to handle How to place the pipes are given below: conduit pipes in combination with PlayAlive cables. 5.5 meters devicenet cable iPSU Up to 33 meters cable from iPSU to ID 0 satellite... -
Page 7: The Circle Sign
The Circle Sign Mounting the circle sign Loosen the top cover by the 4 screws. Remember what is top and bottom of the top cover! It is important to face it Tip: correctly when mounting it again! Draw a small mark on Mount dual adhesive tape to the back- what is top and bottom side of the sign. -
Page 8: Installing Satellites In Steel Poles
Installing satellites in steel poles Satellite ID’s Each satellite has an individual ID, shown on a label at the rear of the satellite. Please make sure that each satellite is placed Important! correctly as illustrated. Correct placement of the ID 4 satellites is needed in order for the games to work as intended! For example ID 0... -
Page 9: Installing The Power Supply
Installing the power supply (iPSU) The power supply (iPSU) must be placed in a dry area. Important! It has been designed for outdoor temperatures, but should not be exposed to direct water (rain or water spray). Power and cabinet installation must be Recommended placement is inside a nearby building or in a vandal handled by an electrician. -
Page 10: Start Up
NOTE: It is rather important to have a certain sound level in order to experience the full joy of the individual PlayAlive activities. If you have been able to conduct the elements as described at section 9.2 - 9.3 the PlayAlive site has beeen successfully installed. -
Page 11: Appendix
In cases where this is not possible, it is recommended to use a pulling string. Please be aware that the PlayAlive cables are not designed to be pulled in the connectors. When pulling the cables please make sure that you... -
Page 12: Games
Best out of 3 points wins the game. Free Play / Idle Mode Each satellite will have its own play mode with Funny sounds and light creation. Will cease when games are started. Additional games can be ordered at PlayAlive.
