Summary of Contents for Gastro-Haal STP-10

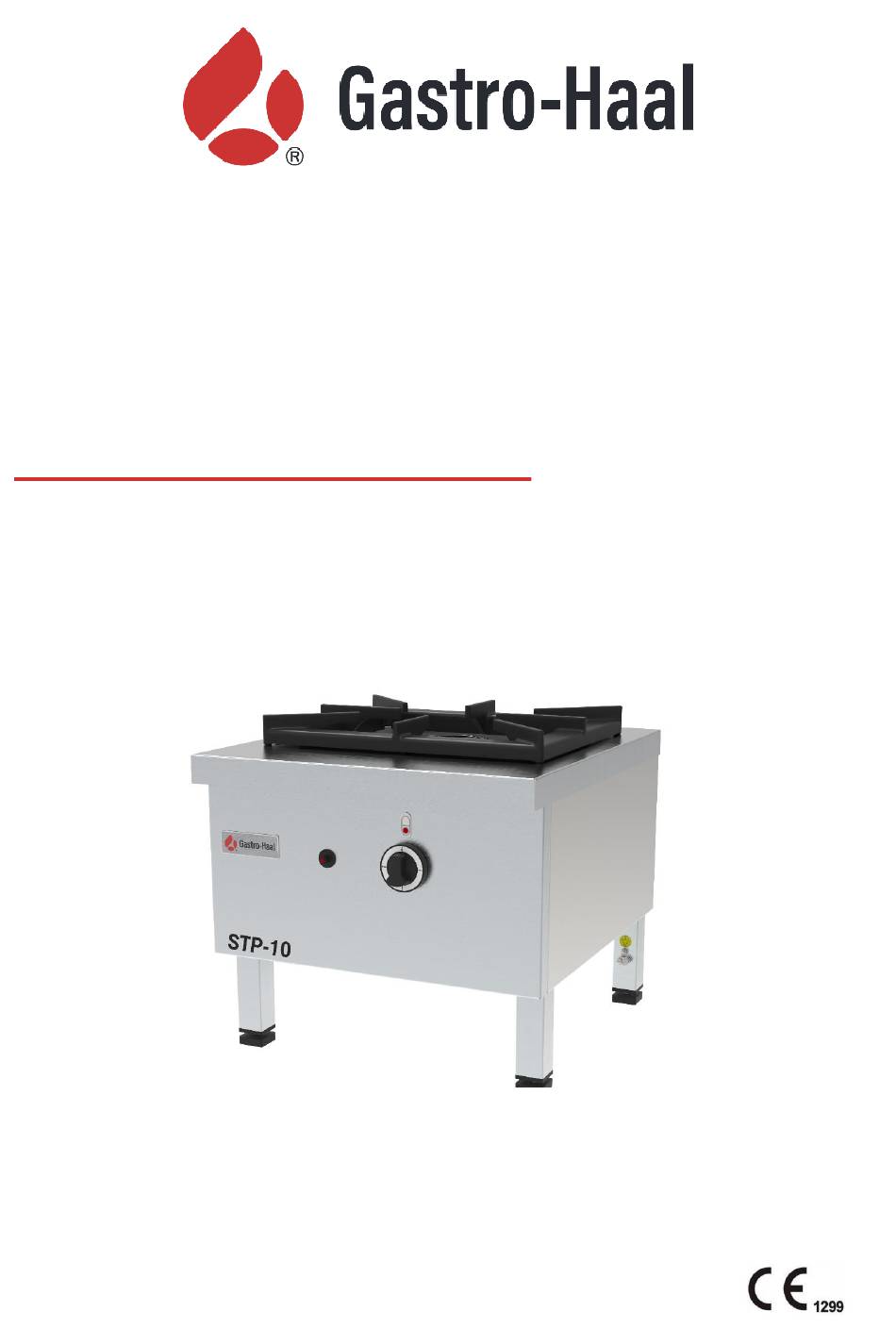

- Page 1 USER MANUAL for installation and maintenance STOCK POT RANGE STP-10 7/2024...
-
Page 2: Table Of Contents
Content 1. General information ......................3 2. Use ............................3 3. Safety regulations ........................3 4. Legal declaration ........................3 5. Technical data ........................4 6. Description of the gas stock pot range ..................5 7. Assembly ..........................5 7.1. Burner type HCV -AM ........................5 7.2. -
Page 3: General Information
1. General information Dear user, thank you for choosing this product of ours. Please read these operating instructions carefully before using the appliance so that the appliance can serve you to your satisfaction. 2. Use The gas stock pot range is used for cooking in mass catering establishments. It is a practical, economical appliance that is made of food-safe stainless steel material. -
Page 4: Technical Data
THE MANUFACTURER IS NOT RESPONSIBLE FOR THE INCORRECT TECHNOLOGICAL PROCEDURE OF THE OPERATOR DURING COOKING AND BAKING! 5. Technical data Type STP-10 Description gas stock pot range External dimensions (mm) 520x540x490 Electric heating plates (pc) Gas burners (pc) Heating Nominal input (kW) -
Page 5: Description Of The Gas Stock Pot Range
6. Description of the gas stock pot range All parts of the gas stock pot range are made of food-grade stainless steel material, so the life of the appliance is extended and cleaning is easy. The top grille is made of cast iron. This grille can be removed when cleaning the appliance. -
Page 6: Gas Valve
7.2. Gas valve 1 – Thermocouple 2 - Control screw for MAX. 3 - Control screw for MIN. 4 - Control head 5 - Ignition burner gas control screw 6 - Screw to measure the inlet 7 - Screw to measure the output 8 - Output on the ignition burner 9 –... -
Page 7: Operation
CONVERSION – ADJUSTING THE NATURAL GAS STOCK POT RANGE It is not possible to convert the gas stock pot range to propane-butane. Adjusting the natural gas stock pot range: Unscrew the cover screw (1) on the ignition burner, screw in the nozzle located under this screw as far as it will go and screw the cover screw back in. -
Page 8: Maintenance And Cleaning Of The Device
For the treatment of GASTRO-HAAL equipment, the manufacturer recommends the use of TIEFFE cleaning products that are specially tested, tested and compliant by the manufacturer. It is possible to purchase TIEFFE cleaning products directly from the manufacturer of the GASTRO-HAAL equipment or from a retailer. Important notes... -
Page 9: Attachments
10. Attachments 9.1. Technical dimensions... - Page 10 SUPPLIER: (add supplier contact here) SERVICE PROVIDER: (add service contact here) MANUFACTURER GASTRO – HAAL, s.r.o. Považská 16, 940 67 Nové Zámky, SR +421 35 6 430 115 gastro@gastrohaal.sk Company ID: 31435076 VAT ID: 2020413659 VAT ID: SK2020413659 www.gastrohaal.sk...
