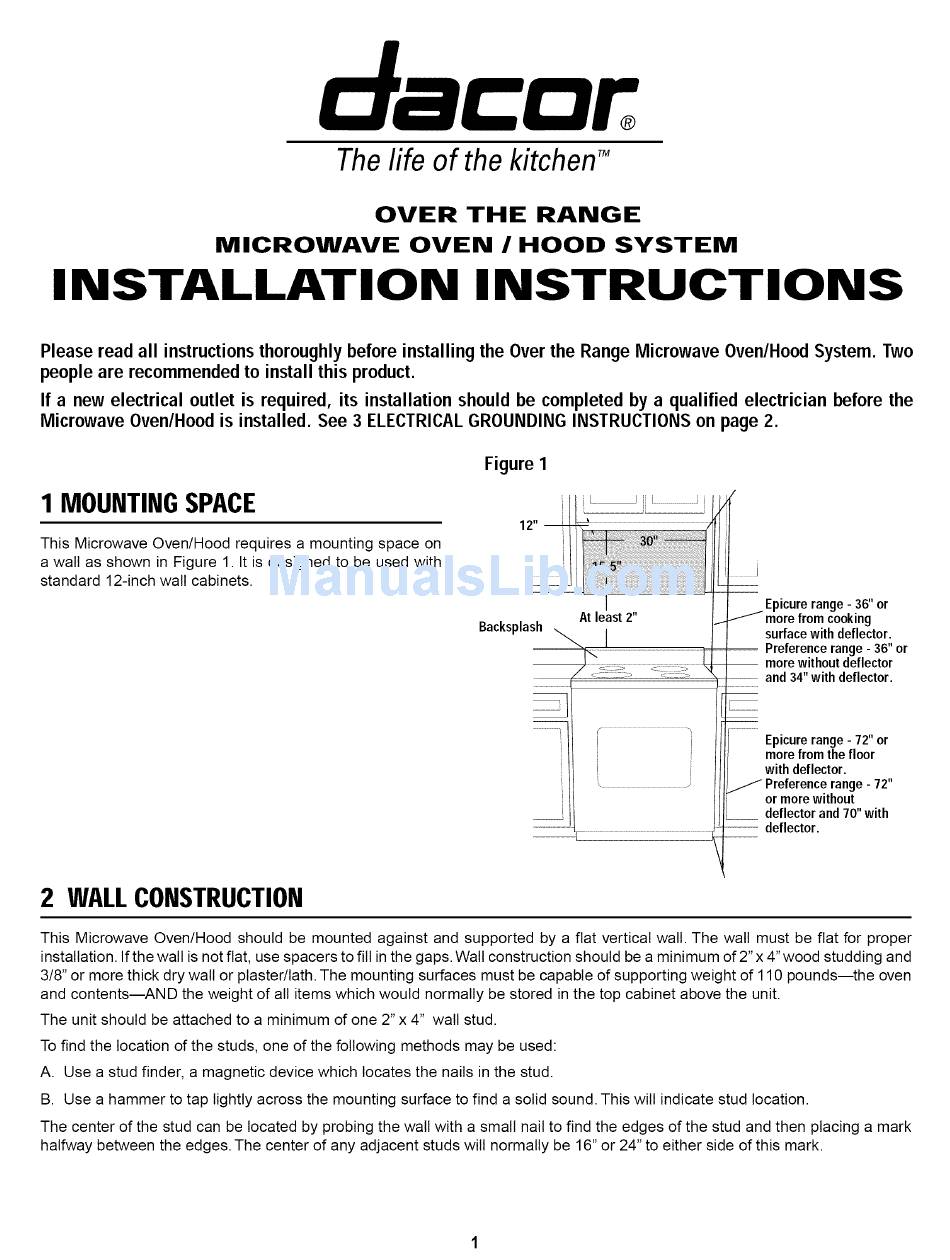

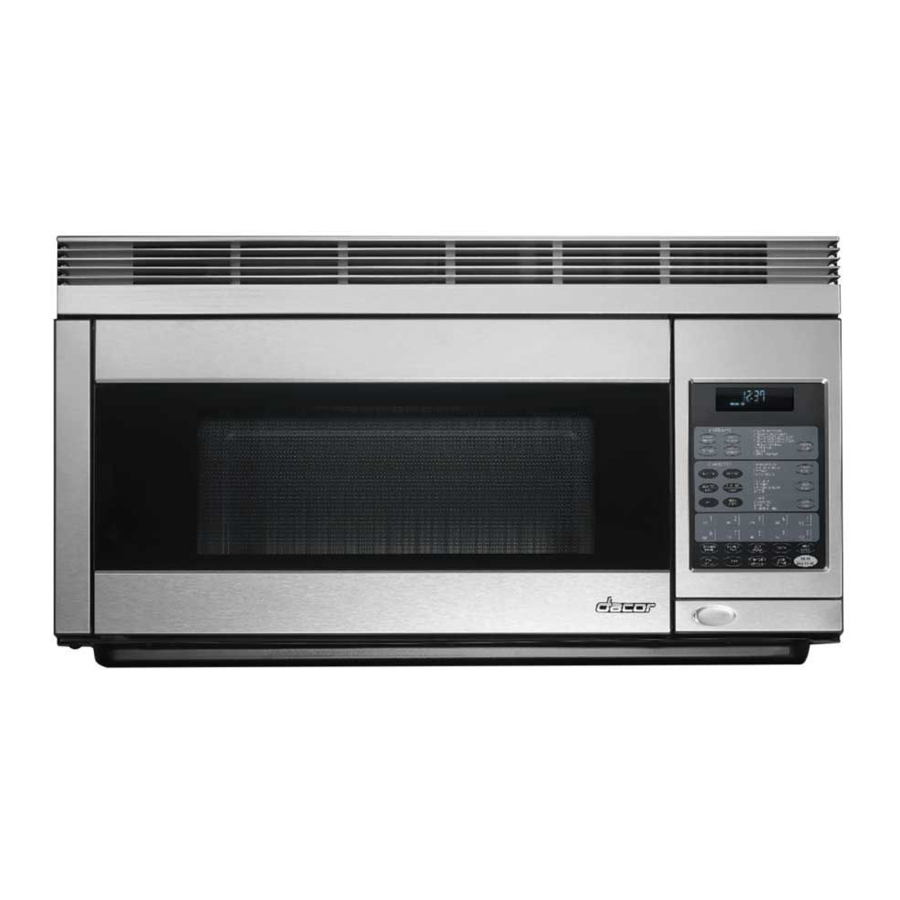

OVER THE RANGE
MICROWAVE OVEN /HOOD SYSTEM
INSTALLATION INSTRUCTIONS
Please read all instructions thoroughly before installing the Over the Range Microwave Oven/Hood System. Two
people are recommended to install this product.
If a new electrical outlet is required, its installation should be completed by a qualified electrician before the
Microwave Oven/Hood is installed. See 3 ELECTRICAL GROUNDING INSTRUCTIONS on page 2.
1 MOUNTINGSPACE
This Microwave Oven/Hood requires a mounting space on
a walt as shown in Figure 1. It is designed to be used with
standard 12-inch wall cabinets.
Figure I
Backsplash
At least2"
1
range - 36" or
more from cooking
surface with deflector.
Preference range - 36" or
more without deflector
-- and 34" with deflector.
Epicure range - 72" or
more from the floor
with deflector.
Preference range - 72"
or more without
deflector and 70" with
........... deflector.
2 WALL CONSTRUCTION
This Microwave Oven/Hood should be mounted against and supported by a flat vertical wall. The walt must be flat for proper
installation. If the walt is not flat, use spacers to fill in the gaps. Walt construction should be a minimum of 2" x 4" wood studding and
3/8" or more thick dry walt or plaster/lath. The mounting surfaces must be capable of supporting weight of 110 pounds--the oven
and contents--AND the weight of all items which would normally be stored in the top cabinet above the unit.
The unit should be attached to a minimum of one 2" x 4" walt stud.
To find the location of the studs, one of the following methods may be used:
A. Use a stud finder, a magnetic device which locates the nails in the stud.
B. Use a hammer to tap lightly across the mounting surface to find a solid sound. This will indicate stud location.
The center of the stud can be located by probing the walt with a small nail to find the edges of the stud and then placing a mark
halfway between the edges. The center of any adjacent studs will normally be 16" or 24" to either side of this mark.
