Built In Oven & Ceramic Hob Pack
SFCP10 -

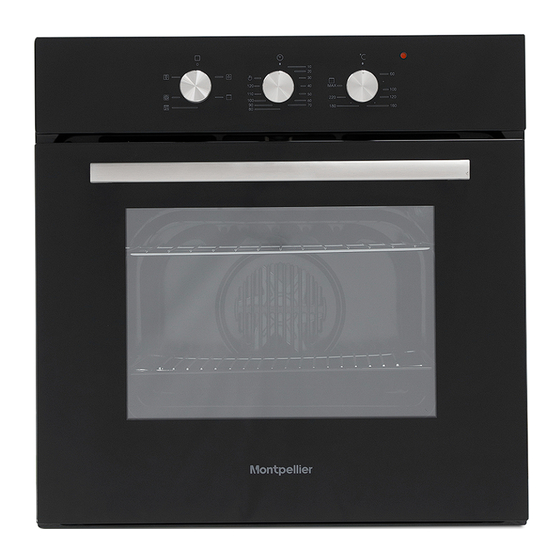

Black Glass Fan Oven (57ltr) & Touch Control Ceramic Hob
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for montpellier SFCP10
Summary of Contents for montpellier SFCP10
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Built In Oven & Ceramic Hob Pack SFCP10 - Black Glass Fan Oven (57ltr) & Touch Control Ceramic Hob Please read these instructions carefully before attempting to install or use this appliance.
- Page 2 Welcome Thank you for choosing this Montpellier Oven & Hob Pack. Our Oven & Hob Packs have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Oven &...
-
Page 3: Cut Hazard
SAFETY WARNINGS PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earth wiring system is essential and mandatory. -
Page 4: Operation And Maintenance
• This appliance is to be properly installed and earthed only by a suitably qualified person. • This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. • WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. -
Page 5: Important Safety Instructions
• During use, accessible parts of this appliance will become hot enough to cause burns. • Do not let your body, clothing or any item other than suitable cookware contact the ceramic glass until the surface is cool. • Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.4 •... - Page 6 • Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured. • Do not leave children alone or unattended in the area where the appliance is in use. •...
- Page 7 • Care should be taken to avoid touching heating elements. • Children less than 8 years of age shall be kept away unless continuously supervised. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the...
-
Page 8: Product Overview
1. max. 1800 W zone 2. max. 1200 W zone 3. max.1800 W zone 4. max.1200 W zone 5. Control panel SFCP10 - Hob The Control Panel SFCP10 - Hob 1. ON/OFF switch 4. Child lock 2. Select power level 5. -
Page 9: Product Information
Product Information The ceramic hob can meet different kinds of cuisine demands because of resistance wire heating, micro-computerized control and multi-power selection, really the optimal choice for modern families. The hob centers on customers and adopts personalized design. The hob has safe and reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life. -
Page 10: Using Your Hob
Always lift pans off the ceramic hob – do not slide, or they may scratch the glass. Using your Hob To start cooking • After power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that the hob has entered the state of standby mode. -
Page 11: When You Have Finished Cooking
When you have finished cooking Touching the heating zone selection that you wish to switch off Turn the cooking zone off by scrolling down to”0”. Make sure the display shows”0”. Turn the whole cooktop off by touching the ON/OFF control. Beware of hot surfaces “H”... -
Page 12: Residual Heat Warning
When the hob is in lock mode, all the controls are disable except the ON/OFF, you can always turn the hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operation. Residual Heat Warning When the hob has been operating for some time, there will be some residual heat. - Page 13 2. Touch timer key, “00” will show in the timer display and “0” will blink. 3. Set the time by touching the”-” or” +” control of the timer (e.g. 5) 4. Touch timer control again, then “0” will flash. 5. Set the time by touching the “-” or “+” control (e.g.9), now the timer you set is 95 minutes.
- Page 14 2. Touch timer control, the “00” will show in the timer display. and the “0” fiashes. 3. Set the time by touching the”-“ or ”+” control (e.g. 5) 4. Touch timer control again, the “0” will flash. 5. set the time by touching the ”-“ or ”+” control (e.g.9), now the timer you set is 95 minutes.
- Page 15 If the timer is set on more than one zone: When you set timer for several cooking zones, red dots of the relevant cooking zones are indicated. The timer display shows the min. timer. The dot of the corresponding zone blinks. (set to 15 minutes) (set to 45 minutes) 2.
-
Page 16: Cooking Guidelines
Cooking Guidelines ke care when frying as the oil and fat heat up very quickly, particularly if you’re using Boost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk. Cooking Tips • When food comes to the boil, reduce the power setting. -
Page 17: Heat Settings
lower setting, return the meat to the pan and add your sauce. 6. Stir the ingredients gently to make sure they are heated through. 7. Serve immediately. Heat Settings Heat setting Suitability • delicate warming for small amounts of food 1 - 2 •... -
Page 18: Care And Cleaning
Care and Cleaning What? How? Important! Everyday soiling on glass 1. Switch the power to the cooktop off. • When the power to the cooktop is (fingerprints, marks, 2. Apply a cooktop cleaner while the switched off, there will be no ‘hot stains left by food or glass is still warm (but not hot!) surface’... -
Page 19: Hints And Tips
See ‘Choosing the right Unsuitable, abrasive scourer or cookware’. Cleaning products being used. See ‘Care and cleaning’. Technical Specification SFCP10 - Hob (1 of 2) Ceramic Hob Cooking Zones 4 Zones Supply Voltage 220-240V~ 50/60Hz Installed Electric Power 6000W Product Size D×W×H(mm) -
Page 20: Selection Of Installation Equipment
D(mm) A(mm) B(mm) X(mm) SFCP10 50 mini Under any circumstances, make sure the hob is well ventilated and the air inlet and outlet are not blocked. Ensure the hob is in good work state. As shown below Note: The safety distance between the hotplate and the cupboard above the hotplate... - Page 21 A(mm) B(mm) C(mm) 50 min Air 20 min Air intake Air exit 5mm Before you install the hob, make sure that • The work surface is square and level, and no structural members interfere with space requirements. • The work surface is made of a heat-resistant material. •...
-
Page 22: Before Locating The Fixing Brackets
surfaces surrounding the hob. When you have installed the hob, make sure that • The power supply cable is not accessible through cupboard doors or drawers. • There is adequate flow of air from outside the cabinetry to the base of the hob. •... -
Page 23: Connecting The Hob To The Mains Power Supply
Cautions • The hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. • The hob shall not be mounted to cooling equipment, dishwashers and rotary dryers. • The hob shall be installed such that better heat radiation can be ensured to enhance its reliability. - Page 24 Here For You After-sales assistance If you continue to experience problems with your Oven & Hob Pack, please call the Montpellier customer service helpline on: 01759 487839 Please have all your product details available, including the model number, serial number, date of purchase, and your retailer’s details before registering a fault.
- Page 25 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
