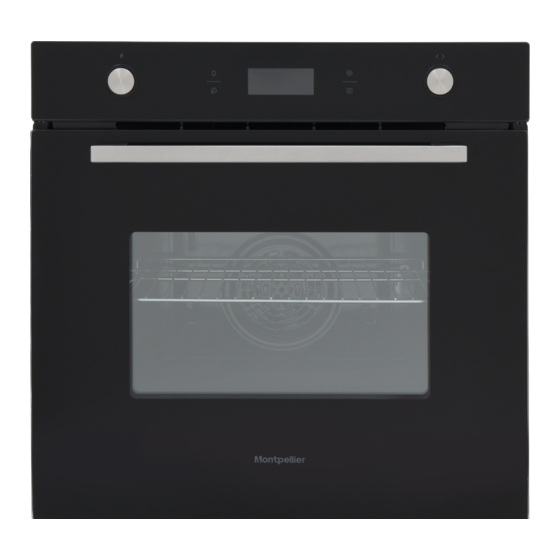

Built in Single Fan Oven
SFO73B - Touch Control
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Table of Contents
Related Manuals for montpellier SFO74B
Summary of Contents for montpellier SFO74B
- Page 1 THE PERFECT BALANCE OF FUNCTION AND STYLE LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Built in Single Fan Oven SFO73B - Touch Control Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier Built in Single Oven. Our Ovens have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Built in Oven to ensure you get the most from your purchase.
- Page 3 ACKNOWLEDGMENT Thank you for purchasing our product. We hope you enjoy using the many features and benefits it provides. Before using this product please study this entire Instruction Manual carefully. Keep this manual in a safe place for future reference. Ensure that other people using the product are familiar with these instructions as well.
- Page 4 supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. During use, the appliance becomes very hot. Care should be taken to avoid touching heating elements inside the oven.
- Page 5 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
-
Page 6: Safety Hints
SAFETY HINTS Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or damp hands or feet. For oven: Oven door should not be opened often during the cooking period. ... -
Page 7: Product Description
PRODUCT DESCRIPTION Start button Remind button Time button Stop button Symbol Function description Oven Lamp: Which enables the user to observe the progress of cooking without opening the door. Oven lamp will light for all cooking functions, except ECO function. Defr st: The circulation of air at room temperature enables qu i cker thawing of frozen food, (without the use of any heat). - Page 8 OPERATION INSTRUCTIONS 1. Clock Setting After connecting the unit to the power, the symbols " 0:00 " will be visible on the display. 1> Press " ", the hour figures will flash. 2> Rotate " K2 " to adjust the hour figures, (time should be within 0--23). 3>...
- Page 9 5. Child lock Function To Lock : press " " and " " simultaneously for 3 seconds, there will be a long " beeping " sound and the " " will be illuminated. Lock quitting: press " " and " "...
- Page 10 9. Reservation Function 1> To use reservation function, clock must be set in advance. Then, in the way of setting the clock, reserved time that oven starts to cook must be set (a> Press reservation setting button " "; b> Rotate " K2 " to set the hour time of reservation. Time should be within 0--23. c> Press reservation setting button "...
- Page 11 ACCESSORIES Wire shelf : For grill, dishes, cake pan with items for roasting and grilling. Slider bracket : For cooking larger size food, these shelf support rails on the right and left sides of the oven can be removed, dishes and tray can be put on the oven floor, using functions as Radiant grilling, Double grilling, Double grill with fan.
-
Page 12: Shelf Placement Warning
SHELF PLACEMENT WARNING: To ensure the oven shelves operate safely, correct placement of the shelves between the side rail is imperative. Shelves and the pan only can be used between the first and fifth layers. The shelves should use with the right direction, it will ensure that during careful removal of the shelf or tray, hot food items should not slide out. -
Page 13: Connection Of The Oven
CONNECTION OF THE OVEN This appliance has a total Power Rating of 3kW and can be fitted with a 13 Amp plug and plugged into a standard, switchable 13 Amp socket. Alternatively, the product can be ‘hard wired’ into a suitable fused spur adjacent to the appliance housing. -
Page 14: Ventilating Openings
VENTILATING OPENINGS When cooking is finished or in pause state or in waiting state, if the oven's center temperature is over 75 degree, the cooling fan will continue working for 15 minutes. Or when the oven's center temperature becomes lower than 75 degree, the cooling fan will stop in advance. Ventilating openings INSTALLATION min. - Page 15 REMOVING THE DOOR FROM OVEN (OPTIONAL) Disassembly of oven door components To remove the door, open the door to the maximum angle. Then pull the buckle at the door hinge backward. Close the door to an angle approximately 30°. Hold the door with one hand on each side. Lift up and slowly pull the door out from the oven.
-
Page 16: Cleaning And Maintenance
Recipes for ECO mode Recipes Temperature (℃) Level Time (min) Pre-heat Potato Cheese 90-100 Gratin Cheese 100-150 Cake Meatloaf 110-130 CLEANING AND MAINTENANCE For the sake of a good appearance and reliability, keep the unit clean. The modern design of the unit facilitates maintenance to a minimum. - Page 17 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 19 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
