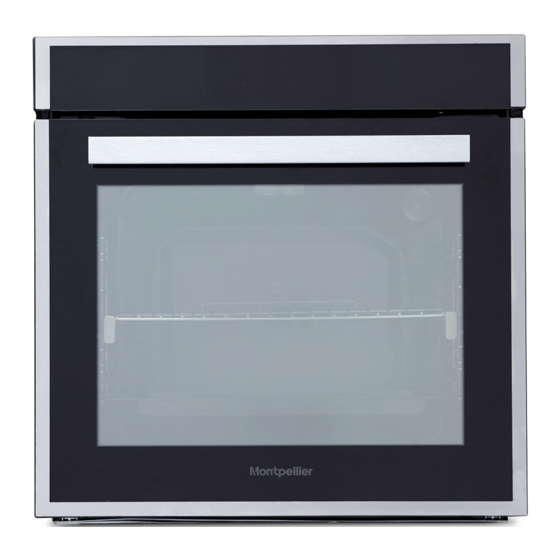

Built in 75ltr pyrolytic single oven, black & stainless steel

Advertisement

Quick Links

Built in 75ltr Pyrolytic Single Oven
SFPO77MBX - Black & Stainless Steel
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SFPO77MBX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for montpellier SFPO77MBX

  • Page 1 Installation and Operating Instructions Built in 75ltr Pyrolytic Single Oven SFPO77MBX - Black & Stainless Steel Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
  • Page 2 Welcome Thank you for choosing this Montpellier Built in Pyrolytic Oven. Our Ovens have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Built in Oven to ensure you get the most from your purchase.
  • Page 3 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Type Meaning...
  • Page 4: Table Of Contents

    CONTENTS 1.SAFETY INSTRUCTIONS ....................4 1.1 General Safety Warnings ....................4 1.2 Installation Warnings ......................6 1.3 During Use ........................7 1.4 During Cleaning and Maintenance .................8 2.INSTALLATION AND PREPARATION FOR USE ............10 2.1 Instructions for the Installer ..................10 2.2 Installation of the Oven ....................10 2.3 Electrical Connection and Safety..................
  • Page 5: Safety Instructions

    1. SAFETY INSTRUCTIONS • Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary. • This manual has been prepared for more than one model therefore your appliance may not have some of the features described within.
  • Page 6 the oven. • Handles may get hot after a short period during use. • Do not use harsh abrasive cleaners or scourers to clean the oven door glass and other surface. They can scratch the surfaces which may result in shattering of the door glass or damage to surfaces.
  • Page 7: Installation Warnings

    heating a room. • Do not use the oven door handles to lift or move the appliance. • All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories.
  • Page 8: During Use

    • Any materials (i.e. cabinets) around the appliance must be able to withstand a minimum temperature of 100°C. 1.3 During Use • When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements.
  • Page 9: During Cleaning And Maintenance

    • Do not place anything on the oven door when it is open. This could unbalance the oven or damage the door. • Do not place heavy or flammable items (e.g. nylon, plastic bag, paper, cloth, etc.) into the drawer. This includes cookware with plastic accessories (e.g.
  • Page 10 Disposal of your old machine This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
  • Page 11: Installation And Preparation For Use

    2. INSTALLATION AND do not use it and contact an authorised service person or qualified technician PREPARATION FOR USE immediately. WARNING : This appliance must be • Make sure that there are no flammable installed by an authorised service or combustible materials in the close person or qualified technician, according to vicinity, such as curtains, oil, cloth etc.
  • Page 12: Electrical Connection And Safety

    Installation in a wall unit After making the electrical connections, appliance’s power rating (also indicated insert the oven into the cabinet by pushing on the identification plate). it forward. Open the oven door and insert • During installation, please ensure 2 screws in the holes located on the oven that isolated cables are used.
  • Page 13 • Fix the supply cable in the cable clamp and then close the cover. • The terminal box connection is placed on the terminal box. Blue Brown Yellow+Green EN - 12...
  • Page 14: Product Features

    3. PRODUCT FEATURES Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. List of Components 1. Control Panel 2. Oven Door Handle 3. Oven Door Control Panel 4. Full Touch Control Timer EN - 13...
  • Page 15: Use Of Product

    4. USE OF PRODUCT heating function is ideal for baking food, such as pizza, evenly in a short period of Oven Functions time. The fan evenly disperses the heat of the oven, while the lower heating element * The functions of your oven may be bakes the food.
  • Page 16: Use Of The Full Touch Control Timer

    food sticking and place food in the centre of function, remove the wire oven shelves the grid. Always place a tray beneath the and shelf supports (if available) and food to catch any drips of oil or fat. It is ensure the oven door is closed.
  • Page 17 Lamp → Defrost → Turbo → Upper and Adjusting the Cooking Duration Time Lower → Upper and Lower with Fan → Grill This function helps you to cook for a (with/without turnspit) → Double Grill (with/ fixed period of time. Prepare the food without turnspit) → Double Grill with Fan for cooking and put it in the oven. Then, (with/without turnspit). select the desired cooking function and The operated heaters and accessories the temperature.
  • Page 18: Accessorries

    sound. After this, each time the MINUS sensor is pressed, a different signal will sound. There are three different types of signal sound. Select the desired sound and do not press any other buttons. After a short time, the selected signal sound will be saved.
  • Page 19: Cleaning And Maintenance

    Open the oven door into the grilling position and leave it in this position for 20 seconds. Water will drip to the collector. Cool the oven and wipe the inside of the door with a dry towel. This procedure must be applied regularly.
  • Page 20 • You may need to use a liquid cleaning and outside of the glass parts. Then, material occasionally to completely rinse and dry them thoroughly with a dry clean the oven. cloth. Cleaning the Stainless Steel Parts (if available) • Clean the stainless steel parts of your appliance on a regular basis.
  • Page 21: Maintenance

    Removal of the Wire Shelf To remove the wire rack, pull the wire rack as shown in the figure. After releasing it from the clips (a), lift it up. If the oven door is a triple glass oven door, the third glass layer can be removed the same way as the second glass layer.
  • Page 22: Troubleshooting&Transport

    6. TROUBLESHOOTING&TRANSPORT 6.1 Troubleshooting If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Check whether there is power supplied. Oven does not switch on. Power is switched off.
  • Page 23: Technical Specifications

    7. TECHNICAL SPECIFICATIONS 7.1 Energy Fiche Brand Model SFPO77MBX Type of Oven ELECTRIC Mass 36,0(+/-2) Energy Efficiency Index - conventional 112,8 Energy Efficiency Index - fan forced 106,0 Energy Class Energy consumption (electricity) - conventional kWh/cycle 0,99 Energy consumption (electricity) - fan forced...
  • Page 24 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
  • Page 25 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
