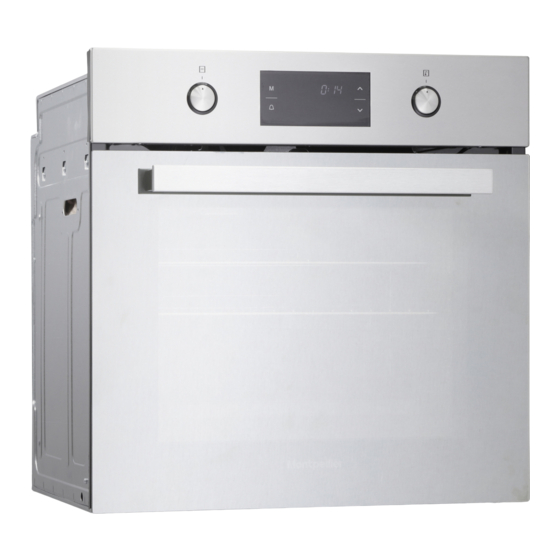

Built in 65ltr Mirror Glass Single Oven
SFOM69MX - Stainless & Mirror Glass
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Table of Contents
Related Manuals for montpellier SFOM69MX
Summary of Contents for montpellier SFOM69MX
- Page 1 Installation and Operating Instructions Built in 65ltr Mirror Glass Single Oven SFOM69MX - Stainless & Mirror Glass Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier Built in Single Oven. Our Ovens have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Built in Oven to ensure you get the most from your purchase.
- Page 3 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Type Meaning...
-
Page 4: Table Of Contents
CONTENTS 1.SAFETY INSTRUCTIONS ....................4 1.1 General Safety Warnings ....................4 1.2 Installation Warnings ......................6 1.3 During Use ........................7 1.4 During Cleaning and Maintenance .................8 2.INSTALLATION AND PREPARATION FOR USE ............10 2.1 Instructions for the Installer ..................10 2.2 Installation of the Oven ....................10 2.3 Electrical Connection and Safety.................. -
Page 5: Safety Instructions
1. SAFETY INSTRUCTIONS • Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary. • This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. - Page 6 the oven. • Handles may get hot after a short period during use. • Do not use harsh abrasive cleaners or scourers to clean the oven door glass and other surface. They can scratch the surfaces which may result in shattering of the door glass or damage to surfaces.
-
Page 7: Installation Warnings
heating a room. • Do not use the oven door handles to lift or move the appliance. • All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories. -
Page 8: During Use
• Any materials (i.e. cabinets) around the appliance must be able to withstand a minimum temperature of 100°C. 1.3 During Use • When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. -
Page 9: During Cleaning And Maintenance
• Do not place anything on the oven door when it is open. This could unbalance the oven or damage the door. • Do not place heavy or flammable items (e.g. nylon, plastic bag, paper, cloth, etc.) into the drawer. This includes cookware with plastic accessories (e.g. - Page 10 Disposal of your old machine This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
-
Page 11: Installation And Preparation For Use
2. INSTALLATION AND do not use it and contact an authorised service person or qualified technician PREPARATION FOR USE immediately. WARNING : This appliance must be • Make sure that there are no flammable installed by an authorised service or combustible materials in the close person or qualified technician, according to vicinity, such as curtains, oil, cloth etc. -
Page 12: Electrical Connection And Safety
Installation in a wall unit After making the electrical connections, appliance’s power rating (also indicated insert the oven into the cabinet by pushing on the identification plate). it forward. Open the oven door and insert • During installation, please ensure 2 screws in the holes located on the oven that isolated cables are used. - Page 13 • Fix the supply cable in the cable clamp and then close the cover. • The terminal box connection is placed on the terminal box. Blue Brown Yellow+Green EN - 12...
-
Page 14: Product Features
3. PRODUCT FEATURES Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. List of Components 1. Control Panel 2. Oven Door Handle 3. Oven Door Control Panel 4. Timer 5. -
Page 15: Use Of Product
4. USE OF PRODUCT heating elements will start operating. The static cooking function emits heat, ensuring even cooking of food. This is ideal for 4.1 Oven Controls making pastries, cakes, baked pasta, Oven function control knob lasagne and pizza. Preheating the oven for 10 minutes is recommended and it is best Turn the knob to the corresponding symbol to use only one shelf at a time in this... -
Page 16: Use Of The Visio Touch Programmer
start operating. This function is used for Faster Grilling faster grilling of thicker food and for grilling Function: The oven’s of food with a larger surface area. Both the thermostat and upper heating elements and grill will be warning lights will energised along with the fan to ensure even switch on, and the grill cooking. - Page 17 screen. Set the required cooking period using the “+” and “-” sensor buttons while Function Description the timer is in this position. When you have completed the adjustment, wait until Mode key the current time of day is displayed on the screen and until the Duration Time symbol remains illuminated.
-
Page 18: Accessorries
To deactivate the key lock, press and hold the “+” button until the key lock symbol disappears from the display. While the key lock is active, only the power button will be usable, all other buttons will remain locked. If there is no oven activity for 6 hours while the oven is operating, the oven will automatically switch off. - Page 19 • Check whether the cleaning materials discolour with age. are appropriate and recommended by If a large amount of fat is spilled onto the manufacturer before use on your the liner it may reduce its efficiency. To appliance. overcome this problem, set the oven to maximum temperature for about 20 - 30 • Use cream cleaners or liquid cleaners minutes.
-
Page 20: Maintenance
1. Push the glass in the direction of B and 2. Open the saddle bracket (a) (with the aid release from the location bracket (x). Pull of a screwdriver) up to the end position. the glass out in the direction of A. To replace the inner glass: 3. - Page 21 • Insert the new bulb (resistant to 300 °C) to replace the bulb that you removed (230 V, 15-25 Watt, Type E14). • Replace the glass lens, and your oven is ready for use. The lamp is designed specifically for use in household cooking appliances.
-
Page 22: Troubleshooting&Transport
6. TROUBLESHOOTING&TRANSPORT 6.1 Troubleshooting If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Check whether there is power supplied. Oven does not switch Power is switched off. -
Page 23: Technical Specifications
7. TECHNICAL SPECIFICATIONS 7.1 Energy Fiche Brand SFO67MBX Model SFOM69MX Type of Oven ELECTRIC Mass 31,6(+/-2) Energy Efficiency Index - conventional 116,1 Energy Efficiency Index - fan forced 103,1 Energy Class Energy consumption (electricity) - conventional kWh/cycle 0,98 Energy consumption (electricity) - fan forced... - Page 24 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 25 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
