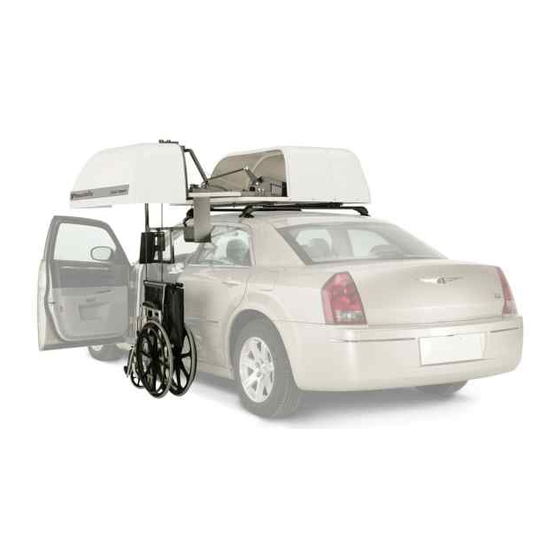

- Page 1 Chair Topper ® A roof top box that lifts and stows a folding wheelchair 3 User manual...
- Page 4 Chair Topper ® Thank you for choosing a Chair Topper ® from BraunAbility! The following manual is an important part of the product, providing you with information on how to achieve maximum performance and safe operation. Keep the manual in a safe place so that you can refer to it when necessary.
- Page 5 Chair Topper® Safety Operation Emergency operation Maintenance Troubleshooting Technical specification Introduction for users “Product certificate” at the end of the manual.
- Page 6 Chair Topper ® Safety Safety decals located on Chair Topper /...
- Page 7 Chair Topper® My Chair Topper Combined height of vehicle and Chair Topper at the time of installation, ______________ cm. Please note that changing the wheels, rims or other modifications to the vehicle might affect the total height.
-
Page 8: Operation
4. Press the IN button and carefully hoist the hook. Release the button when the Chair Topper is fully closed. BEFORE TRANSPORT / 1. Place the hand held control in its cradle to avoid accidental activation of the Chair Topper. - Page 9 Chair Topper® Ensure that the hook is inserted all the way in. Vehicle door fully open Wheelchair facing towards the front of the vehicle...
-
Page 10: Emergency Operation
Use the supplied hook to remove the lock pin through hole in the cover. Turn the knob 15 full revolutions counter clock wise. Use the slotted tube to reach. Use the emergency kit, supplied with the Chair Topper, to facilitate the emergency operation. - Page 11 Chair Topper® Grab the cover and pull the slide frame out.
- Page 12 Chair Topper ® DOWN Use the supplied hook to remove the lock pin. Use the emergency kit, supplied with the Chair Topper, to facilitate the emergency operation.
- Page 13 DANGER During this procedure the wheelchair will suddenly drop and free fall from the Chair Topper. Unless held by a person of adequate strength, it may cause injury to anyone in its path as well as cause damage to the vehicle.
- Page 14 Place the seat hook and chains on top of the fold frame. Continue to push in the slide frame until it is fully closed. Use the emergency kit, supplied with the Chair Topper, to facilitate the emergency operation.
- Page 15 Chair Topper® Turn knob 15 revolutions clock wise. Use the slotted tube to reach.
-
Page 16: Maintenance
Chair Topper ® Maintenance Perform maintenance at the scheduled intervals according to the number of cycles or elapsed time whichever comes first. Always contact your dealer for disassembly. Wash and/or wax the ABS plastic in the same manner which you care for your vehicle. - Page 17 Chair Topper® Inspect chain bolts and all chain connecting points. Inspect master links and chain blocks for positive securement and/or possible damage. Replace, resecure or correct as needed. Inspect chains for lubrication, damage, misalignment, binding or twisting. Lubricate with light oil.
- Page 18 Chair Topper ® Repeat all checks listed in the two previous sections. Repeat maintenance procedures. Inspect fuse holder and electrical connections. Correct as needed. Inspect the channel on both sides for damage, securement or obstructions. Clean, resecure or correct as needed.
-
Page 19: Troubleshooting
- Check that the fuse is intact and that the vehicle battery is charged. - Follow the instructions for “Emergency operation”. Unusual noises heard during operation..- Do not use the Chair Topper. Contact your installation technician for an overhaul. - Page 20 Chair Topper ® Please contact your installation engineer if you require further assistance or need to ask questions about warranty. We recommend keeping the following information to hand at all times / Contact details for the installation engineer / Model /...
-
Page 21: Technical Specification
Chair Topper® Technical specification Dimensions A, length ............143 cm B, width ............131 cm C, height ..........46+10* cm D, extension ..........91 cm E, chain lenght ...109 cm (200 cm with ext. kit) F, max folded height .........93 cm G, max folded apex height .... - Page 22 Chair Topper ® Introduction for users BraunAbility Europe AB would like you, as a user, to feel secure and comfortable with your new product. For that reason, it is your installer’ s duty to go through the following with you /...
-
Page 26: Product Certificate
Conforms to following directives, standards and regulations / BraunAbility Europe AB 2006/42/EEC Åkerivägen 7 ECE R-10 443 61 Stenkullen ISO 11154 Sweden BraunAbility Europe AB, Stenkullen Phone: +46 302 254 00 2019-04-02 E-mail: info @braunability.eu www.braunability.eu Declares that the product / Jan M Jensen Managing Director... - Page 27 Accredited by SWEDAC as testing laboratory in accordance with ISO/IEC 17025:2005 Quality system certified in accordance with ISO 9001:2015 Illustrations, descriptions and specifications in the user manual are based on current product information. BraunAbility Europe AB reserves the right to make alterations without previous notice. © 2019 BraunAbility Europe AB...
- Page 28 BraunAbility Europe AB Åkerivägen 7 Phone: +46 302 254 00 443 61 Stenkullen E-mail: info@braunability.eu Sweden www.braunability.eu...
