3.7 — Side Door Compartment
Check local codes for side door locking requirements. A hasp is provided, so that the side door can be secured with a
customer supplied padlock if necessary.
120 GFCI Outlet
3.7.1— LED Indicators
• Green Ready LED: Illuminates when the control pad is set to AUTO. Also indicates when the generator is run-
ning.
• Red Alarm LED: Illuminates when the control pad is set to OFF or a fault is detected. Contact your authorized
servicing dealer if necessary.
• Yellow Maintenance LED: Indicates that maintenance is required.
3.7.2— 120V GFCI Outlet/15 Amp Breaker
Some units are equipped with an external 15 amp, 120 volt GFCI convenience outlet located in the side door compart-
ment.
When the generator is running, this outlet may also be used to power items outside the home such as lights or power
tools.
This outlet does not provide power if the generator is not running. This outlet is protected by a 15 Amp circuit breaker
located in the side door compartment.
EcoGen Automatic Standby Generator Owner's Manual

LED Indicators

15 Amp Outlet Breaker
GFCI BREAKER
ON
ON
ON
ON ON
GENERATOR DISCONNECT

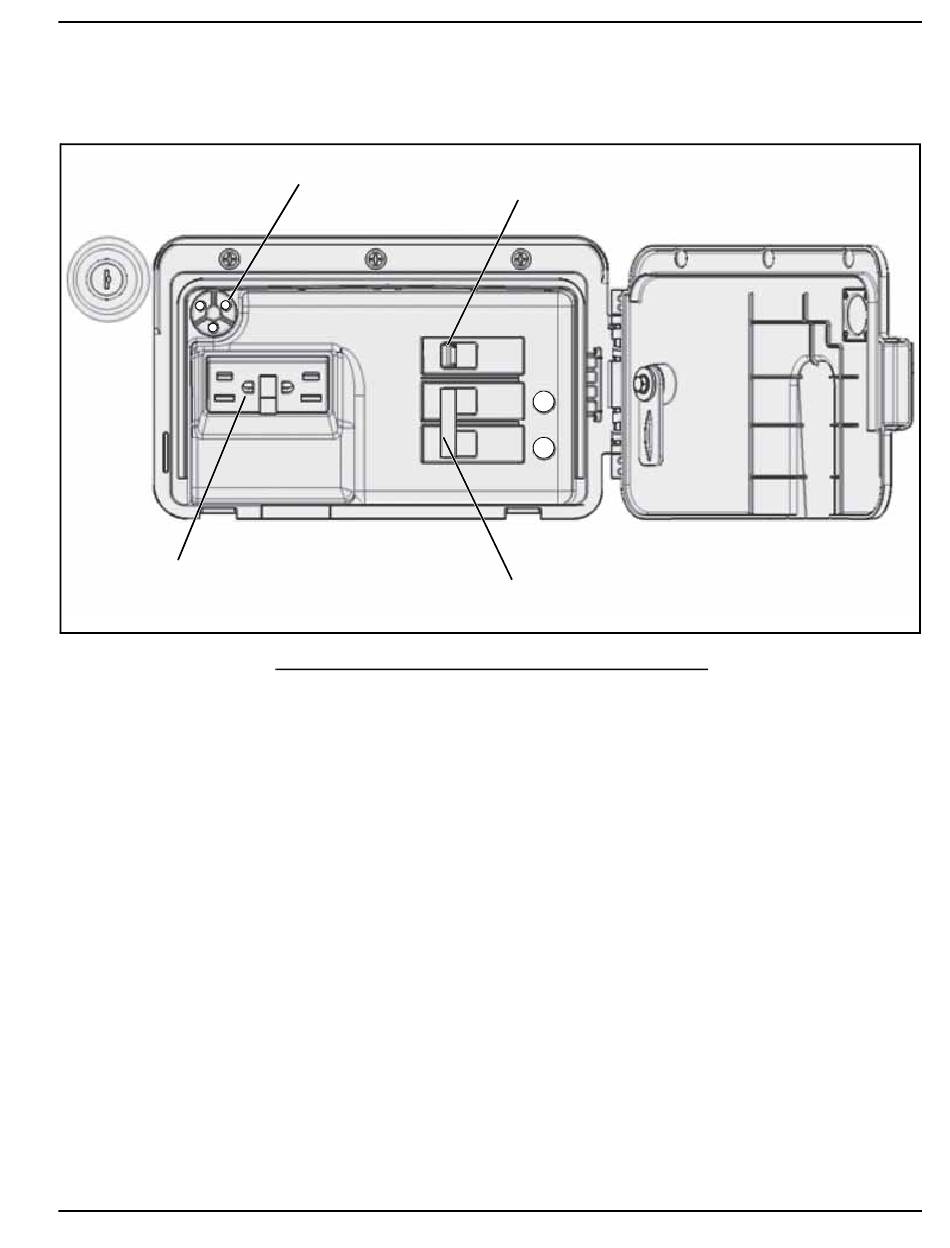

Figure 3-4. Open Side Door Compartment
OFF
OFF
OFF
OFF
OFF
Generator Disconnect
Circuit Breaker
Operation
