Ultra-safe 96424S User Instruction Manual

1-800-850-5914
PHOENIX, AZ USA
WWW.ULTRASAFEUSA.COM
MODEL:
______________________
SIZE: ________________
DATE: ________________
Same, but 100% Tie-Off.
WARNING
This product is part of a personal
fall arrest system. The user must
read and follow the manufacturer's
instructions for each component of
the system. These instructions must
be provided to the user of this
product. The user must read and
understand these instructions before
using this product. Manufacturer's
instructions must be followed for
proper use and maintenance of this
product. Alteration or misuse of this
product, or failure to follow
instructions may result in serious
injury or death.
USER INSTRUCTION MANUAL
MODEL: 96424S, 96426S, 96426SYCT, 96426SLYCADE,
96516, 96516YCT, 96516YCTADJ, 96516LSD,
96516SD, 96516YSD
DESCRIPTION:
MEETS OSHA & ANSI Z359.1
Anchorage: The anchorage to which this product is
attached must be capable of sustaining a static load in the
direction applied by the personal fall arrest system of at
least 3600 lbs. with certification of a qualified person or 5000
lbs. without certification. When more than one personal fall
arrest system is attached to the same structure, the strength
requirements stated above must be multiplied by the number
of personal arrest systems attached to the structure.
Plan your personal fall
Before installing and using this equipment, consider all
factors affecting your safety during use of this equipment.
Warning: Manufacturer's instructions supplied with this
product at time of shipment must be followed. Failure to do
so could result in serious injury or death. Contact
manufacturer if instructions are needed.
• Warnings and instructions must be read and
understood before using equipment.
• Equipment must be used by trained personnel only.
• Users must understand all OSHA regulations, ANSI
standards, and other relevant regulations and
standards pertaining to fall protection equipment.
This product is part of a personal fall
arrest system; a fall arrest system is
required if there is any risk that a worker
may fall from an elevated position. It is a
requirement that the fall arrest system
be used any time a working height of six
feet or more is reached. Working height
is defined as the distance from the
walking / working surface to a grade
or lower level.
THE FOLLOWING IS RECOMMENDED AS
PART OF FALL ARREST SYSTEM
Note: See additional instructions on buckle adjustment for proper fit.
Maximum free-fall distance six feet or maximum fall arrest force of
1800 lbs. Avoid lower level contact.

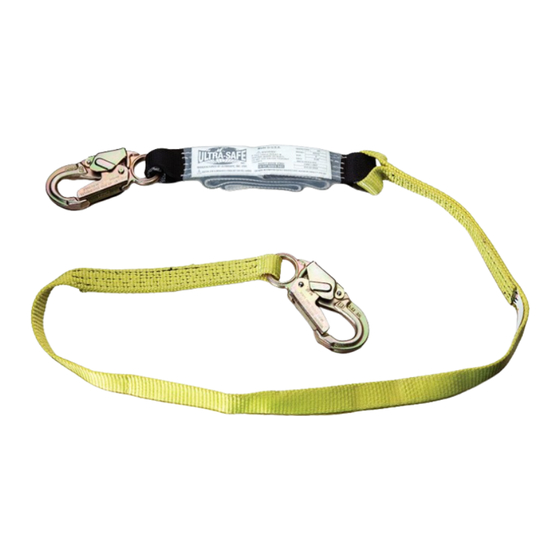

Shock Absorbing Lanyard
Material: Nylon
Warning tags located
in front and back of shock
absorber or located towards
hook, D-ring or eye end.
NOTE:Seeadditionalinstructionsonbuckleadjustmentforproperfit.Maximumfree-falldistancesixfeetorenergyabsorber
arrestingforceof900lbsperANSIormaximumfallarrestforceof1800lbsperOSHA.Avoidlowerlevelcontact.
LANYARD WITH SHOCK PACKS
3600 LB RATED GATE HOOKS
• Energy absorber resting force 900 lbs.
Plus 42 inch maximum extension.
• Rig lanyard to allow a maximum free fall distance
of not more than six feet.
• Connectors and anchorage points must be
compatible and able to support 5,000 lbs.
• Do not allow lanyard to contact sharp or abrasive surfaces,
sparks or temperature above 180 degrees.
• Snap hooks with gate openings larger than one inch (1")
must not be connected to D-rings on harnesses and belts.
• Remove from service if any damage is detected.
protection system.
• Use energy absorbers or retractable lanyards
when hazard of free fall can occur.
• Connectors and anchorage points must be compatible
and able to support 5,000 lbs. Always work directly under
anchorage to avoid a swing fall injury.
• Anchorage and tie off points must be at a height that will
not allow a lower level to be struck should a fall occur.
Do not allow product to contact sharp or abrasive surfaces,
sparks or temperatures above 180 degrees.
• Snap hooks with gate openings larger than
one inch (1") must not be connected.
• Remove from service if any damage is detected.
1. Back 'D' ring is for fall arrest
2. Shoulder 'D' rings. (if present) are for retrieval use
only use locking snaps.
3. Side 'D' rings (if present) are for positioning only.
4. Front 'D' ring (if present) is for fall arrest
(foot first falls only, 2 foot max free fall), work
positioning, travel restraint or rescue
5. Hip attachment elements are for work positioning
or travel restraint
6. Visual load indicator
7. Park lanyard here
1
Anchorage connector
material: Nylon
Warning tags are
located towards hook,
D-ring or eye end.
1
2
3
4
5
6
7
313L3
