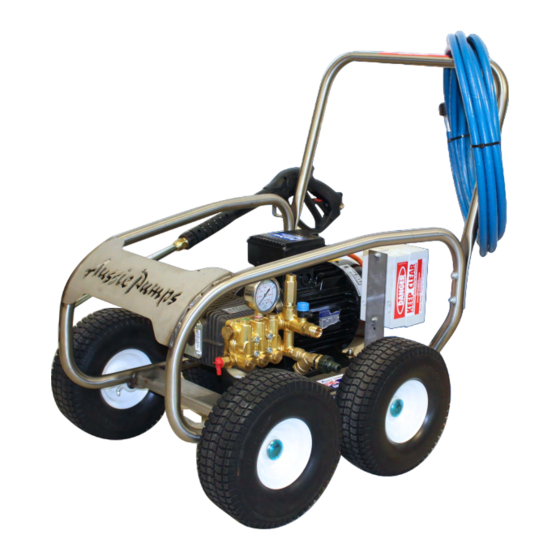

NEW SUPER SCUD
MONSOON SERIES
Single Phase High Pressure Washer
& Grit Blaster
Operator's Instruction Manual
Covers:
Monsoon 100/ 2.2kW
Monsoon 140/ 2.2kW
THE WORLD'S TOUGHEST
SINGLE PHASE PRESSURE CLEANERS
Operators must read this manual &
understand it before operating this machine
NO OPERATOR
CERTIFICATION REQUIRED
Dec 2018
NEW stainless
steel frame
Ref: MONSP0318
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aussie Pumps Monsoon 100
Summary of Contents for Aussie Pumps Monsoon 100
- Page 1 MONSOON SERIES Single Phase High Pressure Washer Dec 2018 & Grit Blaster Operator’s Instruction Manual Covers: NEW stainless Monsoon 100/ 2.2kW steel frame Monsoon 140/ 2.2kW THE WORLD’S TOUGHEST SINGLE PHASE PRESSURE CLEANERS Operators must read this manual & Ref: MONSP0318...
-
Page 2: Blaster Risk Assessment
Aussie Safe Operator training In line with the National Occupation Health & Safety Commission’s requirements the data below applies to the following Aussie Scud high pressure water blasters: Monsoon 100 RISK RANKING METHOD: Monsoon 140 Risk is the combination of the likelihood of a specific... - Page 3 Aussie Pumps Dec 2018 Risks associated with operating a high pressure cleaner … for use in daily SAFE WORK METHOD STATEMENT Risk Hazard Risk Controls Rating Entanglement with hose Personal injury of the Warning stickers (tripping, falling) operator or bystanders ...
-
Page 4: Table Of Contents
Aussie Pumps Dec 2018 AUSSIE ECO CLEAN BLASTER OPERATING & MAINTENANCE INSTRUCTIONS * * W A R N I N G * * AUSSIE MONSOON SERIES HIGH PRESSURE WATER BLASTERS ARE DESIGNED FOR PROFESSIONAL OPERATORS ONLY IMPORTANT INSTRUCT OPERATORS IN CARE AND USE OF THE MACHINE BEFORE USE! Contents: G. -
Page 5: Safety Precautions
Buy extra length hoses if extended range required. SPECIFICATIONS Model Safety Pump Pump Flow rate Motor Pump Weight Monsoon 100 Class A 1600 WBL1114 2800 3HP 2.2kW, 1450 (110 BAR) IP56 Monsoon 140 Class A 2000... -
Page 6: Assembly & Preparation For Use
Aussie Pumps Dec 2018 FRAME & WHEEL CARE …. MAINTAIN OPTIMUM PERFORMANCE 2. Do not leave the unit strapped Aussie Monsoon blasters now come down for extended periods. fitted with top quality flat free tyres. To maintain tyre shape ... -
Page 7: Hose Connections
Aussie Pumps Dec 2018 Hose Connections HIGH PRESSURE SPRAY CAN PENETRATE 1. Connect high pressure hose to machine outlet. THE SKIN & CAUSE SERIOUS INJURY! 2. If optional low pressure downstream, in-line Never point the spray gun at yourself, other chemical injector is to be used, connect the people or animals. -
Page 8: Before Starting The Machine
Aussie Pumps Dec 2018 Before starting the machine DO NOT RUN EXCESSIVE BY-PASS 1. Ensure machine is level SWITCH MACHINE OFF WITHIN TWO MINUTES OF 2. Turn on water supply. CEASING OPERATION AS EXCESSIVE BY-PASS CAN CAUSE HEAT BUILD UP IN PUMP AND SUBSEQUENT DAMAGE. -
Page 9: Stopping The Machine
Aussie Pumps Dec 2018 If using the detergent injector, flush out the PUMP CRANKCASE LUBRICATION chemical by running clean water through the Proper pressure washer pump crankcase lubrication system. will help extend the working life of the machine. Allow machine to run for 1 minute without load Follow these important guidelines. -
Page 10: Instructions For Use Of Grit Blast Kit
Aussie Pumps Dec 2018 Instructions for use of grit blast kit WARNING: To reduce the risk of injury, always protect eyes and face with goggles and mask, and hands and arms with heavy work gloves when spraying abrasive materials. Sand probe Connect lance of grit blast kit in to gun in place of the vario lance. -
Page 11: Troubleshooting
Aussie Pumps Dec 2018 TROUBLE SHOOTING GUIDE FAULT CAUSE REMEDY Pump running normally but Pump sucking air Check water supply and possibility of air pressure low on installation ingress. Valves sticking Check and clean or replace if necessary Unloader valve seat faulty... -
Page 12: Parts Identification
Aussie Pumps Dec 2018 PARTS IDENTIFICATION Aussie Monsoon Single Phase Blasters … Operation & Maintenance Manual... -
Page 13: Replacement Parts
Aussie Pumps Dec 2018 REPLACEMENT PARTS Monsoon Posi- Part No Description tion Lance & Gun C4723.45.115 T10 VARIO LANCE M4021108007 AL13 GUN WITH MELTED HANDLE& QC M22 Hose AHW06M22X2X8 8 MTR HP HOSE (R2, 3000 PSI) with M22 couplings Unloader... -
Page 14: Pump Parts
Aussie Pumps Dec 2018 PUMP PARTS WBL 917, 1114 Kit/Position No. Part No. Description Kit 141 B019826973 Valve Kit (12 pieces) Kit 12 B049813973 Seal Kit Minor (15 pieces) Kit 70 B049841973 Seal Kit Major (21 pieces) Kit 83 B049847973... -
Page 15: Service Notes
Aussie Pumps Dec 2018 Notes/ Service Record Aussie Monsoon Single Phase Blasters … Operation & Maintenance Manual... -
Page 16: Warnings
WARNINGS OVERSPEEDING HIGH PRESSURE SETTING Do not operate machine over maximum rpm. The high pressure pump is factory set to operate Over speeding can cause serious pump damage. at its rated pressure. DO NOT ADJUST. Tampering with the pressure regulator will void EXCESSIVE BYPASS CHECK NOZZLE MONTHLY Do not run on excessive by-pass.
