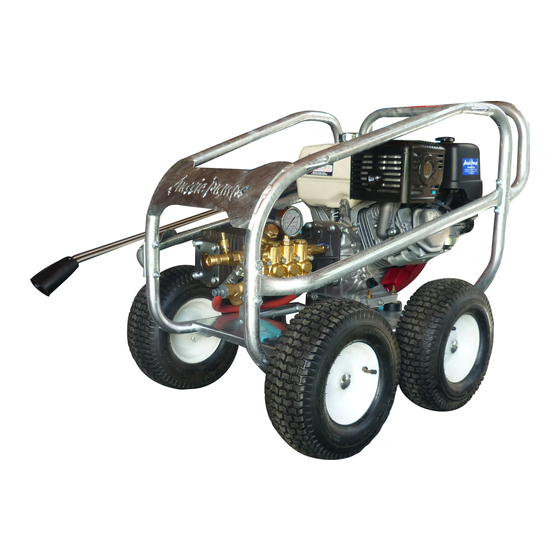

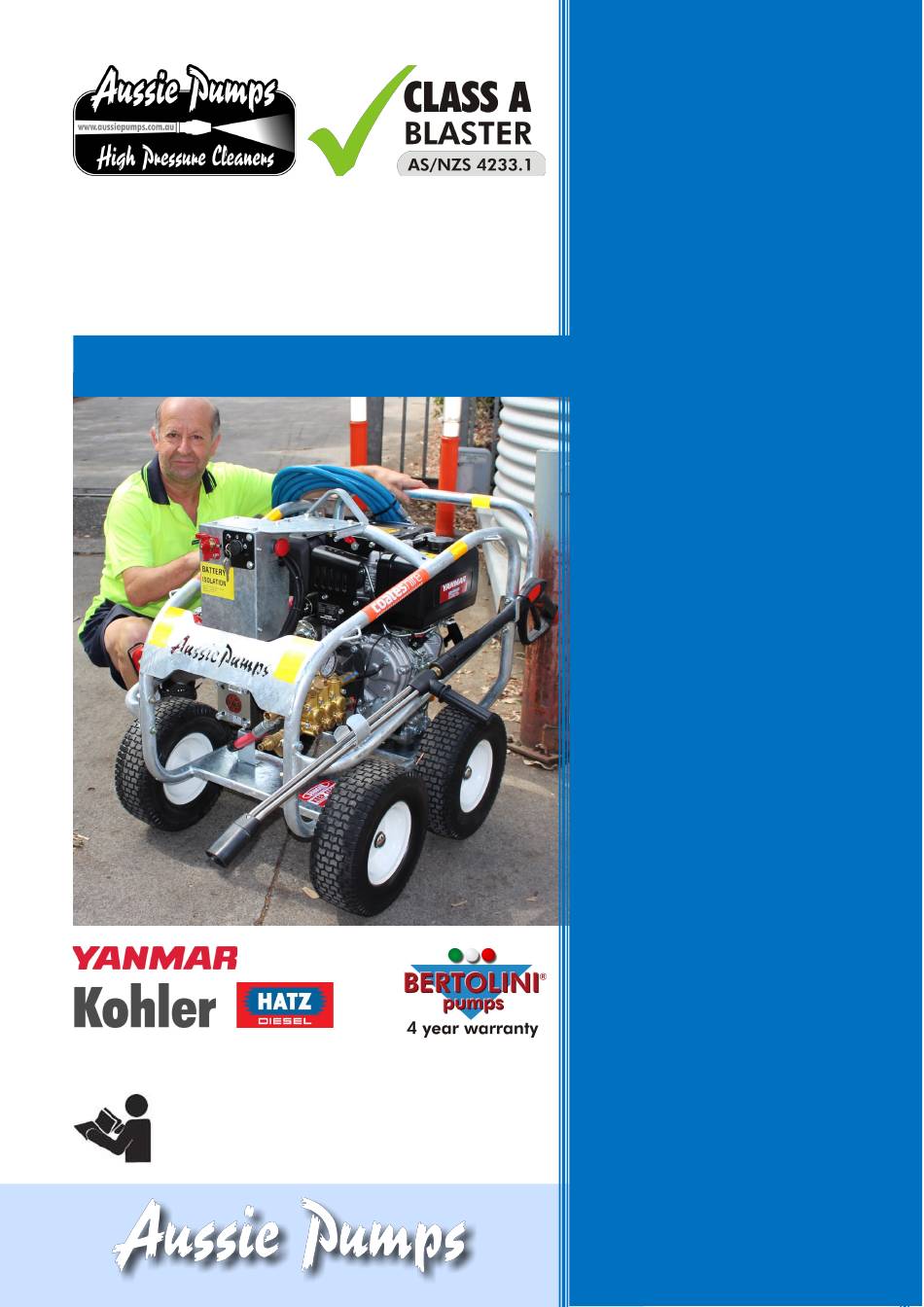

- Page 1 AUSSIE SCUD Jan 2019 MINE BOSS SERIES OPERATOR’S INSTRUCTION MANUAL Covers models: Scud 350 Scud 351 Scud 400 NEW Predator A IMPORTANT: TO REDUCE RISK OF INJURY, READ OPERATING REF: ASCUDMANVERA1 INSTRUCTIONS CAREFULLY BEFORE USING EQUIPMENT...
- Page 2 (Class A) Class A machine operators do not require Aussie Pumps provides training for all certification under AS/NZS 4233.1 Class A machine operators FREE of charge DESCRIPTION: Engine drive high pressure cold water blasters designed for professional cleaning applications.
- Page 3 Aussie Pumps Jan 2019 Risks associated with operating a high pressure cleaner … for use in daily SAFE WORK METHOD STATEMENT Risk Hazard Risk Controls Rating Entanglement with hose Personal injury of the Warning stickers (tripping, falling) operator or bystanders ...
-
Page 4: Table Of Contents
Aussie Pumps Jan 2019 AUSSIE ECO CLEAN SCUD & PREDATOR SERIES OPERATING & MAINTENANCE INSTRUCTIONS Contents: Applying detergent ......... 9 Blaster Risk Assessment ........2 Stopping the machine ........9 Warranty .............. 4 Care & Maintenance ........9-10 Safety precautions ..........5 Troubleshooting .......... -
Page 5: Specifications
Aussie Pumps Jan 2019 SAFETY PRECAUTIONS - IMPORTANT NEVER direct the spray jet at any surface that 11. DO NOT attempt to disconnect any hose or may contain asbestos material. coupling with pressure still in the hose. 2. NEVER direct the spray jet at any person or 12. -
Page 6: Assembly & Preparation For Use
Aussie Pumps Jan 2019 ASSEMBLY AND PREPARATION FOR USE Do not mix different grades of oil as this may affect the machines performance. If alternative Before proceeding with assembly of your new Aussie oil is used, first empty out oil by unscrewing Eco Scud high pressure blaster, check that all parts drain plug in bottom of machine. -
Page 7: Hose Connections
Aussie Pumps Jan 2019 Hose Connections Starting the engine Connect high pressure hose to machine outlet. Emergency stop button shown reset If optional low pressure downstream, in-line chemical injector is to be used, connect the injector tube to the detergent inlet and place... -
Page 8: Applying Detergent
Aussie Pumps Jan 2019 HIGH PRESSURE SPRAY CAN PENETRATE WARNING: CHECK NOZZLES AND REPLACE IF WORN THE SKIN & CAUSE SERIOUS INJURY! If pressure drops off, check nozzle for wear. Nozzles Never point the spray gun at yourself, other people or should be replaced on a regular basis (every month for animals. -
Page 9: Care & Maintenance
Aussie Pumps Jan 2019 CARE AND MAINTENANCE: Pump oil level can be checked with the dip stick under the breather cap or by AFTER EACH USE viewing the oil sight gauge where fitted. The oil level is correct if level is in the If cleaning agents have been mixed with the incoming centre of the gauge. -
Page 10: Troubleshooting
Aussie Pumps Jan 2019 TROUBLE SHOOTING GUIDE (for engine troubleshooting refer to engine manual) FAULT CAUSE REMEDY Pump sucking air Check water supply & possibility of air ingress. Valves sticking Check & clean or replace if necessary Unloader valve seat faulty Check &... -
Page 11: Parts Identification
Aussie Pumps Jan 2019 PARTS IDENTIFICATION WORK SMART … STAY SAFE | Aussie Scud Mine Boss (Class A) … Operator’s Instruction Manual... -
Page 12: Replacement Parts
Aussie Pumps Jan 2019 REPLACEMENT PARTS SCUD Series Predator Position Part No Description Nozzles C915030M HP NOZZLE (15°ANGLE, TIP SIZE 30) C915035M HP NOZZLE (15°ANGLE, TIP SIZE 30) C915045M HP NOZZLE (15°ANGLE, TIP SIZE 45) C915065M HP NOZZLE (15°ANGLE, TIP SIZE 65) -
Page 13: Resetting The Safety Valve
Aussie Pumps Jan 2019 Resetting the Safety Valve The safety valve prevents damage to the pump pressure, the adjusting screw (D) on the safety closed two or three times to ensure safety seals and valves caused by a pressure spike. - Page 14 Aussie Pumps Jan 2019 PUMP PARTS TTL1330 (Scud 400) Kit No. Description Pieces Full Oil seal & Sight Glass kit Valve Kit Seal Kit Minor Seal Kit Major Oil Seal Kit Valve cap kit FREE pump service guide available WORK SMART … STAY SAFE...
-
Page 15: Service Record
Aussie Pumps Jan 2019 PUMP PARTS KTL 1635 (Predator A) Kit No. Description Pieces Oil Seal & Sight Glass Kit Valve Kit Seal Kit Minor Seal Kit Major Oil Seal Kit Valve cap kit SERVICE RECORD Refer to page 16 for details of service schedule. A service record must be maintained to keep warranty valid... -
Page 16: Warnings
WARNINGS OVERSPEEDING HIGH PRESSURE SETTING Do not operate machine at over 3200 rpm The high pressure pump is factory set to operate (engine speed). Over speeding can cause at its rated pressure. DO NOT ADJUST. serious pump damage. Tampering with the pressure regulator will void warranty and can be DANGEROUS.
