Feb 2019

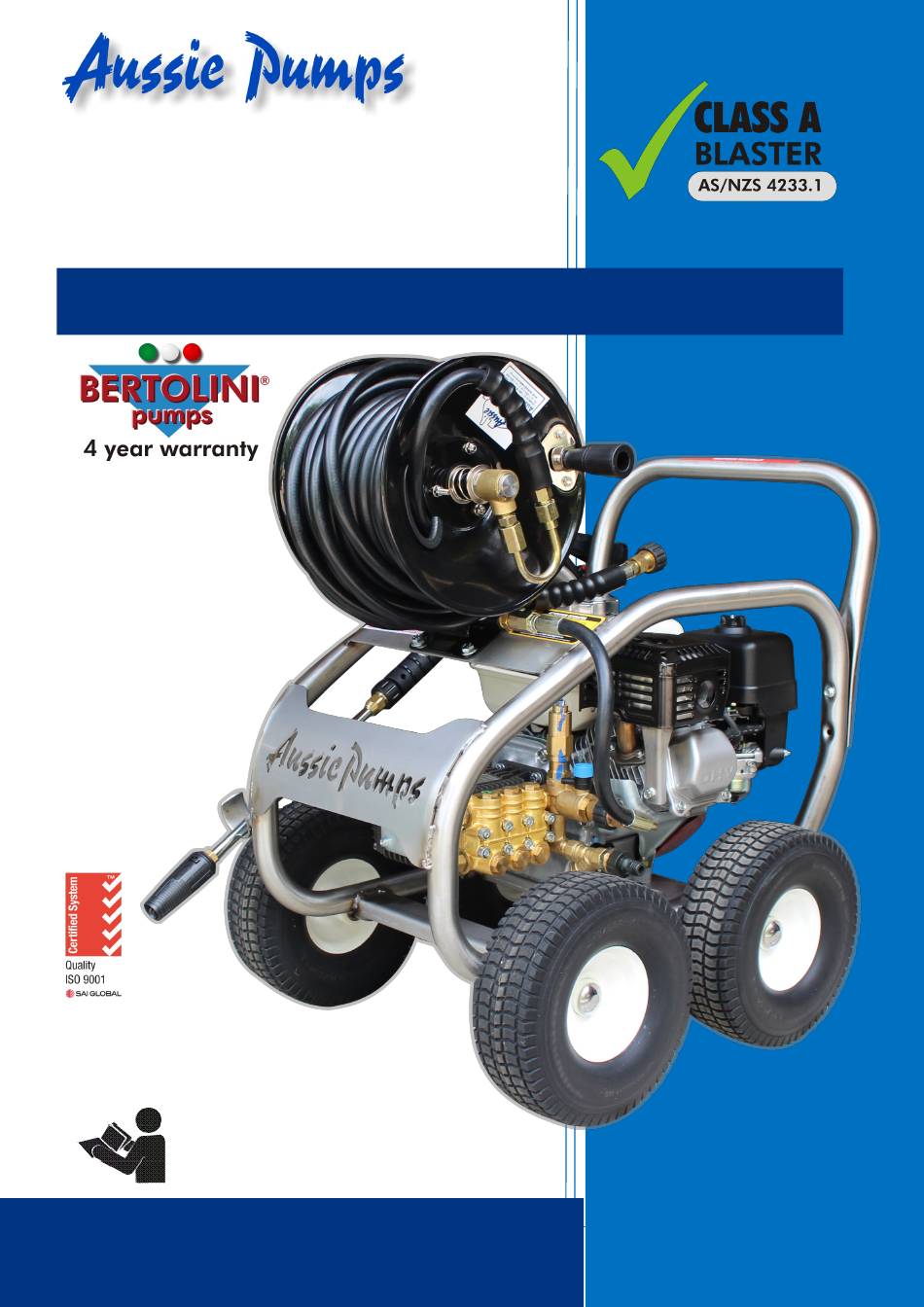

Aussie Eco-Clean
Direct Drive Super Scud Series
OPERATOR'S INSTRUCTION MANUAL
NEW SUPER SCUDS
stainless steel frames
Models:
3,000 psi AB Scud 30
4,000 psi AB Scud 40
Operators must read this manual and
understand it before operating this machine
Australian Pump Industries
Aussie AB Direct Drive Super Scud Series ... Operation & Maintenance Manual
www.aussiepumps.com.au
Aussie Pumps
No operator certification required
Feb 2019
REF: ABSS_SERIES_Dec 2018
Advertisement
Table of Contents
Related Manuals for Aussie Pumps Eco-Clean Direct Drive Super Scud Series
Summary of Contents for Aussie Pumps Eco-Clean Direct Drive Super Scud Series
- Page 1 Feb 2019 Aussie Pumps Aussie Eco-Clean Direct Drive Super Scud Series No operator certification required OPERATOR’S INSTRUCTION MANUAL Feb 2019 NEW SUPER SCUDS stainless steel frames Models: 3,000 psi AB Scud 30 4,000 psi AB Scud 40 Operators must read this manual and...
-
Page 2: Blaster Risk Assessment
Feb 2019 Aussie Pumps AUSSIE HIGH PRESSURE BLASTER RISK ASSESSMENT MODELS: In line with the National Occupation Health & Safety Commission’s requirements the data below applies to the following Aussie Scud high pressure water blasters: RISK RANKING METHOD: AB Scud 30 (Pocket Super Scud) - Page 3 Feb 2019 Aussie Pumps Risks associated with operating a high pressure cleaner … for use in daily SAFE WORK METHOD STATEMENT Risk Hazard Risk Controls Rating Entanglement with hose Personal injury of the Warning stickers (tripping, falling) operator or bystanders ...
-
Page 4: Table Of Contents
Feb 2019 Aussie Pumps AUSSIE ECO CLEAN AB SCUD CADET SERIES OPERATING & MAINTENANCE INSTRUCTIONS GUARANTEE … EXCLUSIVE 4 YEAR PUMP + 3 YEAR ENGINE WARRANTY (HONDA ) This Aussie Eco Clean product is guaranteed against Where possible return faulty goods to the place of faults in manufacture for two years from purchase. -
Page 5: Safety Precautions
Feb 2019 Aussie Pumps SAFETY PRECAUTIONS - IMPORTANT NEVER direct the spray jet at any surface that DO NOT attempt to disconnect any hose or may contain asbestos material. coupling with pressure still in the hose. NEVER direct the spray jet at any person or DO NOT join hoses together to extend the animal. -
Page 6: Assembly & Preparation For Use
Feb 2019 Aussie Pumps ASSEMBLY AND PREPARATION FOR USE Before proceeding with assembly of your new Aussie 3. Check oil level in engine and fill with proper AB Scud Cadet high pressure blaster, check that all grade oil if necessary. (SAE 10W-30 for Honda parts listed below are included. -
Page 7: C: Before Starting
Feb 2019 Aussie Pumps Before starting the machine OPERATE IN WELL VENTILATED AREAS ONLY. 1. Ensure machine is level Throttle … fully open 2. Turn on water supply. 3. Pull gun trigger until water starts to flow in a Choke … closed position steady steam then release trigger. -
Page 8: E: Pressure Washing
Feb 2019 Aussie Pumps Pressure washing Applying detergent WEAR PROPER FACE PROTECTION WHEN OPERATING NOTE: The detergent injection uses a venturi action and operates when low pressure is selected on the PRESSURE WASHER! gun assembly. High pressure AB Scud 30: single vario lance. -
Page 9: G: Stopping The Machine
Feb 2019 Aussie Pumps Using Foamer (supplied with AB30 hose reel version) Stopping the machine 1. Using brass nipple supplied (C1500.06, M22 x 1. If using the detergent injector, flush out the ¼M), attach foaming nozzle to the gun in place of Vario lance. -
Page 10: Care & Maintenance
Feb 2019 Aussie Pumps CARE & MAINTENANCE: AFTER EACH USE PREVENTATIVE MAINTENANCE If cleaning agents have been mixed with the incoming Keep filter in supply hose connection clean, rinse water, it is essential to flush the machine with clean regularly. -
Page 11: Troubleshooting Guide
Feb 2019 Aussie Pumps TROUBLE SHOOTING GUIDE FAULT CAUSE REMEDY Pump sucking air Check water supply and possibility of air ingress. Check and clean or replace if necessary Valves sticking Pump running normally but Check and replace Unloader valve seat faulty... -
Page 12: Parts Identification
Feb 2019 Aussie Pumps PARTS IDENTIFICATION AB30 Model Engine Pump Pump Flow Frame style Pump Model Pressure rate (psi) (lpm) AB Scud 30 Honda GX200 6.5HP WBXG3025 3100 4785 Four wheel full frame 3200 AB Scud 40 Honda GX390 13HP... -
Page 13: Replacement Parts
Feb 2019 Aussie Pumps REPLACEMENT PARTS AB Scud Position Part No Description Nozzles C915030M HP NOZZLE (15° ANGLE, TIP SIZE 30) A & B C915500MSS LP DETERGENT NOZZLE Lance C4723.45.115 VARIO LANCE C3924.01 684MM SS DOUBLE LANCE C/W BOOT M4021108007 AL13 GUN WITH MELTED HANDLE&... -
Page 14: Pump Parts
Feb 2019 Aussie Pumps PUMP PARTS WBXG3025 (AB30) (KIT 82 - WBG2525) Kit No. Part No. Description B049840973 Seal Kit Major (21 pieces) B049843973 Seal Kit Minor (15 pieces) 169 (WGXG3025) B049963973 Oil seal kit (8 pieces) 82 (WBG2525) B049846973... - Page 15 Feb 2019 Aussie Pumps PUMP PARTS TMG4035 (AB Scud 40) Kit No. Part No. Description B069867973 VALVE KIT B079806973 SEAL KIT MINOR B079804973 SEAL KIT MAJOR B049837973 OIL SEAL KIT Item 25 B040120322 OIL SIGHT GLASS Item 29 B049832973 OIL FILLER PLUG...
-
Page 16: Warnings
Feb 2019 Aussie Pumps WARNINGS OVERSPEEDING HIGH PRESSURE SETTING Do not operate machine at over 3200rpm The high pressure pump is factory set to (engine speed). Over speeding can cause operate at its rated pressure. DO NOT ADJUST. serious pump damage.
