Despite its small size, the SC5510B/11B is an instrument-grade, high performance synthesizer with easy
to program register-level control. It functions as a standard synthesized CW source with the added
capability of a sweep/list mode that makes it ideal for applications ranging from automated test systems
to telecommunication equipment to scientific research labs. Being small and modular, it is the ideal
solution system integration applications that require a high-performance RF source. In addition, it could
be used as a general-purpose lab source. Figure 2 shows the block diagram of the device, and the
following sub-sections provide details to its operation.
Direct
REF
IN
OCXO
10 MHz
10
REF
OUT

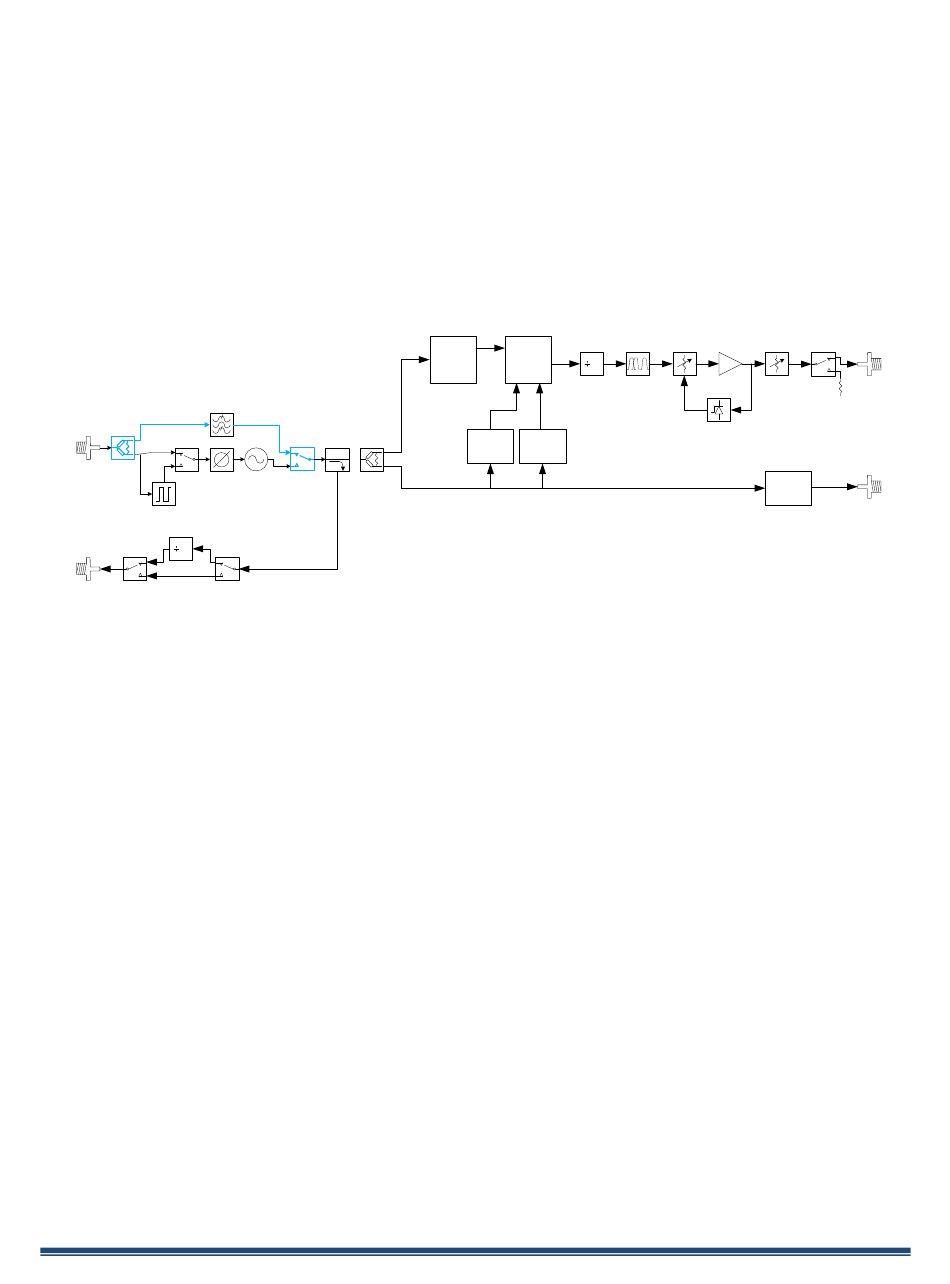

Figure 2. Block diagram of the SC5510B/11B.

RF Generation

The SC5510B/11B is a 100 MHz to 20 GHz low phase noise and low spur synthesizer, using a hybrid
architecture comprising of phase lock, harmonic generation, and a DDS functions. Coarse tuning is
accomplished by PLL and harmonic generators, while fine tuning is accomplished with the variable
modulus DDS, providing exact- frequency generation. Isolation between the internal oscillators, their
mixed IF products, harmonics, and inter-modulation products is accomplished by internal EMI sealed
cavities. A hybrid architecture with well-shielded cavities improves the overall phase noise performance
and reduces the spurious signal content of this compact size frequency synthesizer. Signals are
synthesized from an internal 10 MHz TCXO reference clock, or an external 10 MHz reference.
The SC5510B/11B has 2 independent channels; channel 1 frequency range is from 100 MHz to 20 GHz
with frequency resolution of 1 Hz, while the range on channel 2 is from 25 MHz to 3 GHz with 25 MHz
step. Channel 1 has calibrated power level adjustment, but this feature is not available on channel 2.
The output of channel 1 features a switch for pulsing the waveform, this switch is directly controlled via
a pin of the front digital I/O connector. Furthermore, list and sweep modes are only available for
channel 1. A typical use of the 2 channels is to drive LO ports of mixers for a dual stage downconverter
where the first RF stage is tunable and the second IF stage is fixed.
SC5510B/11B User Manual
O
P E R A T I O N
100 MHz
VCXO
100 MHz
10 GHz -
Fine Step
20 GHz
N
Gen
Gen
Harmonic FracN
Step Gen Step Gen
Rev 1.2.0
FIL
BANK
ALC
25 MHz
Step Gen
PULSE
SWITCH
RF
OUT
RF2
OUT
