Summary of Contents for JUNO JDZ7051

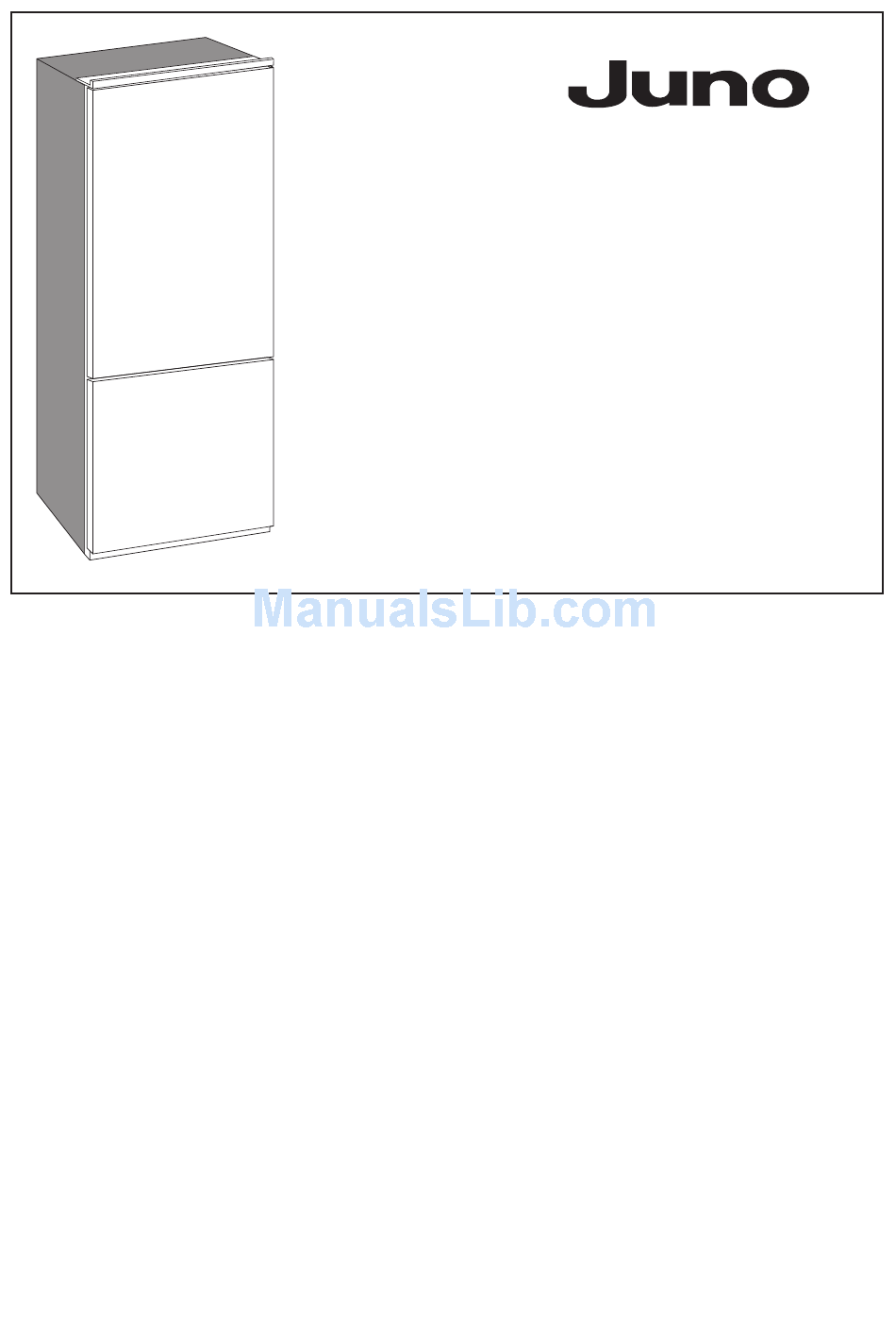

- Page 1 JDZ 7051 GEBRAUCHSANWEISUNG OPERATING INSTRUCTIONS 2222 350-32...
-
Page 2: General Safety
If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death-trap for a child. -
Page 3: Environment Protection
Use - Thawing - Ice-cube production - ZERO DEGREE Compartment ......17... - Page 4 In this case the dial must be set to a higher temperature to allow automatic defrosting and therefore reduced energy consumption.
-
Page 5: Zero Degree Compartment
The humidity contained in the foods (in particular fruit and vegetables) make optimum storage conditions possible. The two top drawers are fitted with slits (A - see figure) (adjustable by means of sliding levers) which allow the humidity inside the drawers to be varied. - Page 6 For safety, store in this way only one or two days ¥ only freeze top quality, fresh and thoroughly at the most.
-
Page 7: Maintenance
- unscrew the light cover securing screw. - unhook the moving part as shown in the figure. If the light does not come on when the door is open, check that it is screwed into place properly. If it still does not light up, change the bulb. -
Page 8: Customer Service And Spare Parts
To carry out complete defrosting of the freezer compartment proceed as follows: 1. pull out the plug from the wall socket or turn the PR151 thermostat knob to the ÇOÈ setting; 2. remove any stored food, wrap it in several layers of newspaper and put it in a cool place;... - Page 9 1) Using a screwdriver release bracket (1) by pressing on the internal spring (Fig. 11) and withdraw it from its seat together with the door; 2) remove plug (2) and fit it in the hole left open on the opposite side; 180°...
- Page 10 D567 For safety reasons, minimum ventilation must be as shown in Fig. Attention: keep ventilation openings clear of obstruction. It is necessary that the niche is provided with a conduct of ventilation having the following dimensions: Depth 50 mm Width...
- Page 11 D265 holes. D726 Position the runners (A) at the top and bottom of the inside of the kitchen unit as shown in Fig. and mark the position of the external holes. After preparing the holes, screw the runners to the kitchen unit door using 3.5x16 mm screws.
