Daewoo COL1608 User Manual page 5

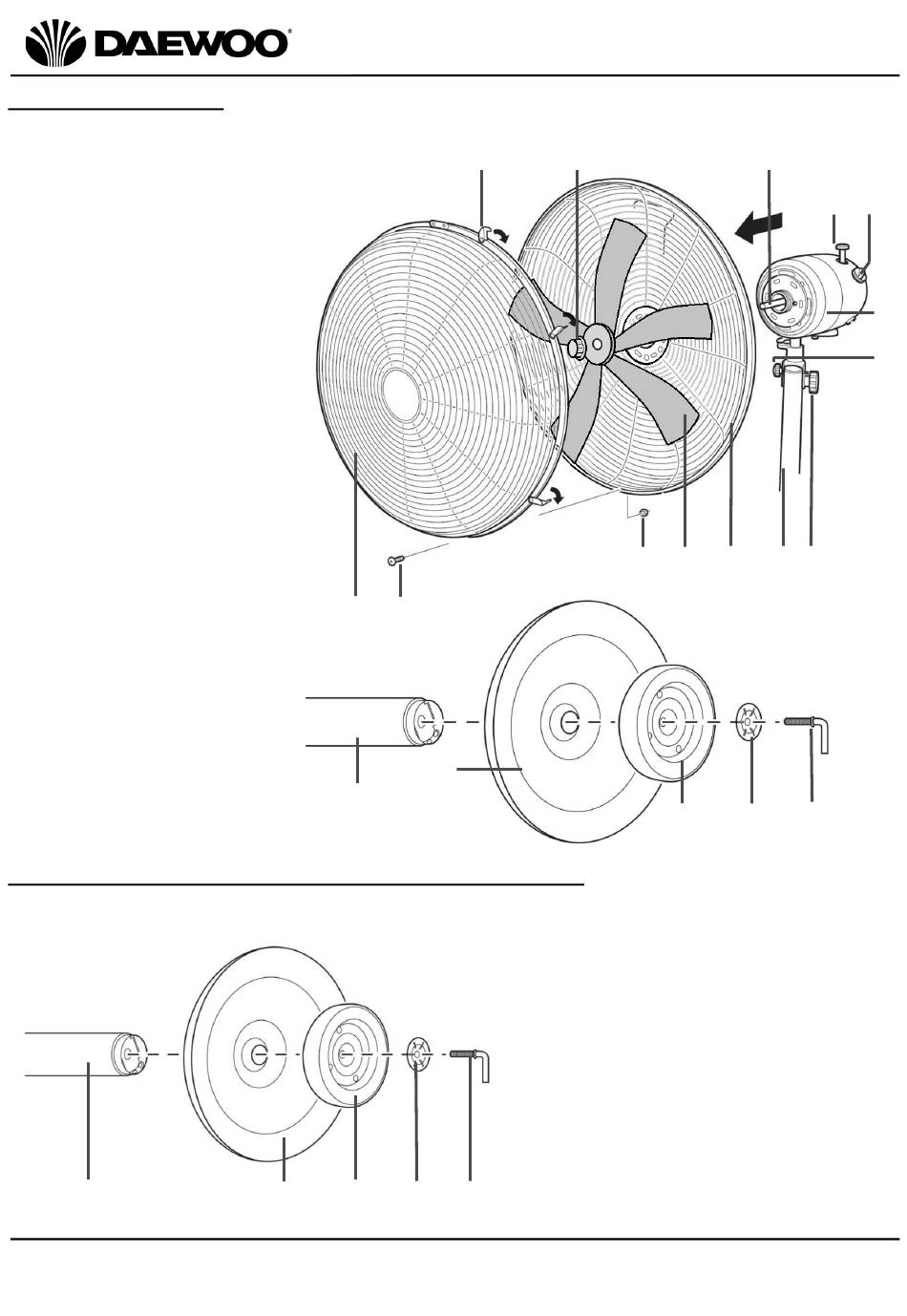

Description of Parts
1 Front Guard
2 Front Guard Screw (x1)
3 Acrylic Fan Blade
4 Rear Guard
5 Front Guard Nut (x1)
6 Stand
7 Pivot Screw
8 Tilt Screw
9 Motor Housing
10 On/Off/Speed Control
11 Oscilla�ng Control
12 Motor Spindle
13 Fan Blade Retaining Nut
14 Guard Clips
15 Stand Base
16 Weight
17 Clamping Washer
18 L – Shaped Screw
19 Locking Screw (not shown)
20 Pivot Bolt (not shown)
Assembling Your Pedestal Fan – Fitting the Base (15)
6
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
1 2
15
6
16 17 18
15
13
14
5
1. A�ach the Stand (6) to the Base (15)
as follows:
Place the Weight (16) and Clamping
Washer (17) on the underside of the
Base (15) as shown le�.
Thread the L - Shaped Screw (18)
through the assembly and into the
thread in the Stand (6). Tighten firmly
but do not over�ghten.
16" Chrome Pedestal Fan
Model No. COL1608
User Manual
