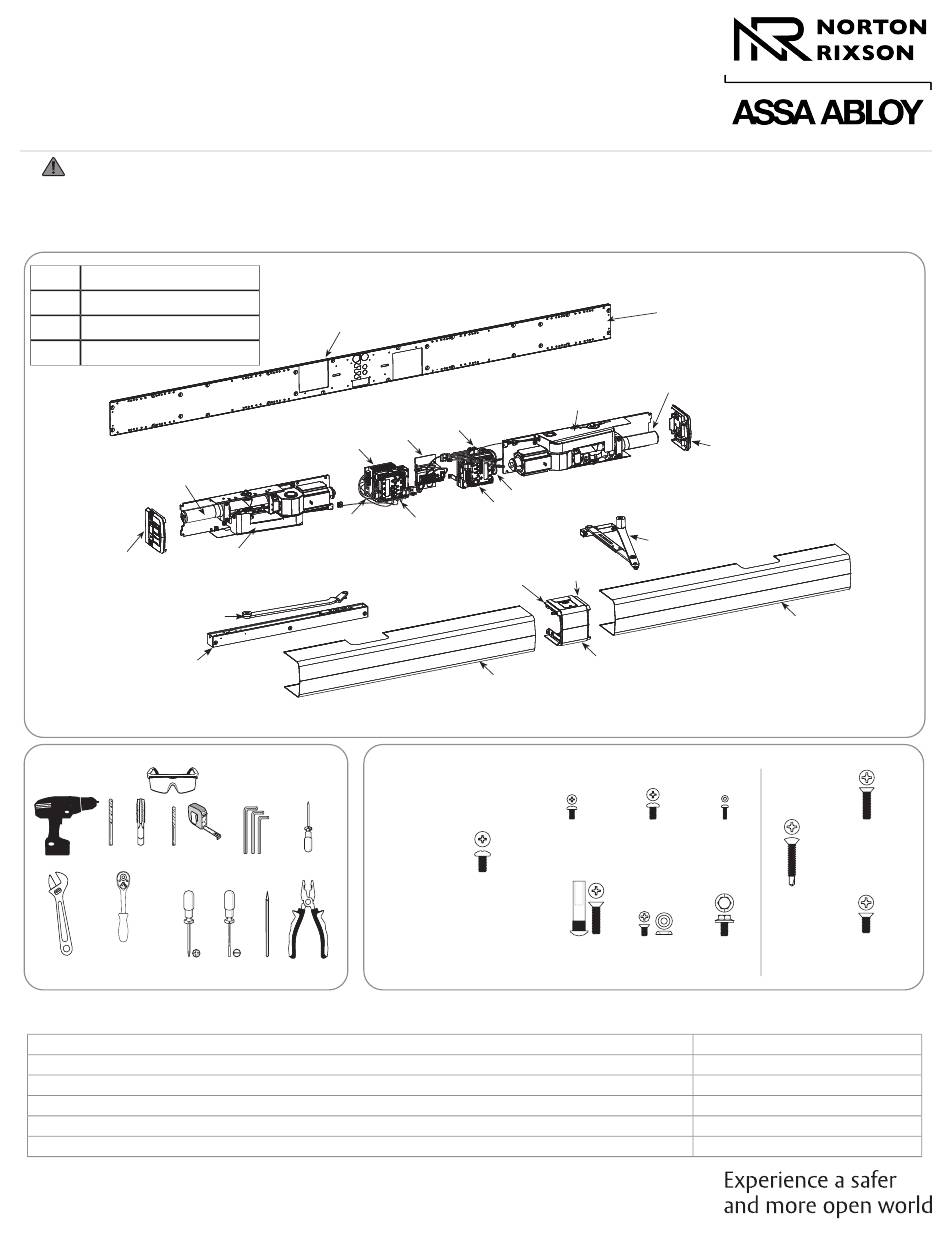

D6001DE-R Series
Double Egress Power Operator
Installation Instructions
WARNING
This product can expose you to lead which is known to the
state of California to cause cancer and birth defects or other
reproductive harm. For more information go to:
www.P65warnings.ca.gov.
Unit Reveal
DER up to 3" (76)
DER1 3" to 4-3/4" (76 to 121)
DER2 4-3/4" to 7-3/8" (121 to 187)
Closer Assembly
(7500LAP)
Operator LAP
End Cap - LH
(6011LAP)
(6001ENLH)
DER (6051-1R)
DER1 and DER2 (6051-2R)
Track Assembly
(7200-1T)
Tools Needed
#7 3/8
1/4-20
Ratchet
with 11/16"
10" or 12" #2 and #3
socket
The table below provides a list of documents associated with this product. These documents are available for download
from www.nortonrixson.com. If additional information or assistance is needed, contact Technical Product Support.
6000 Series Double Door Installation Programming Instructions
Template for installing conduit holes above frame (into wall)
D6001DER Series Template
D6001DER1 Series Template
D6001DER2 Series Template
Copyright © 2023, 2024, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
80-9360-1047-020 Rev 2 01/24
Backplate - LH
(D6001BP-36-LH
D6001BP-38-LH
D6001BP-40-LH
D6001BP-42-LH
Conduit
Assembly
(D6001CON)
Power Module
Sub-assembly
(6001PM)
Power Supply
(6000SUP)
Supplied Fasteners per Operator (2 packs per unit)
Safety Glasses
Set (Inch) Punch
Document Title
Approved 2024-02-13
D6001BP-44-LH
D6001BP-46-LH
D6001BP-48-LH)
Operator LAP
Power Module
Sub-assembly
(6001PM)
Power Supply
(6000SUP)
Inverter
(6000IN)
Inverter
(6000IN)
Union Spacer
(6001US)
Union Spacer
(6001US)
Cover
(D6001COV-36 D6001COV-44
D6001COV-38 D6001COV-46
D6001COV-40 D6001COV-48)
D6001COV-42
NOTE: Fasteners shown
are for this specific installation.
(Fasteners for other installations
are included in the package)
8x
Operator LAP
1/4-20 x 1/2"
13x
Power Module Sub-assembly
Conduit Assembly
End Caps
Union Assembly
#8-32 x 5/16"
1/4-20 x 2"
Pour la version francaise voir NortonRixson.com.
READ AND FOLLOW ALL INSTRUCTIONS.
SAVE THESE INSTRUCTIONS.
Backplate - RH
(D6001BP-36-RH
D6001BP-38-RH
D6001BP-40-RH
D6001BP-42-RH
Closer Assembly
(7500LAP)
(6021LAP)
End Cap - RH
(6001ENRH)
DER and DER1 (6061-1)
DER2 (6071-1)
(D6001COV-36
D6001COV-38
Union Assembly
D6001COV-40
(D6001U)
D6001COV-42
2x 2x
Union Spacer Union Door
#6-32 x 1/4" #4-40 x 3/8"
5x 1x 1x
Track Pull Arm Push Arm
1/4-20 x 1/2" 1/4-20 x 1/2"
Document Number
80-9360-1049-020
80-7360-1043-020
80-7360-1057-020
80-7360-1059-020
80-7360-1061-020
D6001BP-44-RH
D6001BP-46-RH
D6001BP-48-RH)
Cover
D6001COV-44
D6001COV-46
D6001COV-48)
2x
Backplate
1/4-20 x 1"
OR
7x
Backplate
#14 x 1-1/2"
5x
Backplate
1/4-20 x 5/8"
