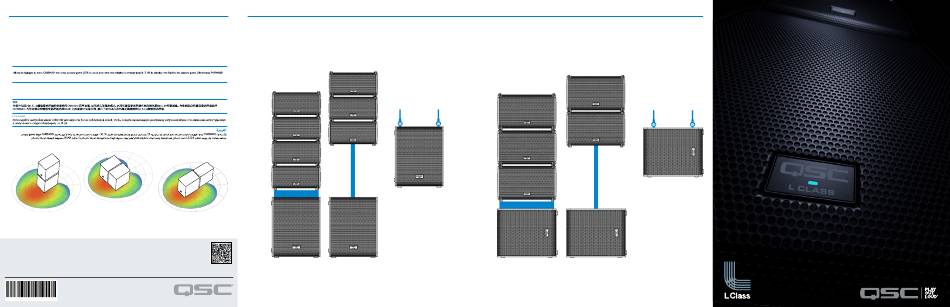

CARDIOID SETUP
Use the
CARDIOID
menu settings with two or more LS118 subwoofers to create a cardioid radiation pattern providing up to
15 dB of rejection behind the subwoofers' arrangement. Select
for the subwoofer(s) facing the audience, and
FORWARD
for the subwoofer(s) facing away from the audience. Here are a few setup examples illustrating how to properly
REAR
deploy two LS118 subwoofers in a cardioid arrangement.
DEUTSCH
Mit den Menüeinstellungen CARDIOID lässt sich mit zwei oder mehr LS1 18 Subwoofer eine Nieren-Abstrahlcharakteristik herstellen, die den rückwärtigen Schall um bis zu 15 dB absenkt. Wählen Sie
FORWARD für die/den auf das Publikum gerichtete(n) Subwoofer und REAR für entgegensetzt ausgerichtete Subwoofer. Hier ein Paar Setup-Beispiele zum korrekten Aufbau eines Cardioid-Arrangements
mit zwei LS1 18 Subwoofern.
FRANCAIS
pour le(s) caisson(s) grave faisant face au public et REAR pour le(s) caisson(s) grave dos au public. Voici quelques exemples de réglages illustrant la manière correcte de déployer les caissons grave LS1 18
dans une configuration cardioïde.
ESPANÓL
Utilice la configuración CARDIOID (cardioide) del menú con dos o más subwoofers LS1 18 para crear un patrón de radiación cardioide con hasta 15 dB de rechazo en la parte posterior de la colocación de
los subwoofers. Seleccione FORWARD (delantero) para aquellos subwoofers orientados hacia el público y REAR (trasero) para los subwoofers que no están orientados hacia el público. Aquí encontrará
algunos ejemplos de configuraciones que ilustran cómo instalar correctamente dos subwoofers LS1 18 en disposición cardioide.
Two LS1 18
side by side
Two LS1 18
Two LS1 18
ground-stacked
back to back
Mailing Address
Telephone
Facsimile
QSC, LLC
Main: +1.714.754.6175
Sales & Marketing: +1.714.754.6174
1675 MacArthur Boulevard
Sales & Marketing: +1.714.957.7100
Customer Service: +1.714.754.6173
Costa Mesa, CA 92626-1468
or toll free (USA only): +1.800.854.4079
Email
USA
Customer Service: +1.714.957.7150
info@qsc.com
or toll free (USA only): +1.800.772.2834
service@qsc.com
For the latest version of this document please go to qsc.com.
TD-001625-02
©2024 QSC, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark Office and other countries.
DEPLOYMENT
Refer to User Manual for deployment safety details for:
•Ground-stacking – using QSC adapter accessories
•Pole mounting – using QSC SP-26 or SP-36 accessory poles
•Suspended/Flying - using 4x M10 eyebolts
L Class Video

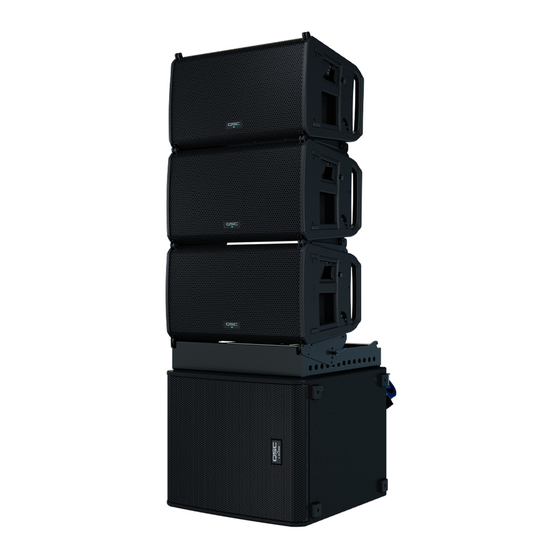

LA108 deployments with LS118 subwoofer
Playlist
LA112 deployments with LS118 subwoofer
Quick Start Guide
LS1 18 Active Subwoofer
