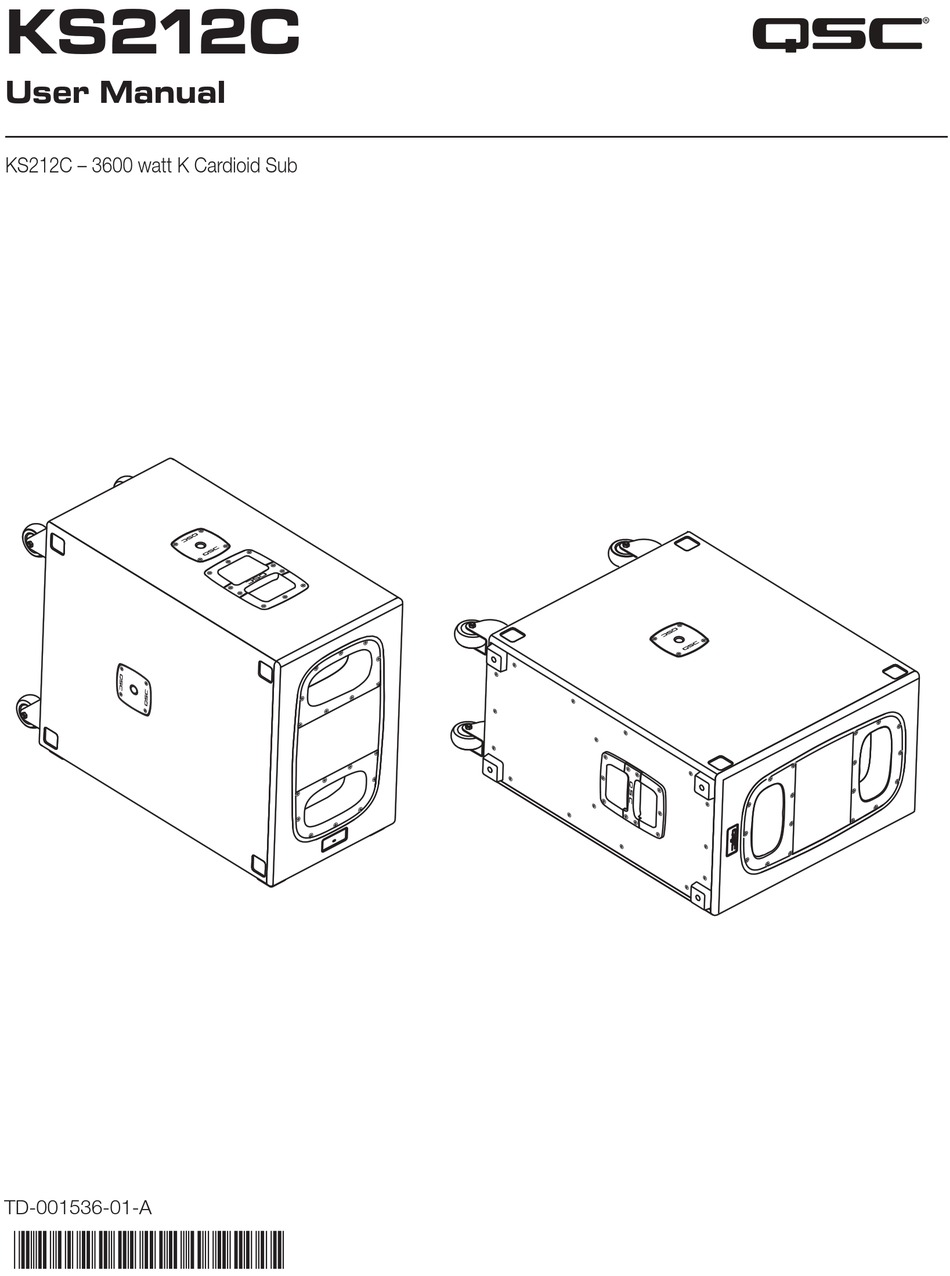

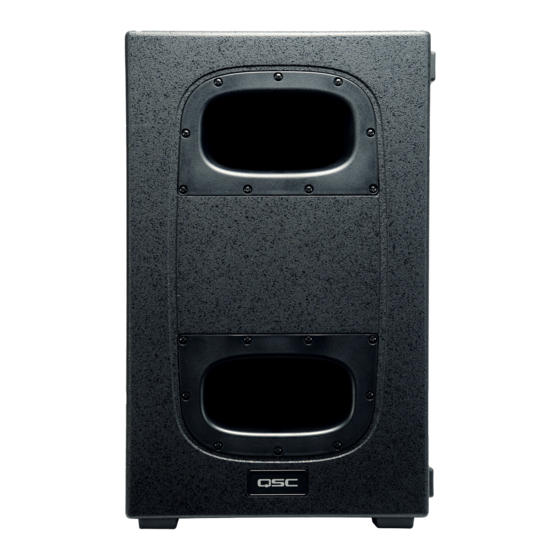

- Page 1 KS212C ® User Manual KS212C – 3600 watt K Cardioid Sub TD-001536-01-A *TD-001536-01*...
-
Page 2: Explanation Of Symbols
EXPLANATION OF SYMBOLS The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death. The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in damage to the equipment that may not be covered under the warranty. -
Page 3: Maintenance And Repair
QSC authorized service station or an authorized QSC International Distributor. QSC is not responsible for any injury, harm or related damages arising from any failure of the customer, owner or user of the apparatus to facilitate those repairs. -
Page 4: Warranty
GB/T 26572. (Replacement and reduction of content cannot be achieved currently because of the technical or economic reason.) Warranty For a copy of the QSC Limited Warranty, visit the QSC website at www.qsc.com Package Contents KS212C Locking White QSC Logo... - Page 5 KS212C Features Bottom Horizontal Top Rear Front Horizontal Bottom — Figure 1 — 1. Rubber-feet stacking-alignment cups 6. Slip-resistant feet - four on the side 2. Four low-noise, heavy-duty casters 7. Cast aluminum handles 3. Amplifier protection rails – protects the amplifier when 8.
- Page 6 The KS212C is powered by a Dual 1800 W Class D amplifier, processed with QSC’s latest DSP technology, and incorporates dual, 12-inch, long-excursion drivers that are each arranged in a sixth-order bandpass chamber. Through complex processing, these mirrored components interact at the rear of the enclosure to produce a desirable cancellation, while simultaneously interacting at the front of the enclosure to produce equally desirable summation.
- Page 7 IMPORTANT!: In order to maintain the acoustic properties of the KS212C subwoofer, do not place the unit closer than 50 mm (20 in) from a wall or other object that would reflect sound waves.
- Page 8 Vertical 26” Pole Vertical 36” Pole WARNING!: The KS212C Subwoofer is not intended or equipped for suspension. Do not suspend the unit. Cooling This is a powered loudspeaker containing an internal power amplifier that produces heat. Allow a minimum of 50 cm (20 in) clearance around the cabinet for convection cooling.
- Page 9 The V-LOCK power cord has a special latching feature to prevent the power cord from being unintentionally removed. The IEC plug and socket are both blue in color so the power cord can be identified as a KS212C loudspeaker cord. If the QSC-supplied cord is lost or damaged, a standard 18-gauge IEC power cord may be used.
-
Page 10: Block Diagram
3. Turn off all audio source devices. NOTE: If a KS212C speaker is being driven from the output of another KS212C unit, it should be turned on after the unit feeding it signal, and turned off before the unit feeding it signal. -
Page 11: Inputs And Outputs
Inputs and Outputs The KS212C amplifier has two separate female combination XLR / 1/4” Phone Jack inputs, and two corresponding PUSH PUSH pre-gain pass-through male XLR outputs. Refer to Figure 9 1. SIG LED – When illuminated (green), it indicates a signal is present for Input A and/or B. -
Page 12: Display Introduction
KS212C Menu The KS212C loudspeakers provide a multi-function digital display for control and selection of loudspeaker functions including scenes, crossover, and delay. Display Introduction 1. Home Screen – Displays the equipment model and the main functionality headings. Light background KS212C SUB with black text indicates the item is selected. -
Page 13: Menu Listing
KLA, and KW loudspeakers CROSSOVERS Both of the crossover frequencies are time-aligned with the K.2 Series when the K.2 loudspeaker is pole-mounted over the KS212C and the front edges of the KS212C and K.2 Series loudspeakers are parallel. DELAY Select the DELAY setting DELAY 1.50 ms... -
Page 14: Back View
Dimensions 15.3 in 24.6 in 389 mm 624.5 mm Back View Front View 15.3 in 15.3 in 389 mm 389 mm — Figure 16 — TD-001536-01-A... - Page 15 CE, WEEE, UL, China RoHS, RoHS II, FCC Class B Included Accessories: 4 x Low-Noise, Heavy-Duty Casters 36.6-inch (930 mm) long, 35 mm diameter, Speaker Pole Optional Accessories: KS212C-CVR Cover, KS LOC Lock-Out Cover. SP-16X Extension Pole NOTE: Specifications subject to change without notice. TD-001536-01-A...
- Page 16 E-mail: info@qsc.com service@qsc.com © Copyright 2017, QSC, LLC, QSC® is a registered trademark of QSC, LLC, “QSC” and the QSC logo are registered with the U.S. Patent and Trademark Office. All trademarks are the property of their respective owners. http://patents.qsc.com. TD-001536-00-A...
- Page 17 KS212C QUICK START GUIDE...
- Page 18 PANEL IDENTIFIERS...
- Page 19 Displays menus and settings Indicates that signal is present Parallel (Thru) connection A/B IN on the associated input Push to exit or go back GAIN Adjusts the (sensitivity) Power switch Rotate to select a sub-menu of the input or to adjust a value AC power inlet (locking) For connection of line level Push to load a value for...
- Page 20 SYSTEM HOOKUP K10.2 K10.2 Stereo Subwoofer and Tops THRU TouchMix ™ Power Phones Cue / Monitor Aux 3/4 Right Left TouchMix ™ K8.2 K8.2 Power Phones Cue / Monitor Aux 3/4 Right Left THRU THRU...
- Page 21 MENU MAP Push to exit or go back 2 Push to load a value for adjustment 3 Rotate to select a sub-menu or to adjust a value Русский Deutsch Français Español 中文 Drücken, um den Appuyer pour quitter Pulse para salir o Vorgang zu beenden ou revenir en arrière volver atrás...
- Page 22 3600 WATT ACTIVE CARDIOID SUBWOOFER © 2018 QSC, LLC, all rights reserved. QSC, the QSC logo, and TouchMix are registered trademarks of QSC, LLC in the U.S. Patent and Trademark qsc.com/ks other trademarks are the property of their respective owners. 0529-05/2018...
- Page 23 • Rugged painted wood enclosure for long Cardioid Subwoofer Energy Dispersion life and lasting durability The KS212C keeps “Bass in its Place” with a single-box cardioid • Deployment in either vertical or horizontal solution that produces an amazing 15 dB more output at the front than positions with M20 speaker pole fittings...
- Page 24 QSC, LLC. 1675 MacArthur Boulevard Costa Mesa, CA 92626 USA. ©2017 QSC, LLC. All rights reserved. QSC and the QSC logo are registered trademark s of QSC, LLC in the U.S. Patent and Trademark Office and other countries.
