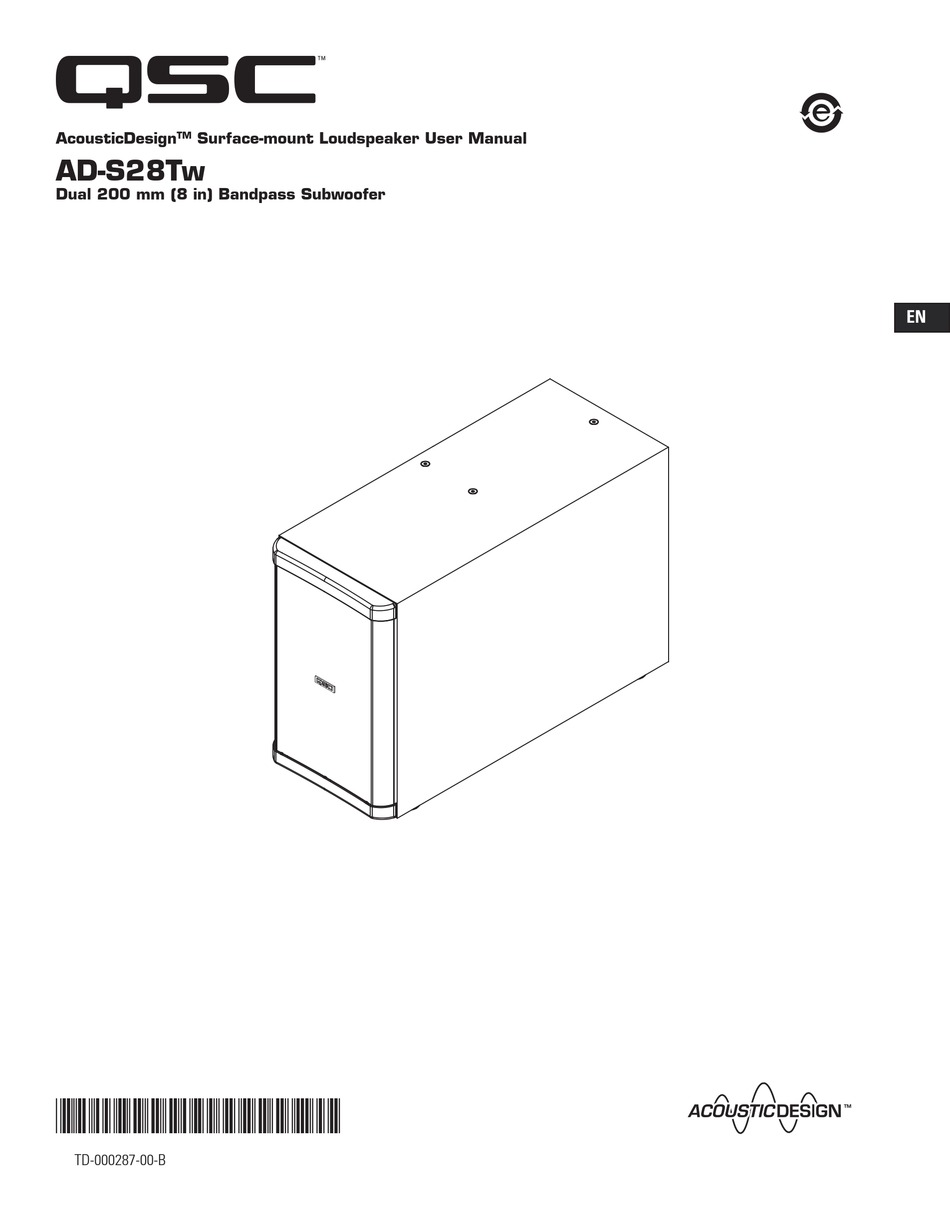

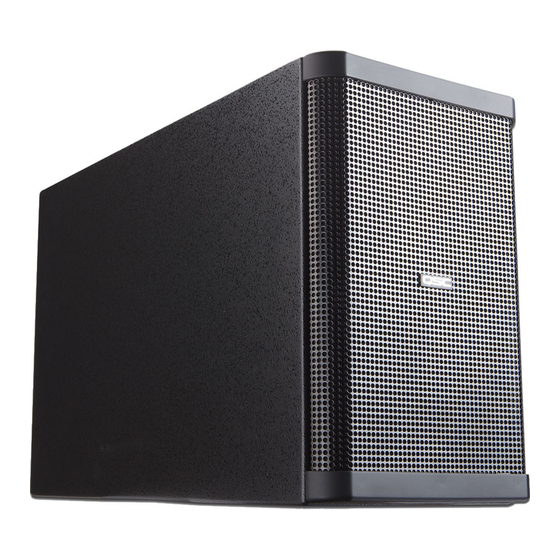

- Page 1 AcousticDesign Surface-mount Loudspeaker User Manual AD-S28Tw Dual 200 mm (8 in) Bandpass Subwoofer *TD-000287-00-A* TD-000287-00-B...
-
Page 2: Important Safety Precautions
(USA only; other countries, see your dealer or distributor) Disclaimer QSC Audio Products, LLC is not liable for any damage to amplifiers or any other equipment that is caused by negligence or improper installation and/or use of this loudspeaker product. - Page 3 1 - Marine grade plywood enclosure, painted 2 - ABS grille endcaps 3 - Steel grille with foam backing 4 - Rotatable QSC logo badge 5 - Integrated M6 suspension points 6 - Input cup with rotating door (see detail)
-
Page 4: Installation Options
The AD-S28Tw has been designed for installation flexibility. The subwoofer may be mounted using a number of different suspension techniques, as well as being easily shelf or floor mounted. The QSC logo on the grille is rotatable to accommo- date horizontal or vertical orientation. While low frequency products do not have directional dispersion characteristics, all of the sonic energy produced by this subwoofer exits the cabinet through the port due to the ported bandpass design. - Page 5 Once the subwoofer is secured in position, the QSC logo can be rotated if desired. If the logo is difficult to rotate the first time, a tool may be required. A small flat-head screw driver is recommended. Gently work the tool between the logo badge...
- Page 6 Any unused attachment point can be used as a safety/seismic secondary attachment. Attach an eyebolt to an available at- Suspending the Subwoofer Using Eyebolts and tachment point according to the section of the manual titled: Shear Plates . Be sure to leave less than 12 in (300 mm) of slack in the secondary attachment cable. the safety/seismic secondary attachment must be secured to structure that is capable of supporting the weight of the subwoofer and must be connected using load rated hardware.
- Page 7 The locations of the eyebolts were designed to suspend the subwoofer using the fewest number of attachment points. Where possible there are only three attachment points to be used. These points are located so that the triangle they form “encloses” the center of gravity and the subwoofer will balance with all three points suspended. In some cases, one or more of the attachment points is not on a cabinet side that is facing up.
- Page 8 Once the subwoofer is secured in position, the QSC logo can be rotated if desired. If the logo is difficult to rotate the first time, a tool may be required. A small flat-head screw driver is recommended. Gently work the tool between the logo badge and the grille to allow rotation.
-
Page 9: Specifications
3 - Maximum input power tested in accordance with IEC recommendations; 50 Hz to 20 kHz band limiting, 6 dB signal crest factor. Specifications are subject to change without notice. For detailed information, visit QSC’s web site at http://www.qscaudio.com or call us at 1-800-854-4079 (toll free USA only) - Page 10 AD-S28tw Dimensions 50 mm (1.9) 574 mm (22.6) 394 mm (15.5) 10 mm (0.4) 125 mm (4.9) 251 mm (9.9) 404 mm (15.9) 109 mm (4.3) 114 mm (4.5) 254 mm (10.0) 288 mm (11.3) 574 mm 603 mm 404 mm (22.6) (22.75) (15.9)
- Page 11 AD-S28tw Yoke Dimensions 18 mm (0.7) 400 mm (15.75) 28 mm (1.1) 203 mm (8.0) 13 mm (0.5) 64 mm (2.5) 127 mm (5.0) 405 mm (15.9)
- Page 12 (714) 754-6174 Customer Service FAX (714) 754-6173 World Wide Web: www.qscaudio.com E-mail: info@qscaudio.com service@qscaudio.com QSC Audio Products, LLC 1675 MacArthur Boulevard Costa Mesa, California 92626 USA ©2009, “QSC” and the QSC logo are registered with the U.S. patent and Trademark Office.
