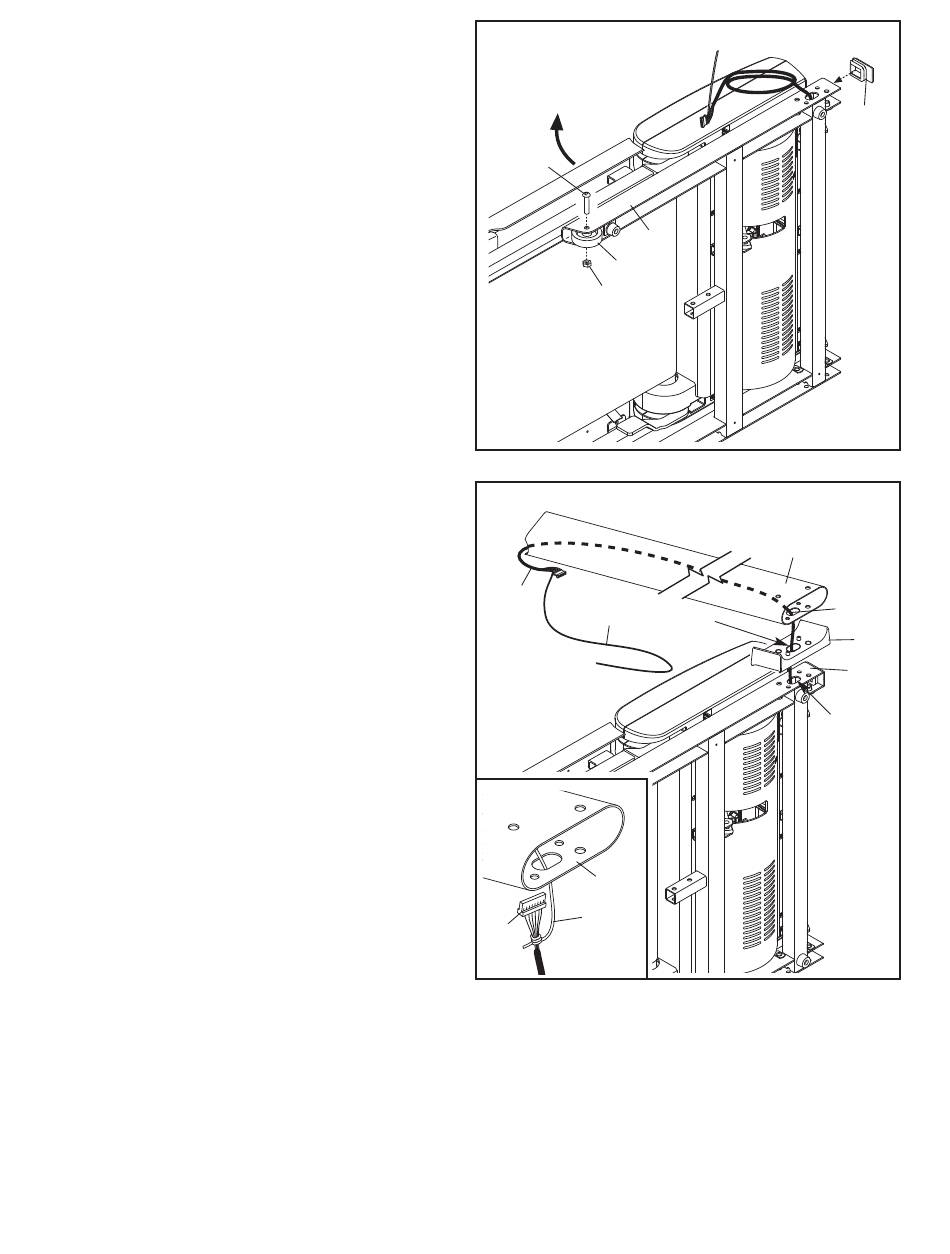

3. Attach a Wheel (96) to the Base (95) with the
3/8" x 2" Bolt (8) and the 3/8" Nut (10) that you
removed in step 1. Do not overtighten the Nut;
the Wheel must turn freely.
Press a Base Cap (89) into the Base (95).
4. Identify the Right Upright (85) and the Right
Upright Spacer (91), which are marked with
"Right" stickers. Align the oval hole in the Right
Upright Spacer with the oval hole in the Base
(95). If the holes do not line up, turn the Right
Upright Spacer and try again.
Insert the Upright Wire (87) through the Right
Upright Spacer (91) as shown. Set the Right
Upright Spacer on the Base (95).
Have a second person hold the Right Upright
(85) near the Base (95). See the inset drawing.
Tie the wire tie in the Right Upright securely
around the end of the Upright Wire (87). Then,
pull the other end of the wire tie until the Upright
Wire is routed completely through the Right
Upright.
