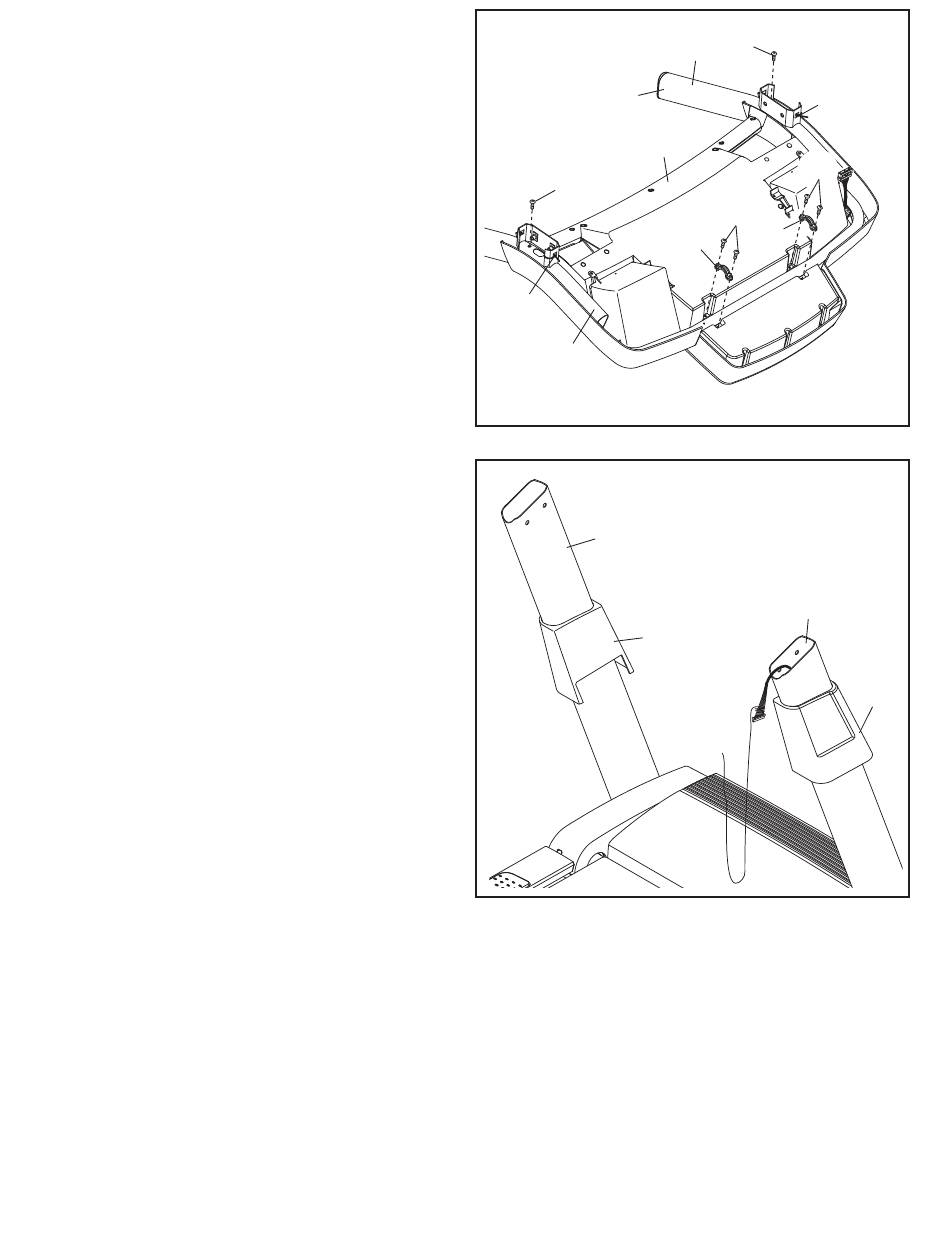

11. Attach the handrail assembly (E) to the console
assembly (D) with two #8 x 3/4" Washer Head
Screws (2). Start both Washer Head Screws,
and then tighten them. Be careful not to
overtighten the Washer Head Screws.
Attach a Console Clamp (105) to the console
assembly (D) with two #8 x 1" Screws (107).
Start both Screws, and then tighten them. Be
careful not to overtighten the Screws. Attach
the other Console Clamp (105) in the same way.
Remove the wire ties from the Handrails (82,
83). If necessary, press the 5/16" Cage Nuts
(38) back into place.
12. Slide the Left Upright Cover (80) onto the Left
Upright (84).
Slide the Right Upright Cover (86) onto the
Right Upright (85).
11
E
2
38
82
12
84
12
2
83
38
D
107
107
105
105
85
80
86
