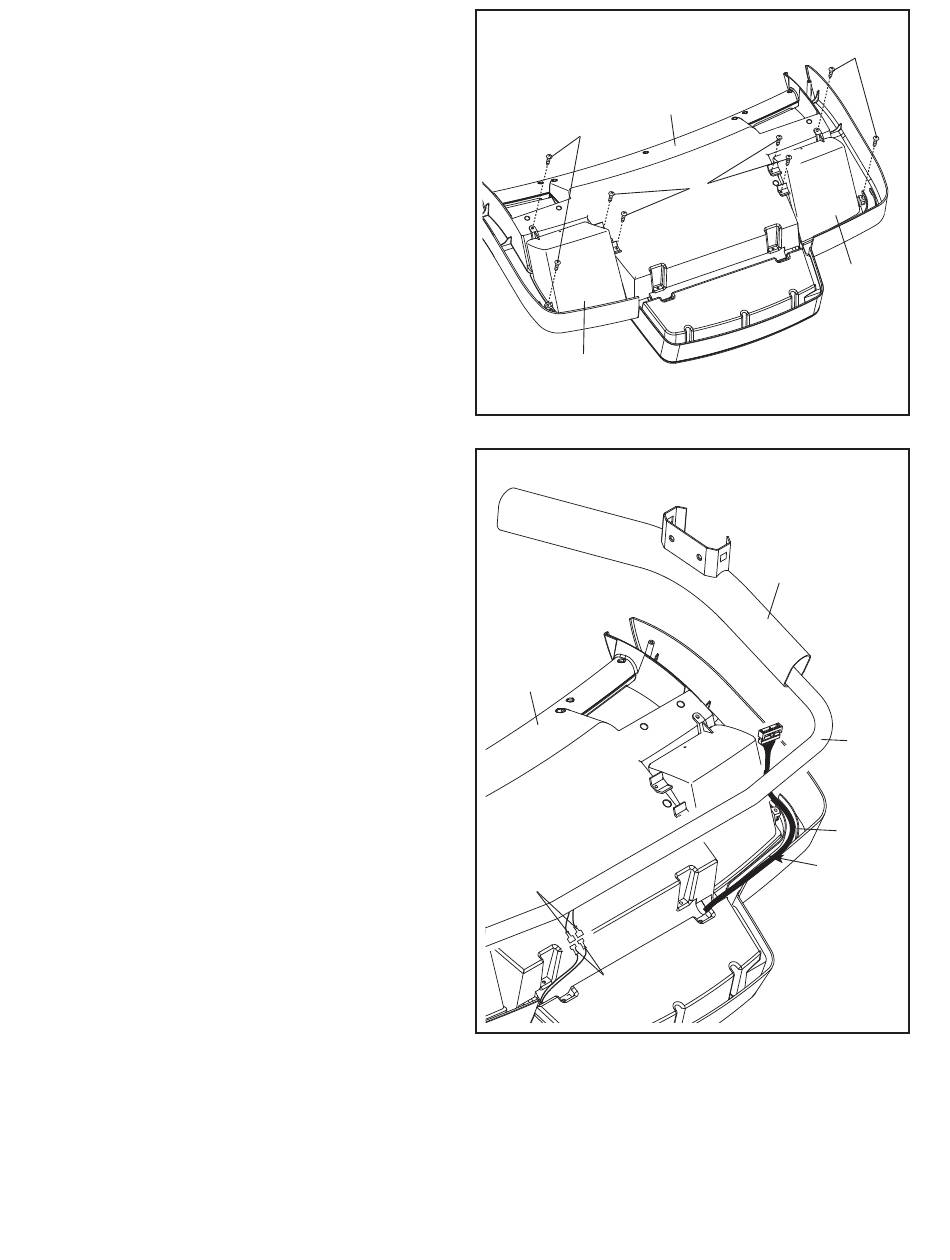

9. Set the console assembly (D) face-down on a
soft surface to avoid scratching the console.
Attach the Left Accessory Tray (103) with four
#8 x 1/2" Screws (3). Start all four Screws,
and then tighten them.
Attach the Right Accessory Tray (104) in the
same way.
10. With the help of a second person, hold the
handrail assembly (E) upside-down near the
console assembly (D). Connect the Console
Ground Wires (6) in the handrail assembly to
the ground wires in the console assembly.
Insert the console wire (F) into the track in the
console assembly (D).
Insert the Console Ground Wires (6) into the
hole in the console assembly (D) as you set the
handrail assembly (E) in the console assembly.
Make sure that the console wire (F) stays in
the track. Be careful not to pinch any wires.
9
3
103
10
D
6
Ground
Wires
11
D
3
104
E
F
Track
3
102
