Seating Matters KIDZ PHOENIX Operation Manual & Product Specification page 12

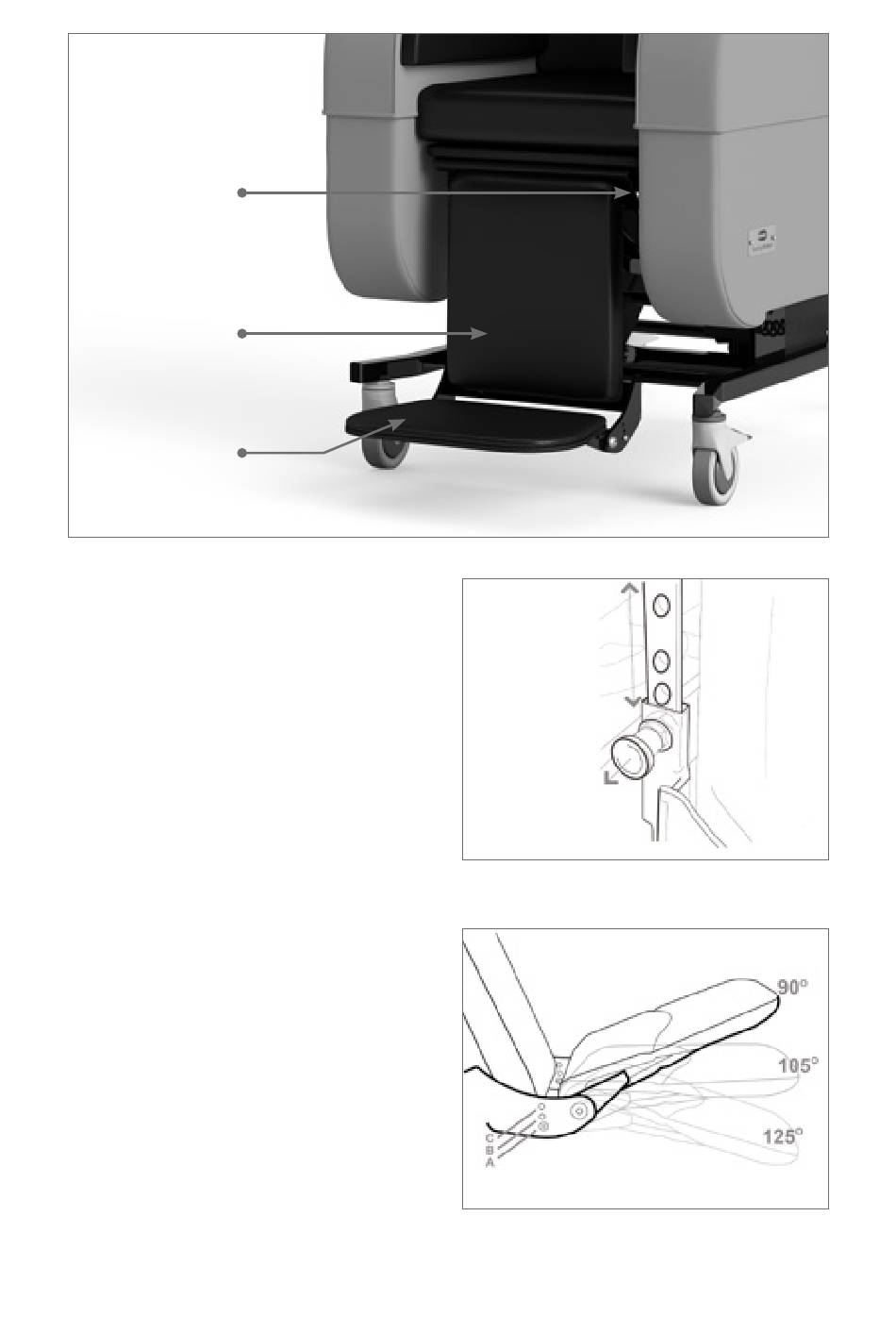

Manual Lever to
elevate leg rest
Elevating
Leg Rest
Footplate
• Leg elevation:
the angle of the elevating leg rest, the
User or Patient must ensure there are
no objects in the immediate environment
that could obstruct the leg rest elevation
or come into contact with the Patient's
legs. Using the manual lever located
under the front of the seat, move the leg
rest until it is in the required position
and allow the release lever to move to
its relaxed position. In powered options,
use the handset control to move the leg
rest until it is in the required position and
release the button. Ensure that only the
weight of the Patient's legs are placed on
this leg rest. (See page 14 for motorised
elevation instructions).
• Footplate height:
be adjusted in height by pulling out the
spring plungers, located on each
side and sliding it up and down on the
glide rail. (fig.4a) When the spring
plungers are released, they will catch
into the nearest hole immediately below
the pins. The foot plate can also be
removed by dropping it off the bottom
of the chair.
10
Before changing
The foot plate can
www.seatingmatters.com
Footplate height adjustment
Footplate angle adjustment
(fig.4)
(fig.4a)
(fig.4b)
