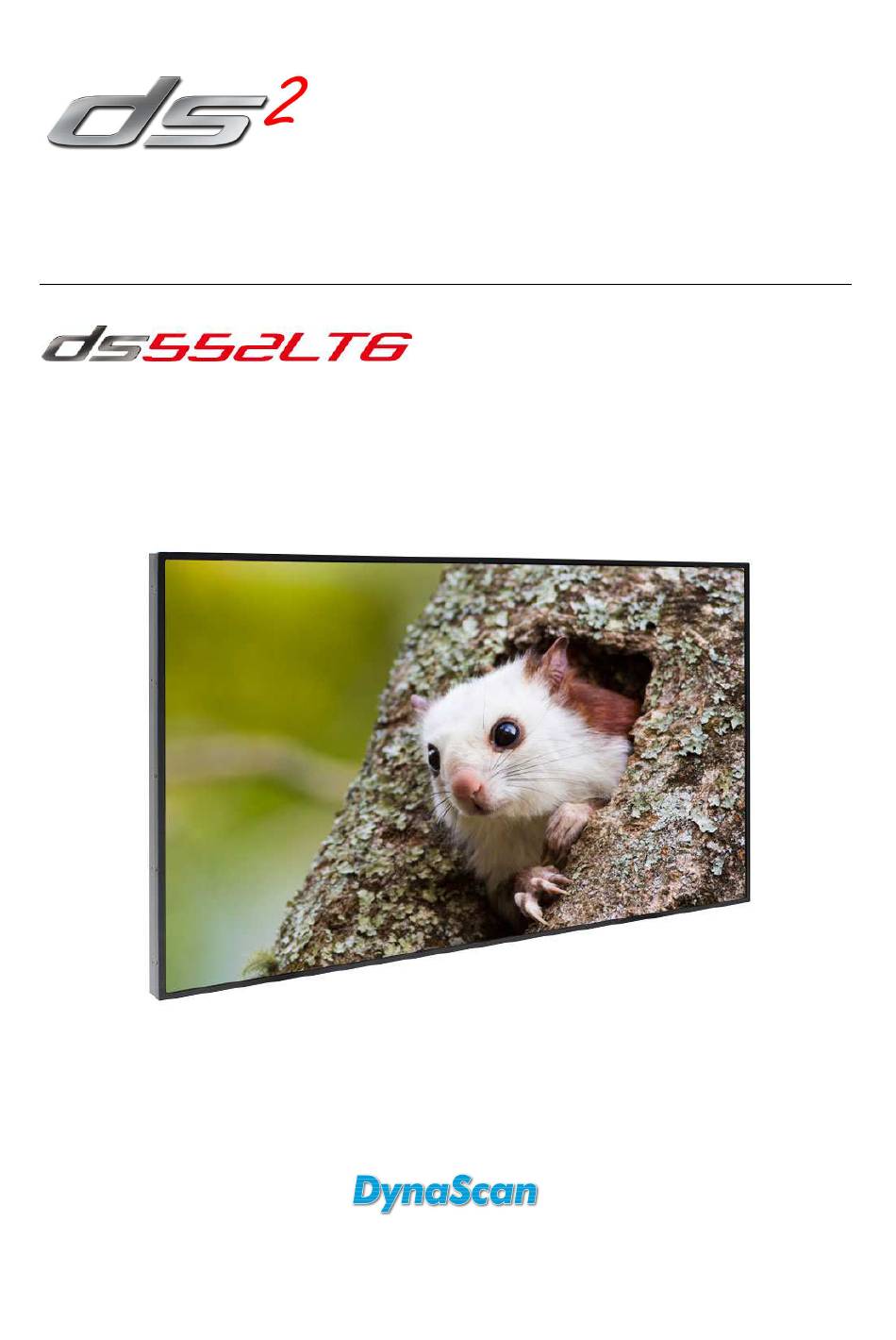

- Page 1 Professional LCDs User Manual Version 2.01 The use of diagrams and illustrations in the manual are for reference only. The actual product may be different. Product design and specifications are subject to change without notice...
-
Page 2: Table Of Contents
Contents Limited Warranty ............................ 2 Material Contents Declaration ........................ 3 Recycling and Energy Information ......................3 Declaration of Conformity ........................4 Safety Precautions ..........................5 Safety Precautions ..........................5 Important Safety Information ........................6 Getting Started ............................7 Contents ............................. 7 Installing and Replacing Remote Control Batteries ................ -
Page 3: Limited Warranty
Non-DynaScan manufacturers, suppliers, or publishers may provide their own warranties. DynaScan and its Authorized Service Providers are not liable for any damage to or loss of data or other information stored on any media, or any non-DynaScan product or part not covered by this warranty. -
Page 4: Material Contents Declaration
SJ/T-11363-2006 and EU 2005/618/EC. Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations. -
Page 5: Declaration Of Conformity
IEC 60950-1:2005 (2 Edition) +Am1:2009 EN 60950-1:2006+A11:2009+Am1:2010+A12:2011 EN 55022:2010+AC:2011 Class A ITE EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2008 EN 55024:2010 EN 61000-4-2:2009 EN 61000-4-3:2006+A1:2008+A2:2010 EN 61000-4-4:2012 EN 61000-4-5:2006 EN 61000-4-6:2009 DynaScan Technology, EN 61000-4-8 :2010 Inc. EN 61000-4-11:2004 DS552LT6 User Manual 4... -
Page 6: Safety Precautions
Safety Precautions CAUTION Do not install the display in a wet environment or place anything filled with liquid such as a vase or beverage on top of it. Do not install the display near flammable objects such as gasoline or other volatile liquids. -
Page 7: Important Safety Information
Handle the LCD with care. Save the packaging materials for transport later. • Clean the LCD backside at least once a month for dust and other particles. Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: •... -
Page 8: Getting Started
Getting Started Contents Confirm that the accessories below are shipped along with the display. If any item is missing, please contact your dealer. The color and shape of the accessories may vary with the products. • • DS552LT6 Professional LCD. Power cable x1 pc. -
Page 9: Installation
When mounting on a wall or hanging from a ceiling • A wall mount is not included in the accessory. Please purchase a VESA Standard wall mount to secure the LCD. DynaScan is not responsible for the damage caused by using non-standard wall mounts. •... - Page 10 DS552LT6 Unit: mm Orientation • When used in the portrait orientation, the LCD should be rotated clockwise when looking at the front of the display such that the left edge becomes the top edge. Portrait mode: Rotate the set clockwise 90° (mandatory) Installation Location •...
- Page 11 Single display Video wall When hanging from a ceiling • Ensure that the ceiling is strong enough to support the LCD and it accessories. Earthquake, unexpected vibration and other external forces should be taken into consideration when evaluating the ceiling strength. •...
-
Page 12: Wall Mounting
• A wall mount is not included. Please purchase a VESA Standard wall mount to secure the LCD. DynaScan is not responsible for damages caused by using non-standard wall mounts. • Verify that the mounting location can support the weight of the LCD before installation. -
Page 13: Connecting Multiple Displays For Video Wall Applications
Note: The maximum number of DS552LT6’s in a Video Wall is 15x15. Note: The DynaScan “Display Manager” application is required to be installed on the PC in order to use the External Control feature. Note: The Daisy Chain Setting (video wall function) only supports a resolution of 1920 x 1080 (1080p). - Page 14 Video Source or DP (OUT) RS-232 (OUT) DVI (OUT) or DP (IN) RS-232 (IN) DVI (IN) DISPLAY 1 DVI (OUT) RS-232 (OUT) RS-232 (IN) DVI (IN) DISPLAY 2 DVI (OUT) RS-232 (OUT) RS-232 (IN) DVI (IN) DISPLAY 3 DS552LT6 User Manual 13...
-
Page 15: Connector Positions
Connector Positions AC (OUT) AC (IN) Power Switch RJ-45(IN) RS-232 (IN) DVI (IN) DP (IN) DVI (OUT) RS-232 (OUT) DS552LT6 Unit: mm DS552LT6 User Manual 14... -
Page 16: Input / Output Terminals
Input / Output Terminals ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ⑫ RJ-45 (IN): RJ45 network input connection for remote control from PC. RS-232 (IN): RS232C network input connection for remote control from PC. DVI (IN): Connect the DVI-D output of a PC, or the HDMI output of an AV device via a DVI-HDMI cable. -
Page 17: Operating Instructions
Operating Instructions Powering On/Off the Display To turn on/off the display, press the power switch on the back of the display as shown in the diagram below. NOTE: The remote control only works when the power switch is ON. Using the Remote Control When using the remote control, aim the remote at the IR receiver on the display. - Page 18 DS552LT6 Unit: mm DS552LT6 User Manual 17...
- Page 19 Using the Remote Control (cont.) Color and shape may vary by model. ITEM DESCRIPTION POWER Power On / Off MENU OSD On / Off Move the cursor up or change the setting of selected item. LEFT Exit the current selection. RIGHT Select the highlighted item.
-
Page 20: Using The Rear Panel Controls
Using the Rear Panel Controls ITEM DESCRIPTION MENU OSD On / Off, Power On / Off. Move the cursor up or change the setting of selected item. DOWN Move the cursor down or change the setting of selected item. LEFT Exit the current selection. -
Page 21: Navigating The On Screen Display (Osd) Menu
Navigating the On Screen Display (OSD) Menu Press the MENU button on either the rear panel control or remote control to show the OSD. Use the navigation arrows to select and adjust the menu items. ITEM 1 ITEM 2 DEFAULT DESCRIPTION Set the Main input to display. - Page 22 ITEM 1 ITEM 2 DEFAULT DESCRIPTION Set the clock. Current Time HH:MM Note: The internal clock will continue to function when the power is turned off. Power Control Turn on / off automatic power schedule Time Timer function. Power On Time HH:MM Set turn-on time.
- Page 23 ITEM 1 ITEM 2 DEFAULT DESCRIPTION To turn On / Off the auto brightness adjustment. Note: If the AUTO BRIGHTNESS is off, the screen brightness will remain at HIGH LEVEL brightness value. If the AUTO BRIGHTNESS is on (Auto), the display brightness adjusts according to the ambient Auto Brightness light.
- Page 24 Note: When disabled, the remote control IR Control function can be enabled again from the control panel on the display or through the DynaScan “Display Manager” application. Advance When in Power Off Mode, RS-232 controls do not function. Only [Main Power Switch]...
- Page 25 ITEM 1 ITEM 2 DEFAULT DESCRIPTION Resolution 1920x1080 Input resolution. Model DS552LT6 The display’s model. Serial Number The display’s serial number. It will enter into protection mode when the display internal temperature is over heat. Mode 0 = Brightness 50%. Over Heat Mode 1 = Brightness 25%.
-
Page 26: Converting From Dynamic To Static Ip
Converting from Dynamic to Static IP Turn the DHCP setting OFF. Type the IP address settings in the IP address, Subnet mask, and Default gateway boxes. Advance > Remote Control Turn the Network to RS232 (a→b), and then back again to Network (b→c). The static IP settings have been successfully changed. -
Page 27: Specifications
Specifications MODEL DS552LT6 LCD Panel Size 54.64 inches Native Resolution 1920 x 1080 Brightness 5500 cd/m² (Typ.) 3,000:1 (Static) Contrast Ratio PANEL 10,000,000:1 (Dynamic) Response Time 9 ms (Typ.) Viewing Angle 178°/ 178° Life Time 100,000 hrs (Typ.) Panel Surface AR 1.5%, 2H Power Supply Internal... -
Page 28: Input Mode
Input Mode Active Resolution Refresh Rate Pixel Rate Aspect Ratio H Pixels V Lines 60 Hz 25.175 MHz 50 Hz 27 MHz 59.94 Hz 27 MHz 60 Hz 40 MHz 1024 60 Hz 65 MHz 50 Hz 1280 74.25 MHz 16:9 60 Hz 1280... -
Page 29: Pin Assignments
Pin Assignments Digital RGB Output (DVI-D): DVI PIN ASSIGNMENT OF DVI CONNECTOR TX2- TX1- TX0- TX2+ TX1+ TX0+ Shield (TX2 / TX4) Shield (TX1 / TX3) Shield (TX0 / TX5) DDC-Serial Clock +5V power Shield (TXC) DDC-Serial Data Ground TXC+ Hot plug detect TXC- Digital RGB Input (DVI-D): DVI... -
Page 30: Rs-232 Output
RS-232 Output PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 RS-232 Input PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 DS552LT6 User Manual 29... -
Page 31: Troubleshooting
Cannot control the display • Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. DS552LT6 User Manual 30... -
Page 32: Network User Interface
Network User Interface DS552LT6 User Manual 31... - Page 33 ITEM DESCRIPTION Power Power On / Off. Input Source Set the Main input to display. (DP(Display Port) or DVI) Failover Set the Failover input to display. (DP(Display Port) or DVI) Temperature Select the color temperature. (User, D93, D65 and D55). Adjust the red light level.
- Page 34 Enable/disable the remote control for Menu. Note: When disabled, the remote control function can be enabled again IR Control from the control panel on the display or through the DynaScan “Display Manager” application. When in Power Off Mode, RS-232 controls do not function. Only [Main...
- Page 35 Copyright © DynaScan Technology, Inc. All Rights Reserved.
